Technical specifications
- Schuko design
- Material: Rubber
- Material quality: Other
- Halogen-free: Yes
- Protection class (IP) IP67
- With straight plug
- Connection technology: Screw terminal
- Suitable for earthing contact pin: Yes
- Colour: green
- RAL number: 6031
- Number of poles: 3
- Nominal voltage: 250 V
- Nominal current: 16 A
- For ""difficult conditions""" (according to VDE): No.
- Product type
3-way connector
- Nominal voltage
250 V
- Factory colour
Green
IP67
- Type
EARTHING CONTACT
- Connection
Screw terminal
- Material (details)
Rubber
- Number of pins
3
- Operating voltage
250 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147357 Bals Elektrotechnik 7400 3-way connector 250 V Green IP67
User & Safety Instructions
User & Safety Instructions 3147357 Bals Elektrotechnik 7400 3-way connector 250 V Green IP67
Description

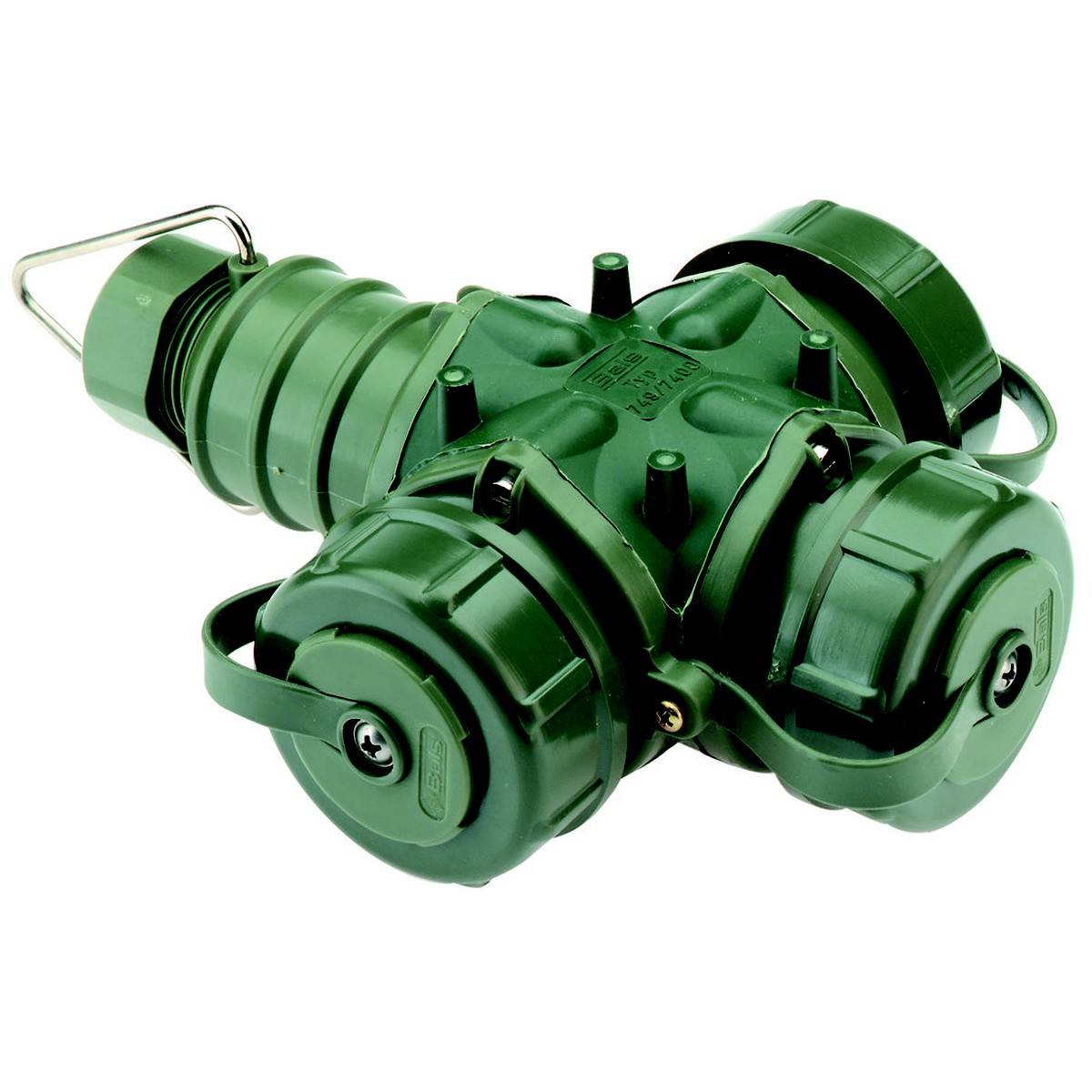

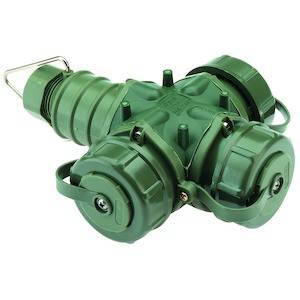

Earthing contact three-way coupler, TN design
16A 3P (2P+PE) 250V (250V~) IP67
Frequency AC
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 2.5 sqmm
Housing material: Rubber
Connection technology: Cap screw terminal
Cable entry: With cable gland
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9

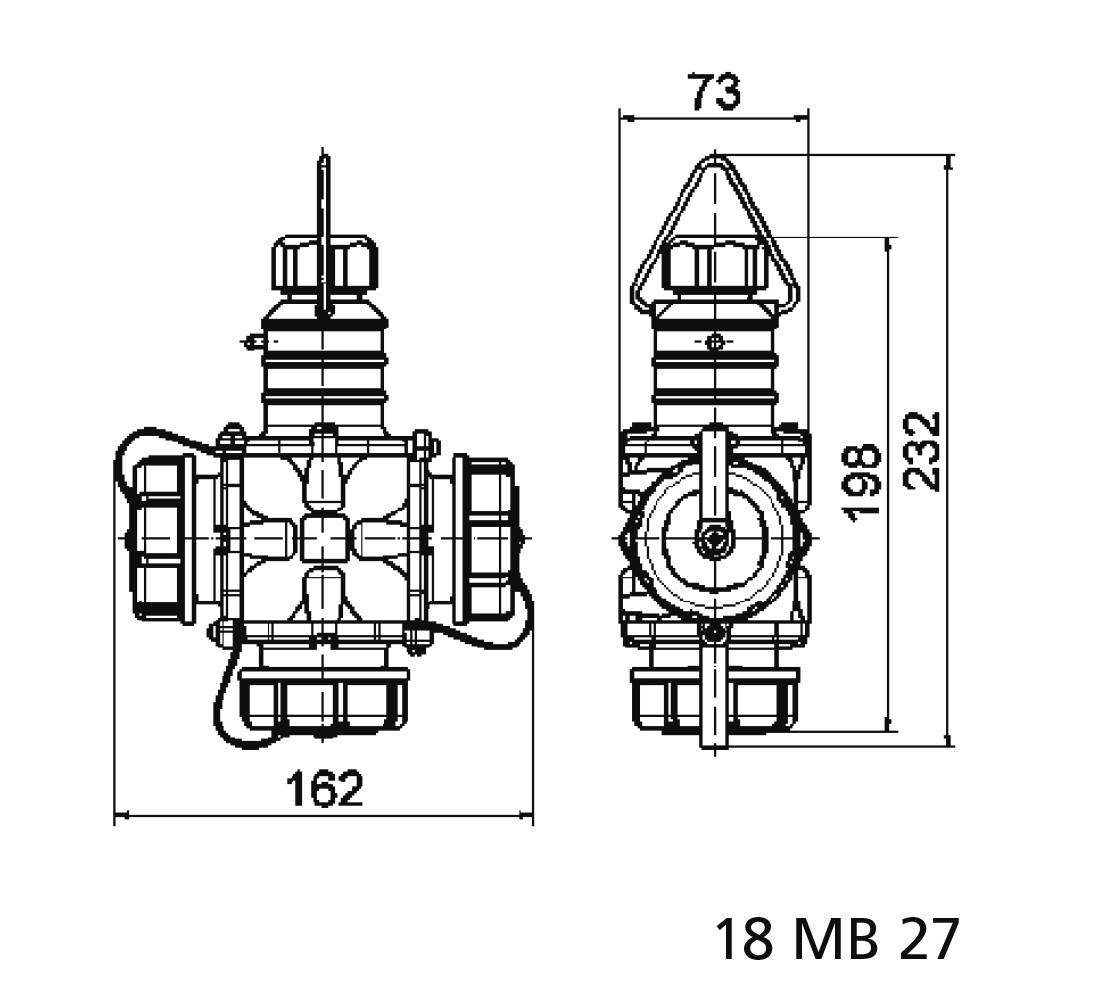

Device height: 232 mm, device width: 162 mm, device depth: 73 mm
Halogen-free: Yes
Other technical features: For cables with a maximum diameter of 18 mm, cable entry is done by means of a cable gland, the bayonet cover is attached to the housing with a fastening strap, with a sealing cap
VG type no.: VG 96926 04 ES, supply no.: 5935-12-123-0129
This text is machine translated.
