Bals Elektrotechnik 831 831 CEE accessories 5-pin 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal current: 16 A
- Number of pins: 5
- Protection class (IP) IP67
- Product type
CEE accessories
- Cores
5
IP67

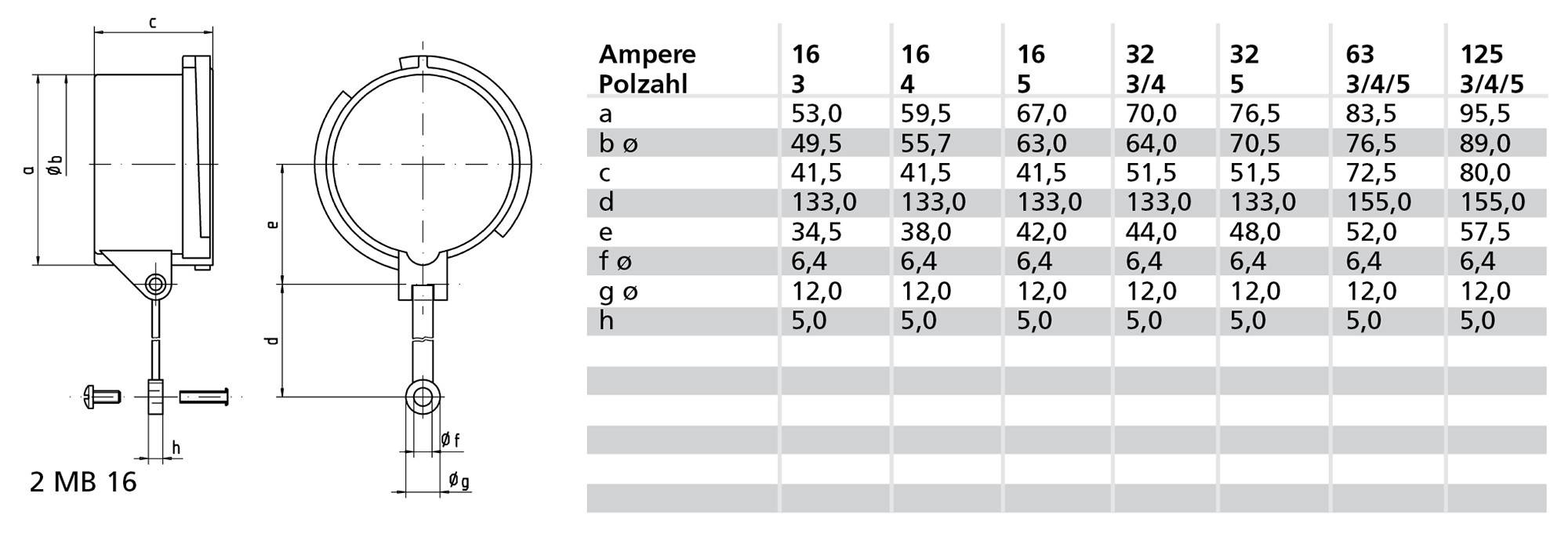

- Dim
(L x W x H) 41.5 x 76 x 86 mm
- Length
41.5 mm
- Width
76 mm
- Height
86 mm
- Content
1 pc(s)
- Number of pins
5
16 A
IP67
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146891 Bals Elektrotechnik 831 831 CEE accessories 5-pin 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146891 Bals Elektrotechnik 831 831 CEE accessories 5-pin 1 pc(s)
Description

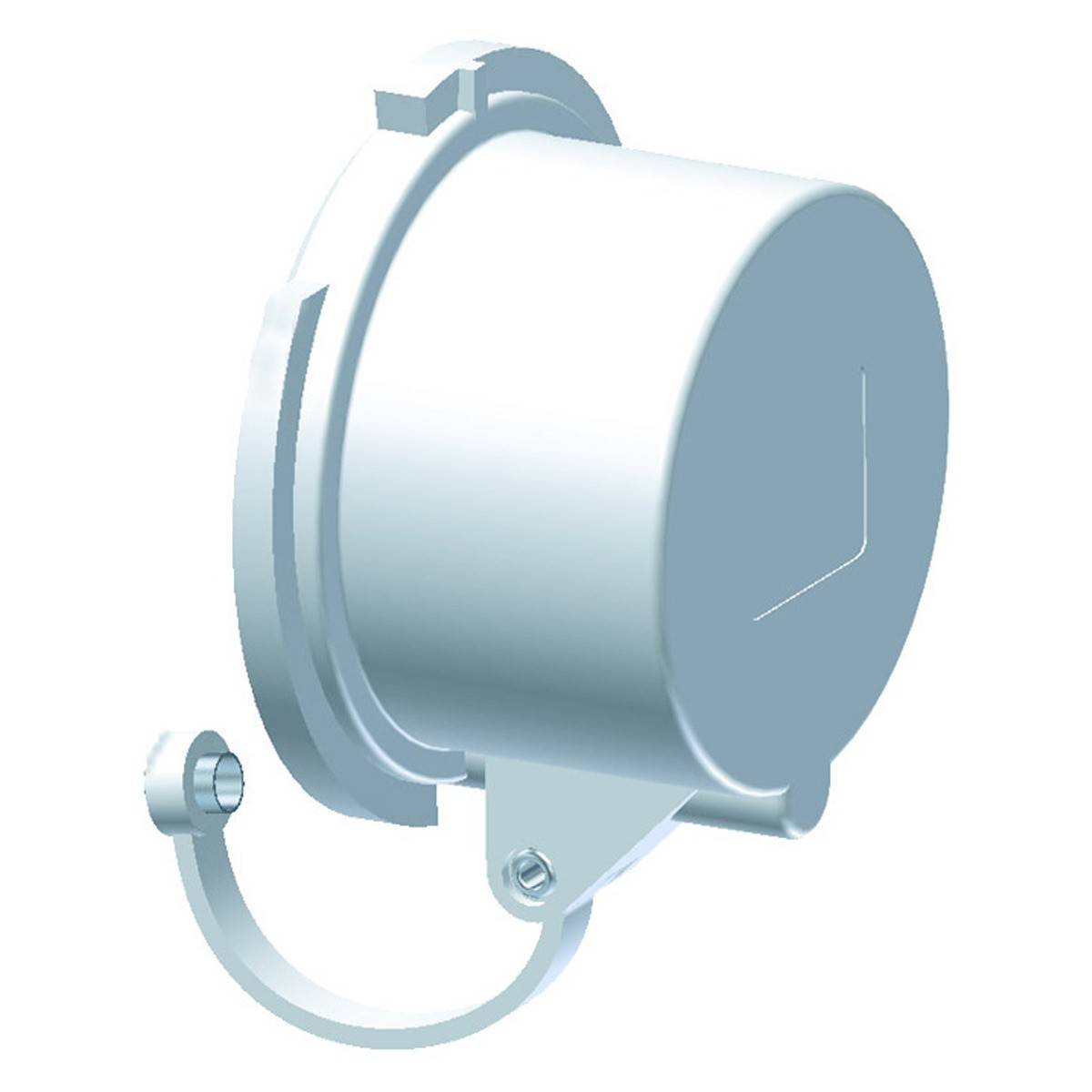

Locking hood
16A 5P (3P+N+PE) IP67
Technical color: Grey RAL 7035
Housing material: Polyamid
Device height: 86 mm, device width: 76 mm, device depth: 41.5 mm
Other technical characteristics: With fastening strap for cover or cover hood
This text is machine translated.
16A 5P (3P+N+PE) IP67
Technical color: Grey RAL 7035
Housing material: Polyamid
Device height: 86 mm, device width: 76 mm, device depth: 41.5 mm
Other technical characteristics: With fastening strap for cover or cover hood
This text is machine translated.
