1/3
Bals Elektrotechnik 832 832 CEE accessories 5-pin 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal current 32 A
- Number of pins: 5
- Protection class (IP) IP67
- Product type
CEE accessories
- Features
Hook-and-loop
- Cores
5
IP67
- Dim
(L x W x H) 51.5 x 89 x 98 mm
- Length
51.5 mm
- Width
89 mm
- Height
98 mm
- Content
1 pc(s)
- Number of pins
5
32 A
IP67
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146895 Bals Elektrotechnik 832 832 CEE accessories 5-pin 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146895 Bals Elektrotechnik 832 832 CEE accessories 5-pin 1 pc(s)
Description

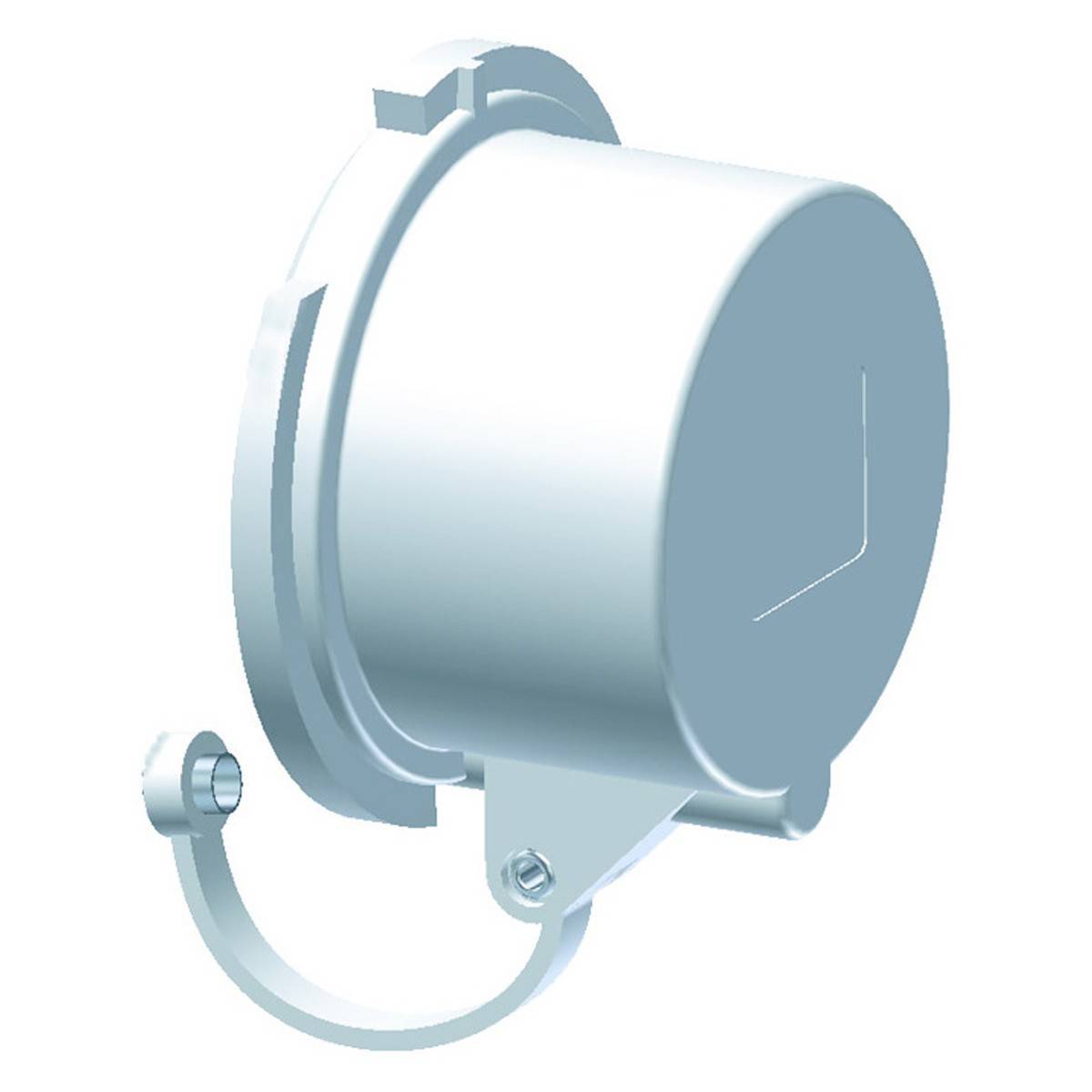

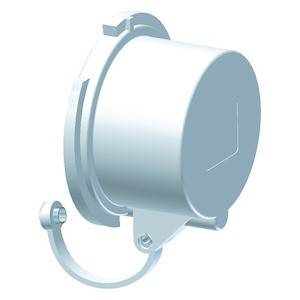

Locking hood
32A 5P (3P+N+PE) IP67
Technical color: Grey RAL 7035
Housing material: Polyamid
Device height: 98 mm, device width: 89 mm, device depth: 51.5 mm
Other technical characteristics: With fastening strap for cover or cover hood
This text is machine translated.
32A 5P (3P+N+PE) IP67
Technical color: Grey RAL 7035
Housing material: Polyamid
Device height: 98 mm, device width: 89 mm, device depth: 51.5 mm
Other technical characteristics: With fastening strap for cover or cover hood
This text is machine translated.
