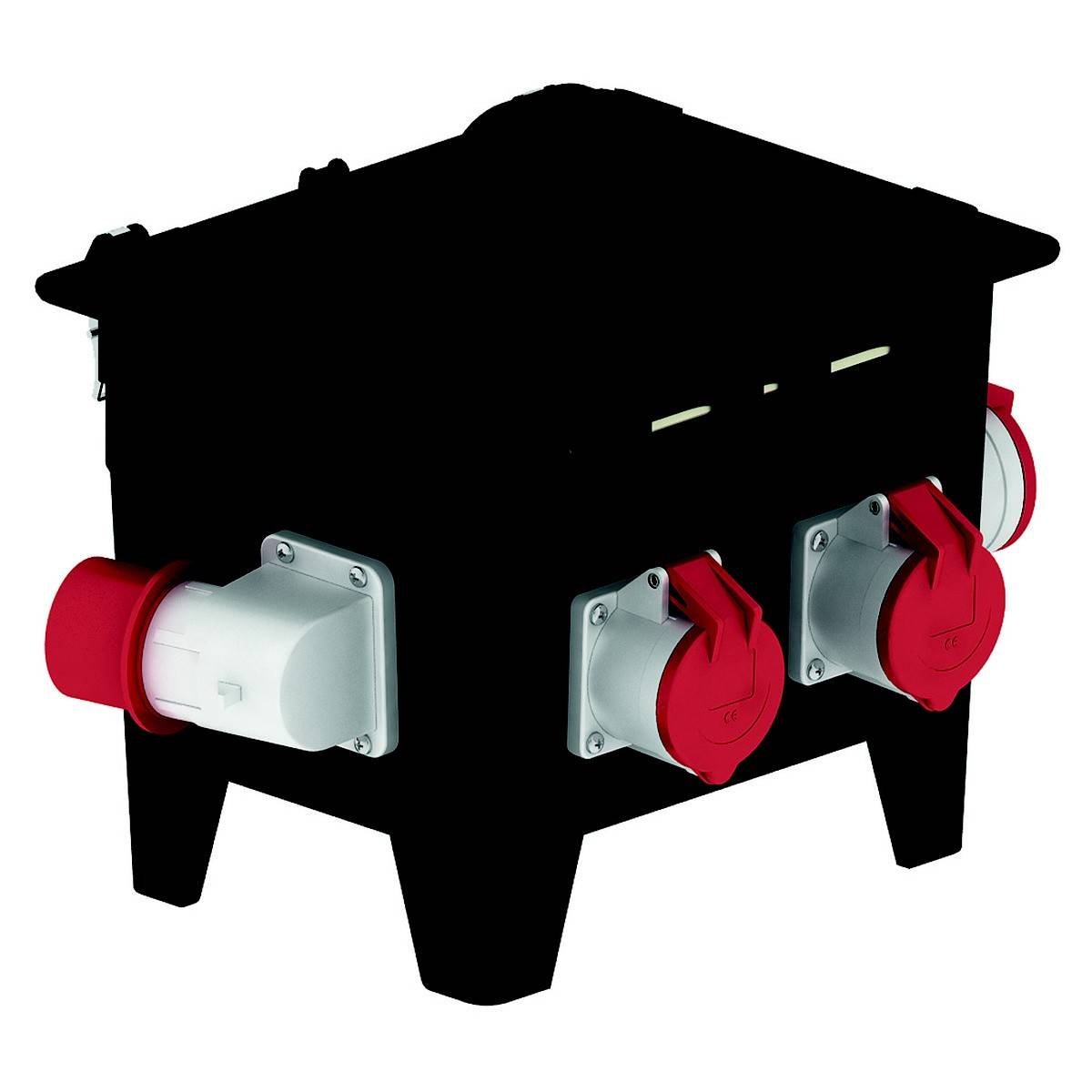

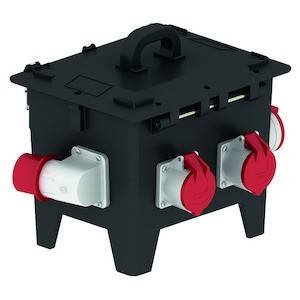

Bals Elektrotechnik CEE power distributor 521828 521828
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE-socket - 32 A: 4x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 4
- D0-fuse protection
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Number of circuit breakers: 4
- Material of housing: Rubber
- Feed/connection options: Connector
- Type of mains connection: CEE 32 A.
- Cable length 0 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 355 mm
- Width 320 mm
- Depth: 245 mm
- Product type
CEE power distributor
- No. of CEE connectors
4
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 32 A)
- No. of PG sockets
4
- Nominal output voltage
400 V
IP44
- Cable length
0 m
- Factory colour
Black
- Dim
(W x H x D) 320.00 x 355.00 x 245.00 mm
- Width
320.00 mm
- Height
355.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
245.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146804 Bals Elektrotechnik CEE power distributor 521828 521828
User & Safety Instructions
User & Safety Instructions 3146804 Bals Elektrotechnik CEE power distributor 521828 521828
Description
Distributor, solid rubber, portable
DIN EN 61439-2 standard
Protection class: IP44
Case:
320 x 245 mm with fold-out housing cover
And quick locks
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 355 mm, device width: 320 mm, device depth: 245 mm
RDF Factor: 0.92
INA 32
Equipment:
4 x earthing contact socket-outlet 16A 230V IP 54
4 x CEE-socket 32A 400V 5P
Security/Protection measure:
4 x D01 1p
1 x FI-circuit breaker 40/0.03A 4p
Cable entry/connection possibility:
CEE-device plug 32A 400V 5p
Additional Information:
Wired as ready to connect.
This text is machine translated.
DIN EN 61439-2 standard
Protection class: IP44
Case:
320 x 245 mm with fold-out housing cover
And quick locks
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 355 mm, device width: 320 mm, device depth: 245 mm
RDF Factor: 0.92
INA 32
Equipment:
4 x earthing contact socket-outlet 16A 230V IP 54
4 x CEE-socket 32A 400V 5P
Security/Protection measure:
4 x D01 1p
1 x FI-circuit breaker 40/0.03A 4p
Cable entry/connection possibility:
CEE-device plug 32A 400V 5p
Additional Information:
Wired as ready to connect.
This text is machine translated.
