Bals Elektrotechnik CEE power distributor 522144 522144
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE-Plug - 32 A: 2X32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- D0-fuse protection
- FI-circuit breaker: Without
- Number of circuit breakers: 2
- Material of housing: Rubber
- Feed/connection options: Connector
- Type of mains connection: CEE 32 A.
- Cable length 0 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 297 mm
- Width 250 mm
- Depth: 210 mm
- Product type
CEE power distributor
- No. of CEE connectors
4
- No. of PG sockets
2
- Nominal output voltage
400 V
IP44
- Factory colour
Black
- Dim
(L x W x H) 210 x 250.00 x 297.00 mm
- Length
210 mm
- Width
250.00 mm
- Height
297.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
210.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147419 Bals Elektrotechnik CEE power distributor 522144 522144
User & Safety Instructions
User & Safety Instructions 3147419 Bals Elektrotechnik CEE power distributor 522144 522144
Description

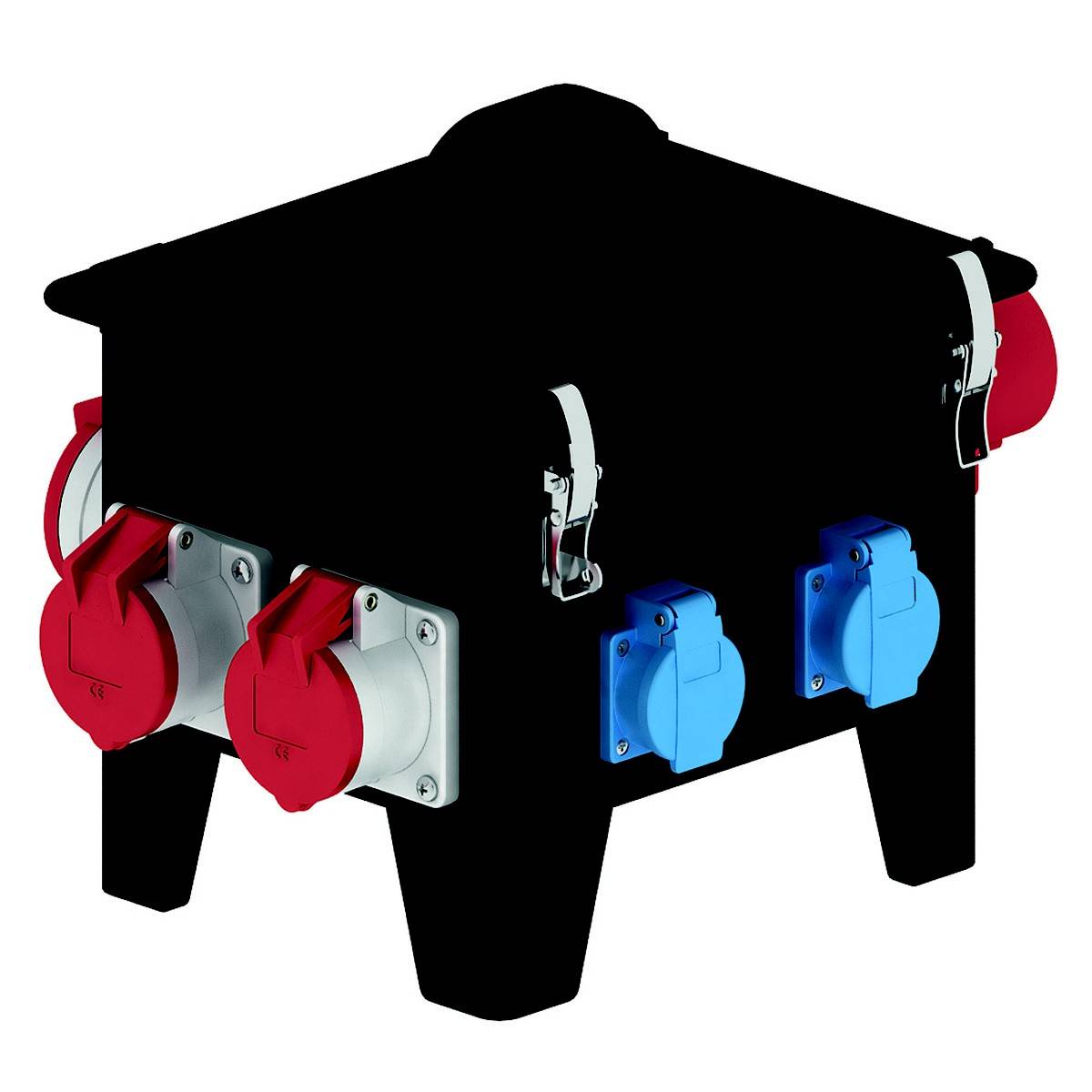

Distributor, solid rubber, portable
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact-resistant solid rubber case with fold-down cover
Housing cover, lockable via V2A snap-in
closures
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 297 mm, device width: 250 mm, device depth: 210 mm
RDF Factor: 1
INA 32
Equipment:
2 x earthing contact socket-outlet 16A 230V IP 54
2 x CEE-socket 16A 400V 5p 6h IP 44
2 x CEE-socket 32A 400V 5p 6h IP 44
Security/Protection measure:
1 x D01 1p
1 x D01 3-pin
Distributor without RCD
Cable entry/connection possibility:
CEE-device plug 32A 400V 5p 6h IP 44
Additional Information:
Wired as ready to connect.
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
