EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 6
- Other fixtures and/or empty spaces: 1
- Protection: LS-switch
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Number of circuit breakers: 4
- Material of housing: Rubber
- Feed/connection options: Connector
- Type of mains connection: CEE 32 A.
- Cable length 0 m
- Handling: Portable
- Protection class (IP) IP54
- Military version: No.
- Colour, black
- Height: 237 mm
- Width 250 mm
- Depth: 210 mm
- Product type
CEE power distributor
- No. of CEE connectors
3
- No. of PG sockets
6
- Nominal output voltage
400 V
IP54
- Factory colour
Black
- Dim
(L x W x H) 210 x 250.00 x 237.00 mm
- Length
210 mm
- Width
250.00 mm
- Height
237.00 mm
- Inputs (CEE power distributor)
CEE phase inverter plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
210.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3163058 Bals Elektrotechnik CEE power distributor 522590 522590
User & Safety Instructions
User & Safety Instructions 3163058 Bals Elektrotechnik CEE power distributor 522590 522590
Description

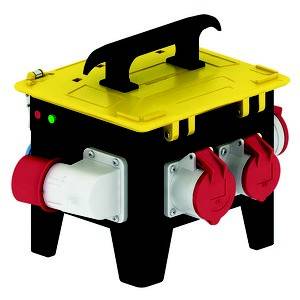

Distributor, solid rubber, portable
DIN EN 61439-2 standard
Protection class: IP54
Case:
Impact-resistant solid rubber case with fold-down cover
Housing cover, lockable via V2A snap-in
Locks in special design
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1021
Device height: 237 mm, device width: 250 mm, device depth: 210 mm
RDF Factor: 0.69
INA 32
Equipment:
6 x earthing contact socket-outlet 16A 230V IP 54
2 x CEE-socket 16A 400V 5p 6h IP 54
1 x CEE-socket 32A 400V 5p 6h IP 54
1 x Rotating field meter with display
Red and green indicator lamp
Security/Protection measure:
3 x C-Automatic 16A 1p
1 x C-Automatic 16A 3-P
1 x FI switch 40/0.03A 4p
Cable entry/connection possibility:
CEE-Flange-device plug 32A 400V 5p 6h IP 44
As phase inverter version
Additional Information:
Wired as ready to connect.
CEE plug-in sockets with screwless, maintenance-free
Quick-Connect connection technology.
Structure according to Z-No. Z131036
This text is machine translated.
