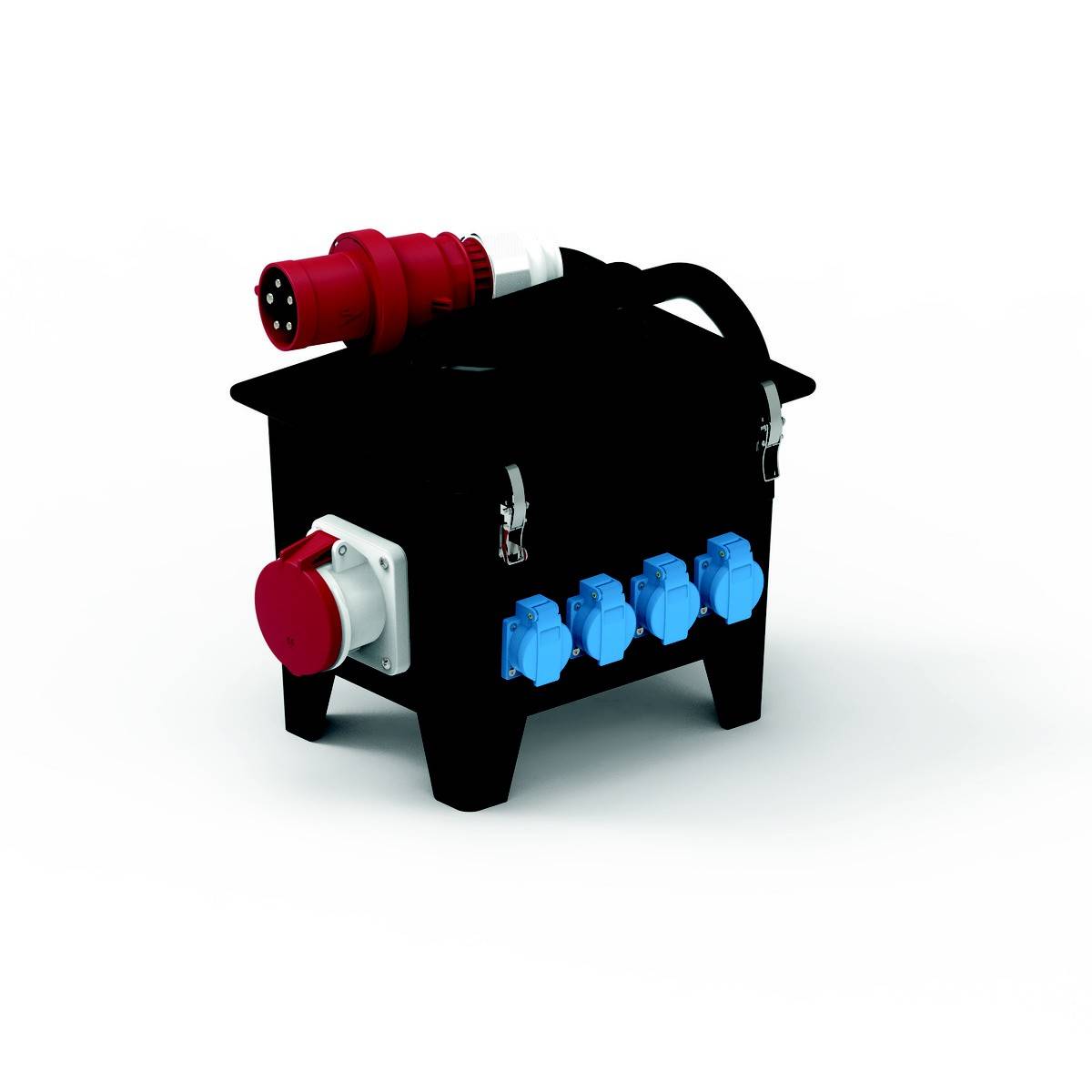

Bals Elektrotechnik CEE power distributor 524446 524446
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: 1x63A5p400V
- CEE socket - 125A: Without
- Number of Schuko sockets: 4
- D0-fuse protection
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Number of circuit breakers: 4
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 63 A.
- Cable length 3 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 355 mm
- Width 320 mm
- Depth: 245 mm
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE plug (5-pin, 63 A)
- Type B
CEE connector (5-pin, 63 A)
- No. of PG sockets
4
- Nominal output voltage
400 V
IP44
- Cable length
3 m
- Cable standard
H07RN-F 5G 10 mm²
- Factory colour
Black
- Dim
(L x W x H) 245 x 320.00 x 355.00 mm
- Length
245 mm
- Width
320.00 mm
- Height
355.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 63 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 63 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
245.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146841 Bals Elektrotechnik CEE power distributor 524446 524446
User & Safety Instructions
User & Safety Instructions 3146841 Bals Elektrotechnik CEE power distributor 524446 524446
Description
Distributor, solid rubber, portable
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact-resistant solid rubber case with fold-down cover
Housing cover, lockable via V2A snap-in
closures
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 355 mm, device width: 320 mm, device depth: 245 mm
RDF Factor: 0.69
INA 63
Equipment:
4 x earthing contact socket 16A 230V IP 44 (7130)
1 x CEE socket 16A 400V 5p 6h IP 44 (13835)
1 x CEE plug 32A 400V 5p 6h IP 44 (13850)
1 x CEE-socket 63A 400V 5p 6h IP 44 (136)
Security/Protection measure:
2 x D01 1p
1 x D01 3-pin
1 x D02 3 pin
1 x FI switch 63/0.03A 4p
Cable entry/connection possibility:
CEE plug 63A 400V 5p 6h IP 44 (2155)
With 3M cable H07RN-F5G10
Additional Information:
Wired as ready to connect.
CEE-device 16-32A with screwless, maintenance-free
Quick-Connect connection technology
This text is machine translated.
