Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 4
- Security: Without
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 16 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 297 mm
- Width 250 mm
- Depth: 210 mm
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 16 A)
- Type B
CEE connector (5-pin, 16 A)
- No. of PG sockets
4
- Nominal output voltage
400 V
IP44
- Cable length
2 m
- Factory colour
Black
- Dim
(L x W x H) 210 x 250.00 x 297.00 mm
- Length
210 mm
- Width
250.00 mm
- Height
297.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
210.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145151 Bals Elektrotechnik CEE power distributor 52638 52638
User & Safety Instructions
User & Safety Instructions 3145151 Bals Elektrotechnik CEE power distributor 52638 52638

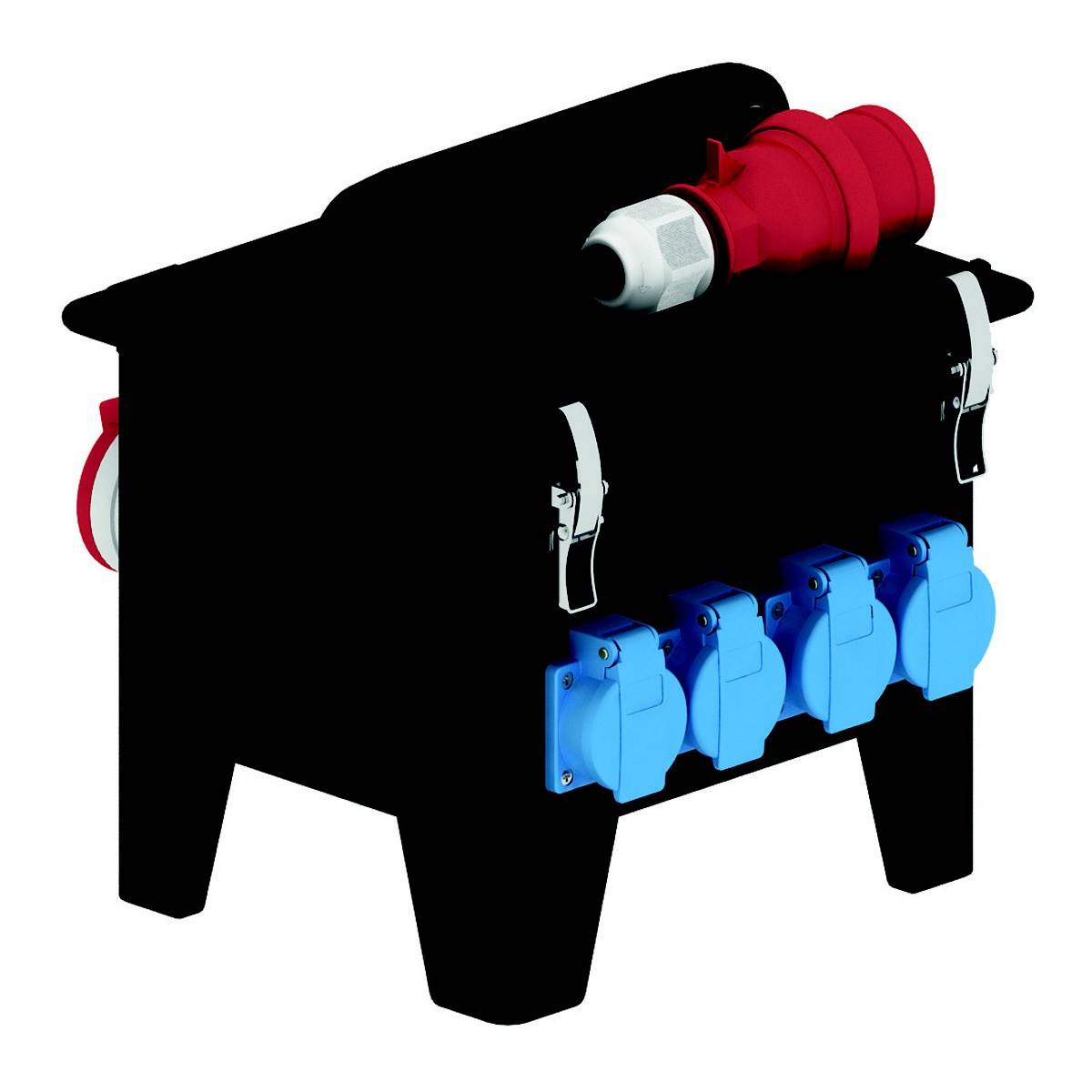

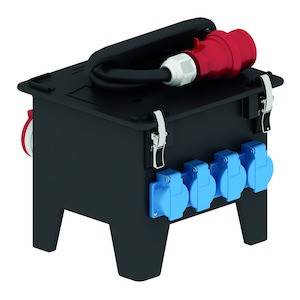

Description
Distributor, solid rubber, portable
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact-resistant solid rubber case with fold-down cover
Housing cover, lockable via V2A snap-in
closures
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 297 mm, device width: 250 mm, device depth: 210 mm
RDF Factor: 1
INA 16
Equipment:
4 x earthing contact socket-outlet 16A 230V IP 54
2 x CEE-socket 16A 400V 5p 6h IP 44
Security/Protection measure:
1 x FI switch 40/0.03A 4p
Cable entry/connection possibility:
CEE-plug 16A 400V 5p 6h IP 44
With 2m cable H07RN-F5G2.5
Additional Information:
Wired as ready to connect.
Structure according to Z-No. Z131015
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact-resistant solid rubber case with fold-down cover
Housing cover, lockable via V2A snap-in
closures
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 297 mm, device width: 250 mm, device depth: 210 mm
RDF Factor: 1
INA 16
Equipment:
4 x earthing contact socket-outlet 16A 230V IP 54
2 x CEE-socket 16A 400V 5p 6h IP 44
Security/Protection measure:
1 x FI switch 40/0.03A 4p
Cable entry/connection possibility:
CEE-plug 16A 400V 5p 6h IP 44
With 2m cable H07RN-F5G2.5
Additional Information:
Wired as ready to connect.
Structure according to Z-No. Z131015
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
