Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 3
- Security: Without
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 16 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 88 mm
- Width 365 mm
- Depth: 120 mm
- Product type

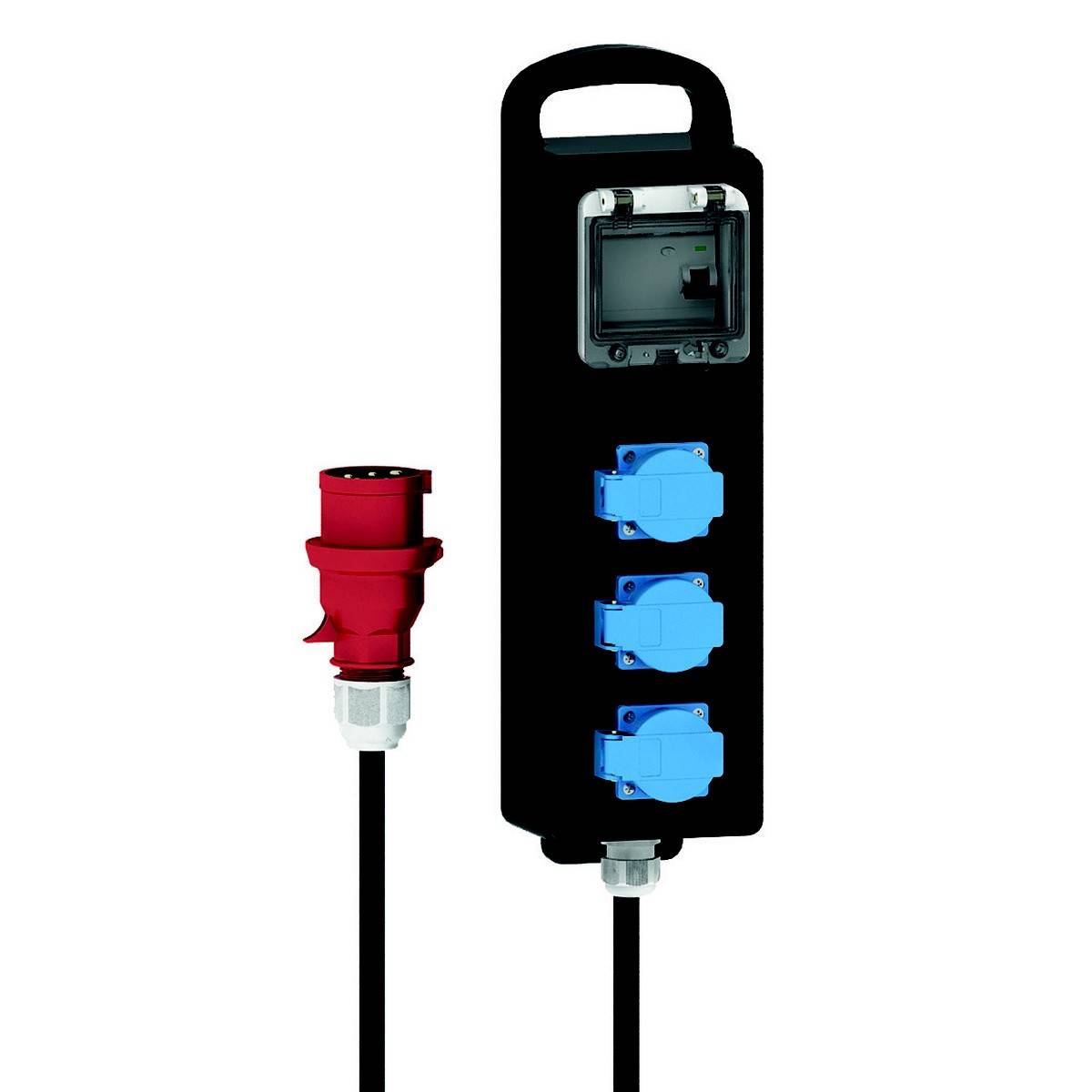

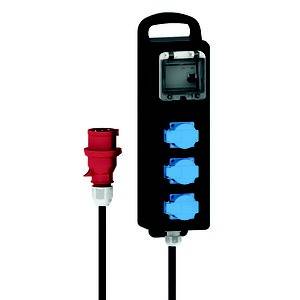

CEE power distributor
- No. of PG sockets
3
- Nominal output voltage
230 V AC
IP44
- Cable length
2 m
- Factory colour
Black
- Dim
(L x W x H) 365 x 365.00 x 88.00 mm
- Length
365 mm
- Width
365.00 mm
- Height
88.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Number of pins
5
- Depth
120.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147349 Bals Elektrotechnik CEE power distributor 5321 5321
User & Safety Instructions
User & Safety Instructions 3147349 Bals Elektrotechnik CEE power distributor 5321 5321
Description
Block distributor
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact resistant solid rubber bar
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 88 mm, device width: 365 mm, device depth: 120 mm
RDF Factor: 0.84
INA 16
Equipment:
3 x earthing contact socket-outlet 16A 230V IP 54
Security/Protection measure:
1 x FI switch 40/0.03A 4p
Cable entry/connection possibility:
CEE-plug 16A 400V 5p 6h IP 44
With 2m cable H07RN-F5G2.5
Additional Information:
Wired as ready to connect.
Structure according to Z-No. Z131127
CEE plug with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
