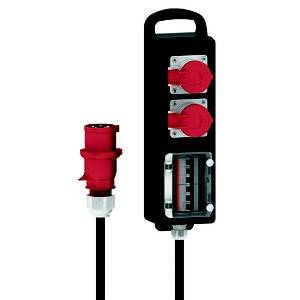

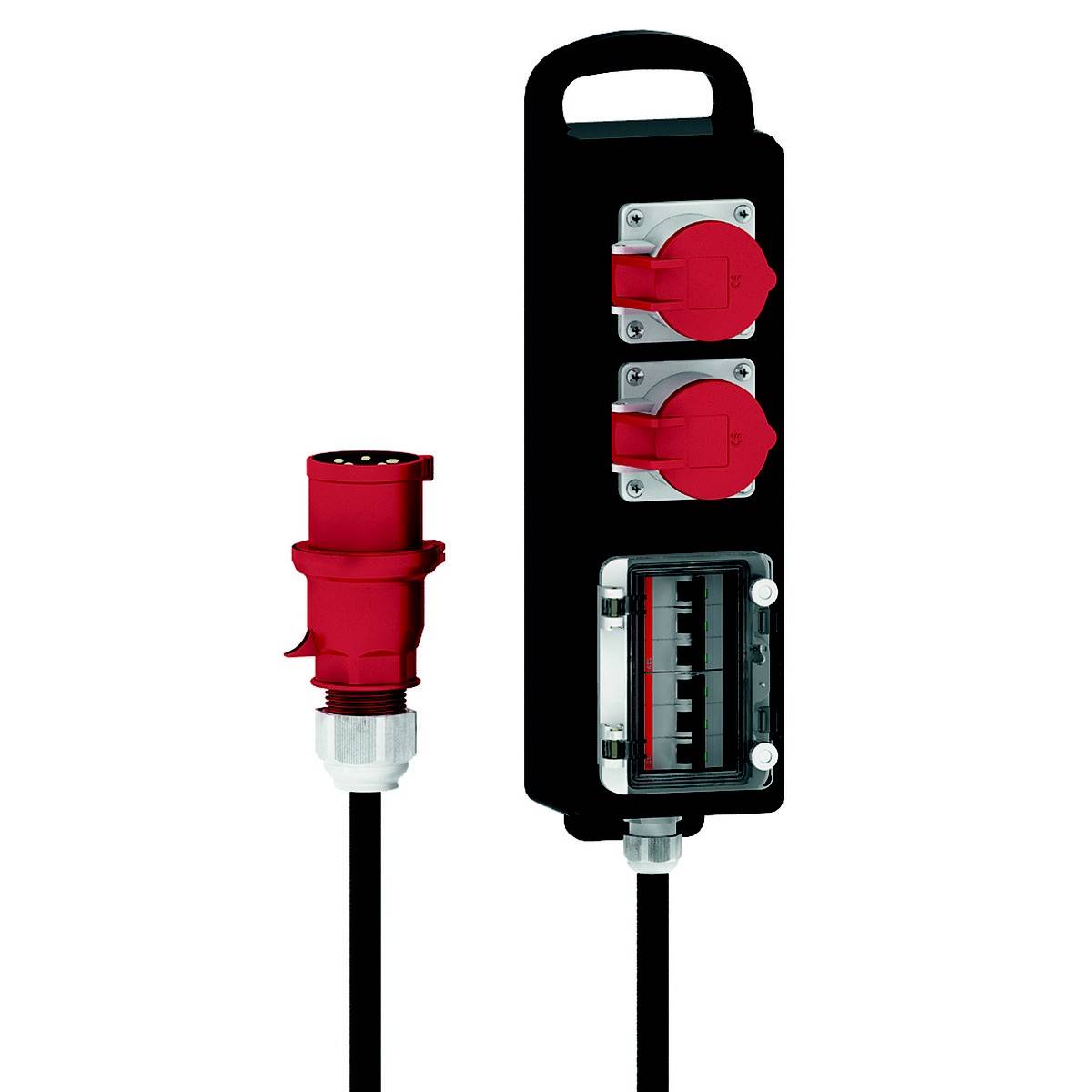

Bals Elektrotechnik CEE power distributor 53420 53420
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Protection: LS-switch
- FI-circuit breaker: Without
- Number of circuit breakers: 2
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 32 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black

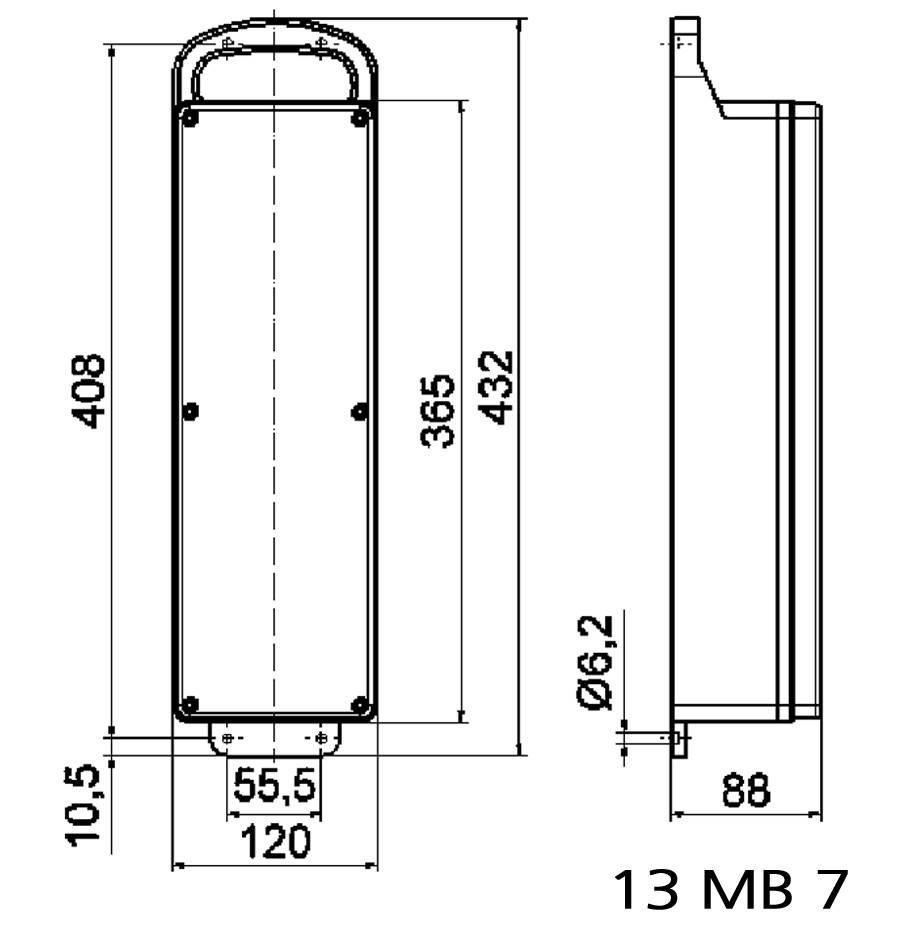

- Height: 88 mm
- Width 365 mm
- Depth: 120 mm
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 16 A)
- Nominal output voltage
400 V
IP44
- Cable length
2 m
- Cable standard
H07RN-F 5G 6 mm²
- Factory colour
Black
- Dim
(W x H x D) 365.00 x 88.00 x 120.00 mm
- Width
365.00 mm
- Height
88.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
120.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145124 Bals Elektrotechnik CEE power distributor 53420 53420
User & Safety Instructions
User & Safety Instructions 3145124 Bals Elektrotechnik CEE power distributor 53420 53420
Description
Block distributor
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact resistant solid rubber bar
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 88 mm, device width: 365 mm, device depth: 120 mm
RDF Factor: 0.77
INA 32
Equipment:
2 x CEE-socket 16A 400V 5p 6h IP 44
Security/Protection measure:
2 x C-Automatic 16A 3-P
Distributor without RCD
Cable entry/connection possibility:
CEE-plug 32A 400V 5p 6h IP 44
With 2m cable H07RN-F5G6
Additional Information:
Wired as ready to connect.
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact resistant solid rubber bar
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017
Device height: 88 mm, device width: 365 mm, device depth: 120 mm
RDF Factor: 0.77
INA 32
Equipment:
2 x CEE-socket 16A 400V 5p 6h IP 44
Security/Protection measure:
2 x C-Automatic 16A 3-P
Distributor without RCD
Cable entry/connection possibility:
CEE-plug 32A 400V 5p 6h IP 44
With 2m cable H07RN-F5G6
Additional Information:
Wired as ready to connect.
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
