Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: 3x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 32 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 88 mm
- Width 365 mm
- Depth: 120 mm
- Product type
CEE power distributor
- No. of CEE connectors
3
- Nominal output voltage
400 V
IP44
- Cable length
2 m
- Cable standard
H07RN-F 5G 4 mm²
- Factory colour
Black
- Dim
(L x W x H) 365 x 365.00 x 88.00 mm
- Length
365 mm
- Width
365.00 mm
- Height
88.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
120.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146447 Bals Elektrotechnik CEE power distributor 53525 53525
User & Safety Instructions
User & Safety Instructions 3146447 Bals Elektrotechnik CEE power distributor 53525 53525
Description

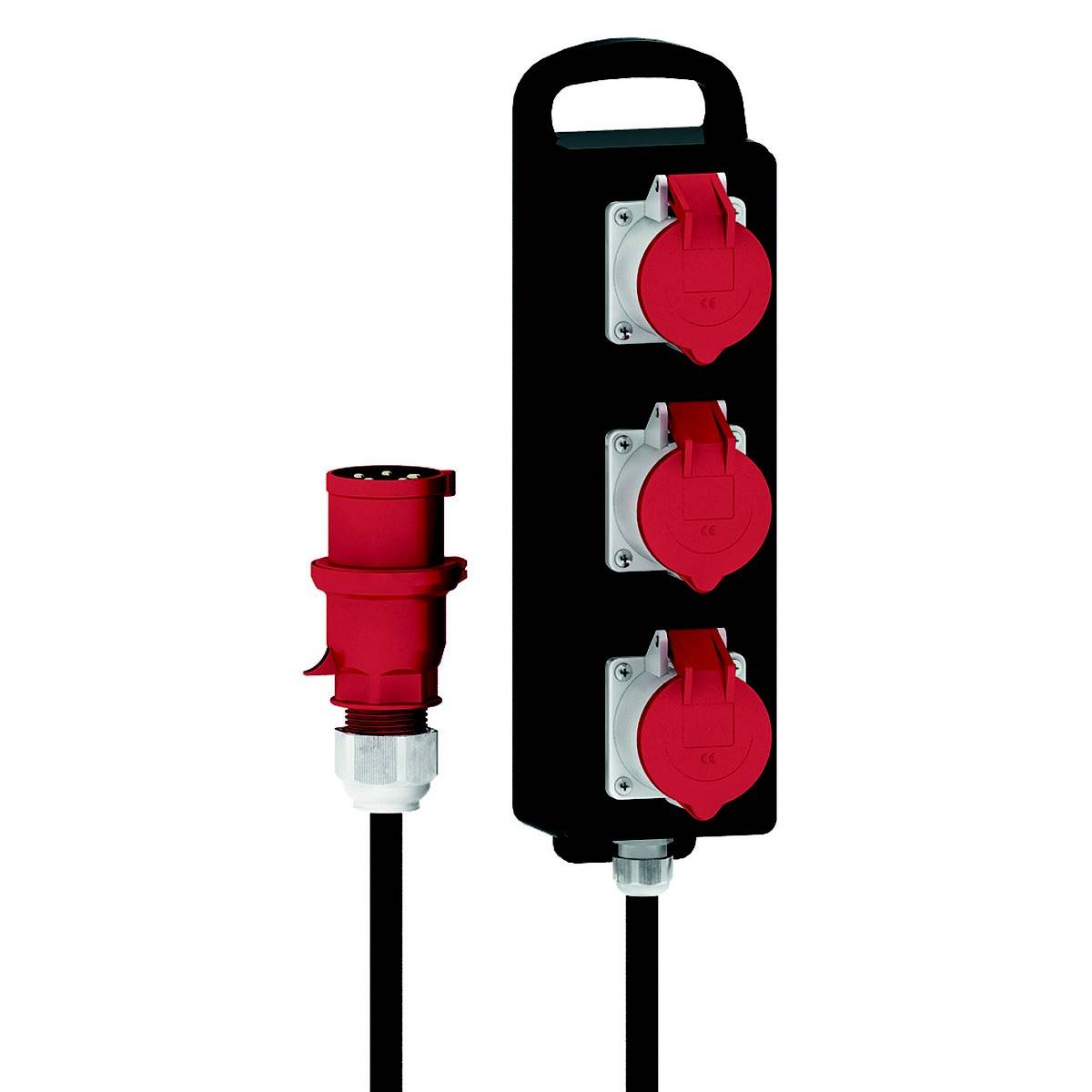

Block distributor
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact resistant solid rubber bar
Colour: Black housing base similar to RAL 9017, Black housing top similar to RAL 9017

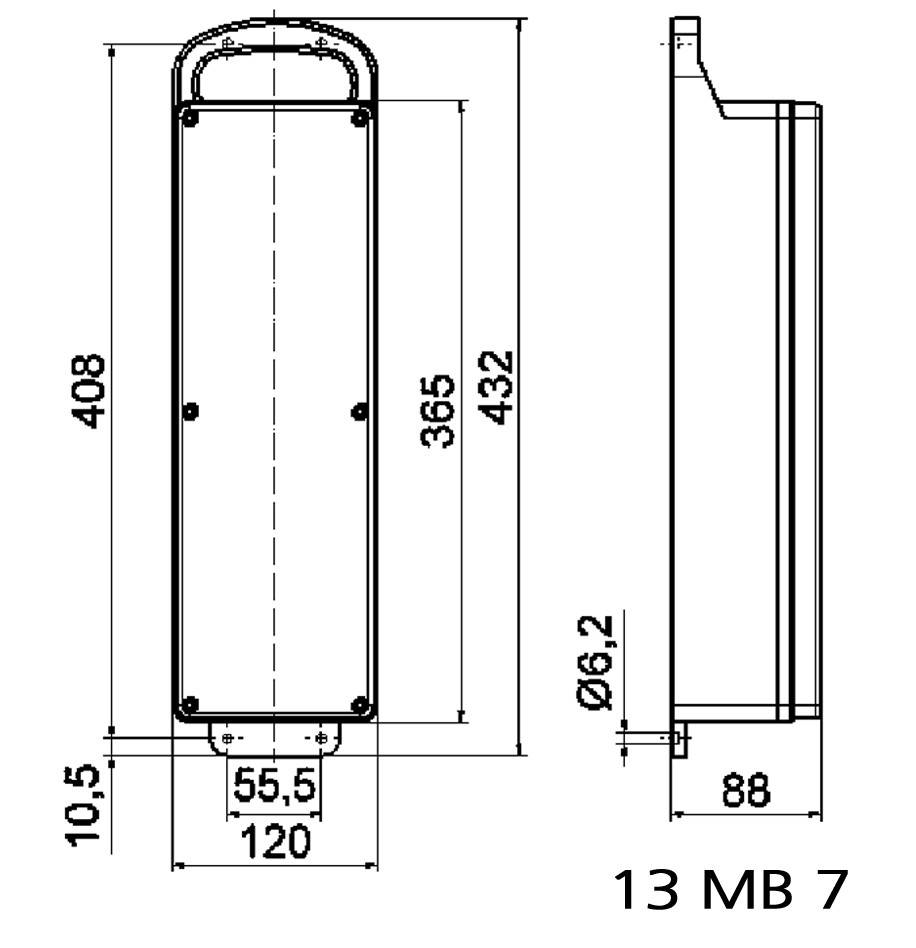

Device height: 88 mm, device width: 365 mm, device depth: 120 mm
RDF Factor: 1
INA 32
Equipment:
3 x CEE-socket 32A 400V 5p 6h IP 44
Security/Protection measure:
None
Cable entry/connection possibility:
CEE-plug 32A 400V 5p 6h IP 44
With 2m cable H07RN-F5G4
Additional Information:
Wired as ready to connect.
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
