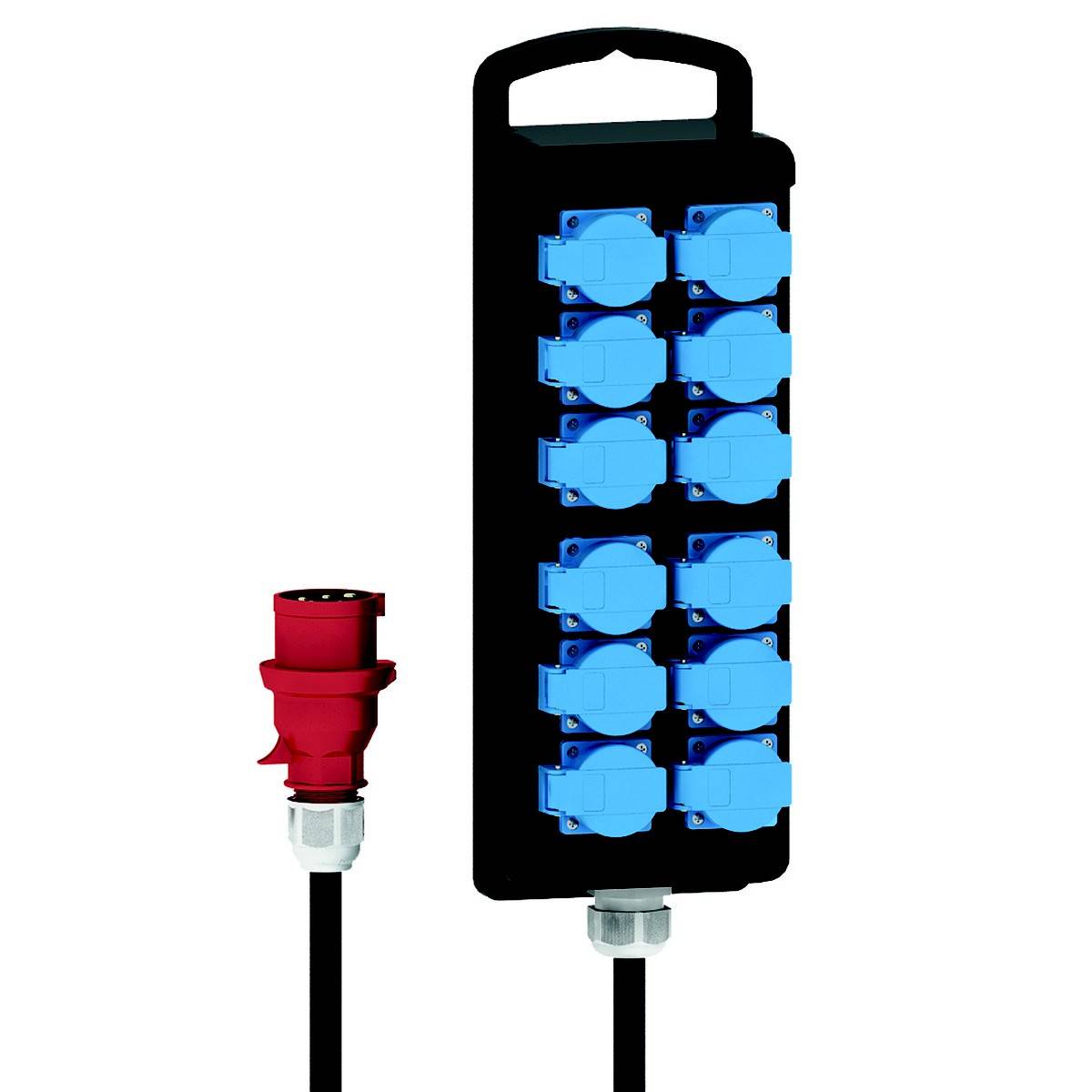

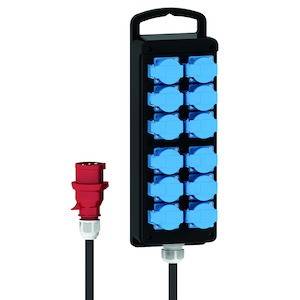

Bals Elektrotechnik CEE power distributor 53679 53679
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 12
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 16 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 90 mm
- Width 400 mm
- Depth: 150 mm
- Product type
CEE power distributor
- Type B
PG connector
- No. of PG sockets
12
- Nominal output voltage
230 V
IP44
- Cable length
2 m
- Factory colour
Black
- Dim
(L x W x H) 400 x 400.00 x 90.00 mm
- Length
400 mm
- Width
400.00 mm
- Height
90.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
PG connector
- Content
1 pc(s)
- Number of pins
5
- Depth
150.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145125 Bals Elektrotechnik CEE power distributor 53679 53679
User & Safety Instructions
User & Safety Instructions 3145125 Bals Elektrotechnik CEE power distributor 53679 53679
Description
Block distributor
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact resistant solid rubber bar
Colour: Lower part of housing black RAL 9005, upper part of housing black RAL 9005

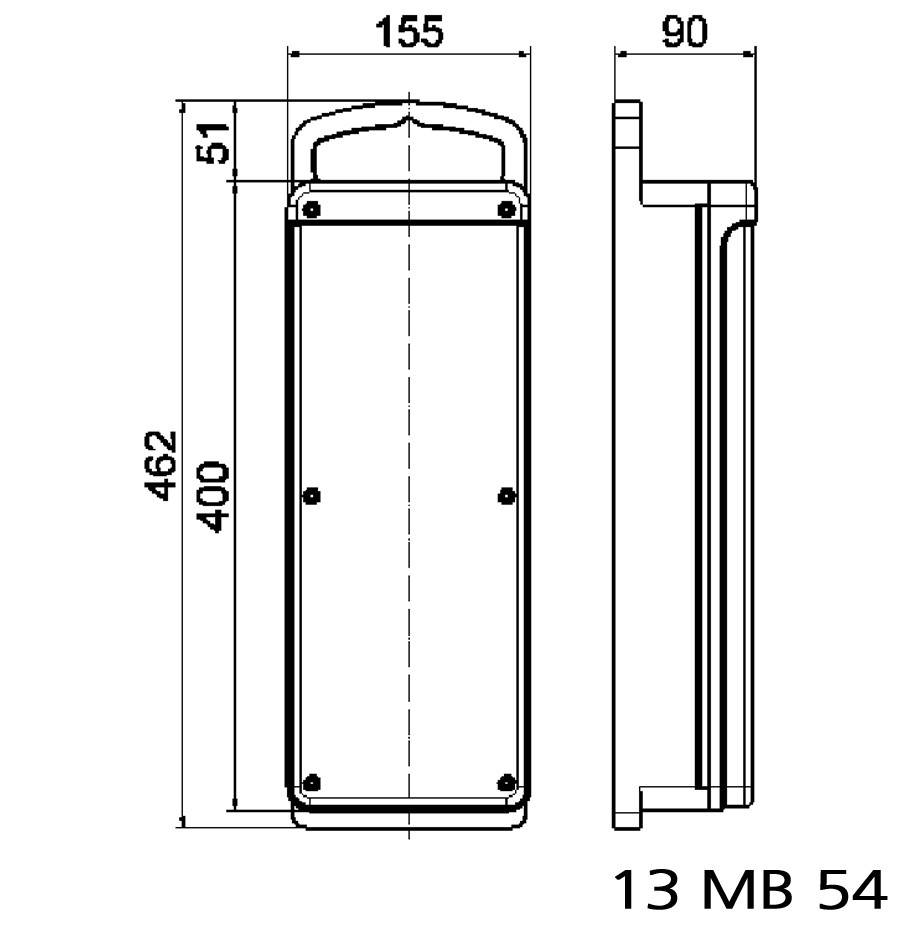

Device height: 90 mm, device width: 400 mm, device depth: 150 mm
RDF Factor: 1
INA 16
Equipment:
12 x earthing contact socket-outlet 16A 230V IP 54
Security/Protection measure:
None
Cable entry/connection possibility:
CEE-plug 16A 400V 5p 6h IP 44 (2136)
With 2m cable H07RN-F5G2.5
Additional Information:
Wired as ready to connect.
Structure according to Z-No. Z131132
CEE plug with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
