Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 6
- Security: Without
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 16 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour, black
- Height: 90 mm
- Width 400 mm
- Depth: 150 mm
- Product type
CEE power distributor
- No. of CEE connectors
1
- No. of PG sockets
6
- Nominal output voltage
400 V
IP44
- Cable length
2 m
- Factory colour
Black
- Dim
(W x H x D) 400.00 x 90.00 x 150.00 mm
- Width
400.00 mm
- Height
90.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
150.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145132 Bals Elektrotechnik CEE power distributor 53681 53681
User & Safety Instructions
User & Safety Instructions 3145132 Bals Elektrotechnik CEE power distributor 53681 53681

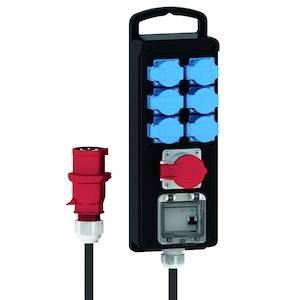

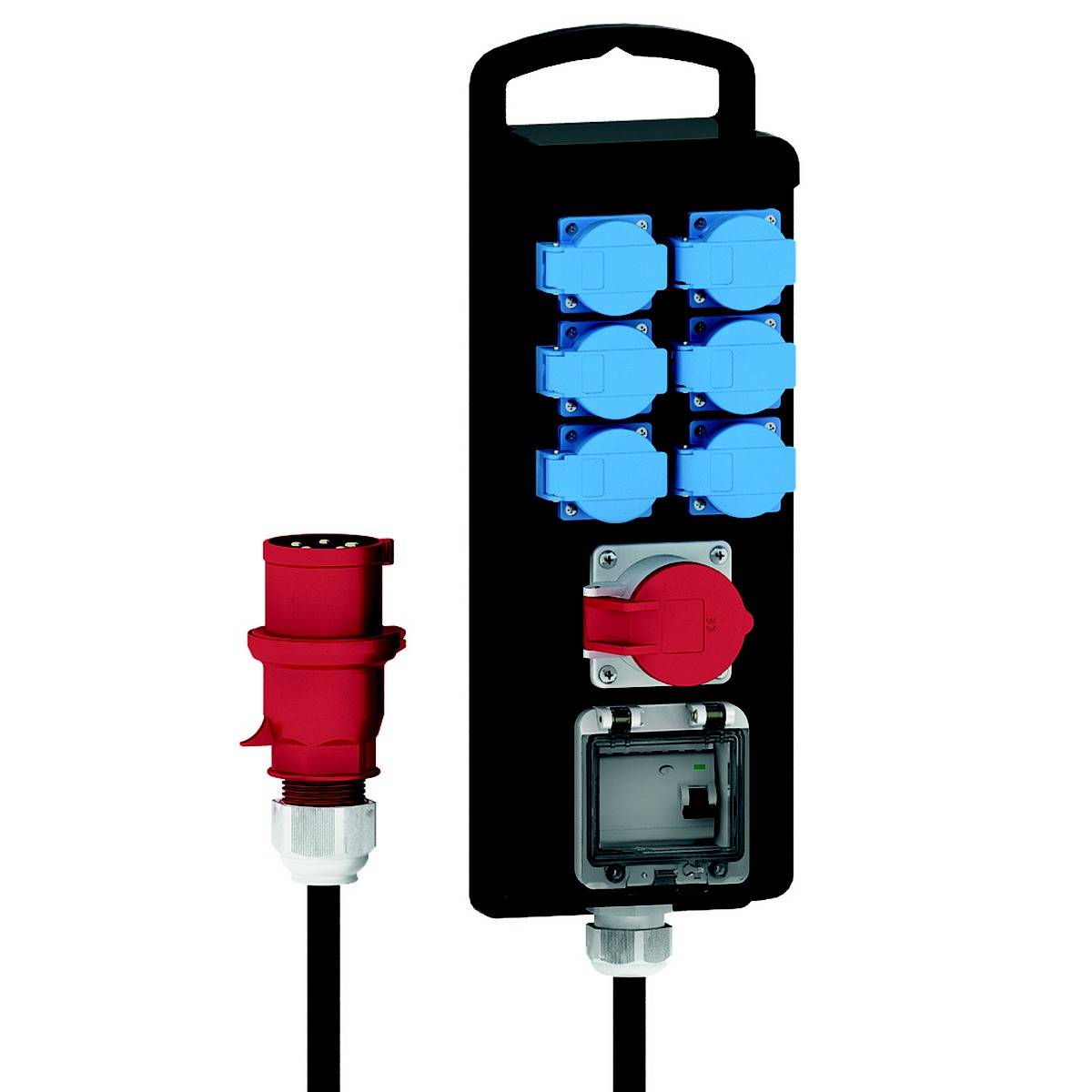

Description
Block distributor
DIN EN 61439-2 standard
Protection class: IP44
Case:
Impact resistant solid rubber bar
Colour: Lower part of housing black RAL 9005, upper part of housing black RAL 9005
Device height: 90 mm, device width: 400 mm, device depth: 150 mm
RDF Factor: 0.88
INA 16
Equipment:
6 x earthing contact socket-outlet 16A 230V IP 54
1 x CEE-socket 16A 400V 5p 6h IP 44
Security/Protection measure:
1 x FI switch 40/0.03A 4p
Cable entry/connection possibility:
CEE-plug 16A 400V 5p 6h IP 44
With 2m cable H07RN-F5G2.5
Additional Information:
Wired as ready to connect.
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
