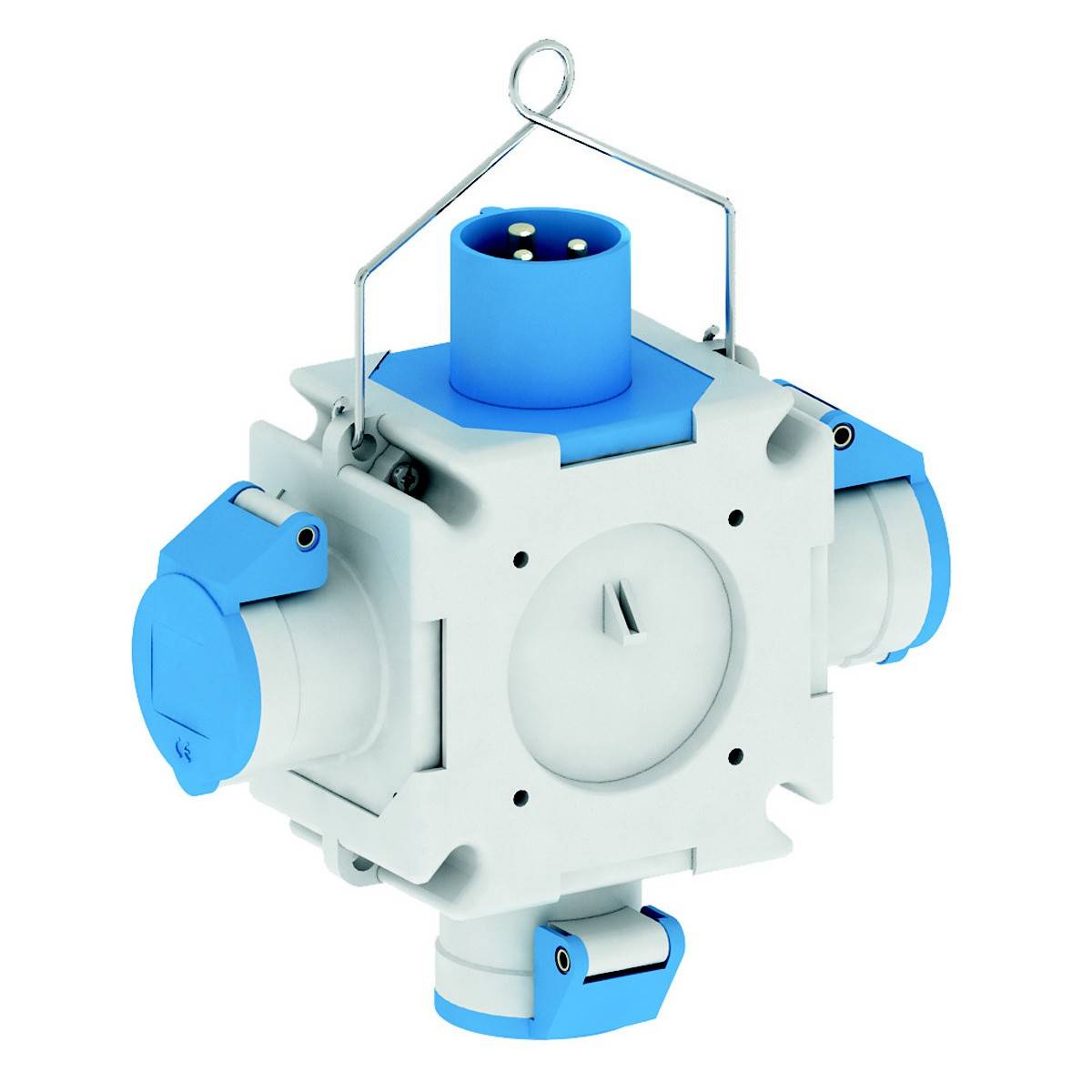

Bals Elektrotechnik CEE power distributor 54566 54566
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 3x16A3P230V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Security: Without
- FI-circuit breaker: Without
- Housing material: Plastic
- Feed/connection options: Connector
- Type of mains connection: CEE 16 A.
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 118 mm
- Width 118 mm
- Depth: 80 mm
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE plug (3-pin, 16 A)
- Nominal output voltage
230 V
IP44
- Factory colour
Grey
- Dim
(W x H x D) 118.00 x 118.00 x 80.00 mm
- Width
118.00 mm
- Height
118.00 mm
- Inputs (CEE power distributor)
CEE plug (3-in, 16 A)
- Outputs (CEE power distributors)
CEE connector (3-pin, 16 A)
- Content
1 pc(s)
- Number of pins
3
- Depth
80.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135035 Bals Elektrotechnik CEE power distributor 54566 54566
User & Safety Instructions
User & Safety Instructions 3135035 Bals Elektrotechnik CEE power distributor 54566 54566
Description
Cross distributor
Protection class: IP44
Case:
Shock-resistant plastic case with hanger
Colour: Lower part gray RAL 7035, upper part of housing gray RAL 7035

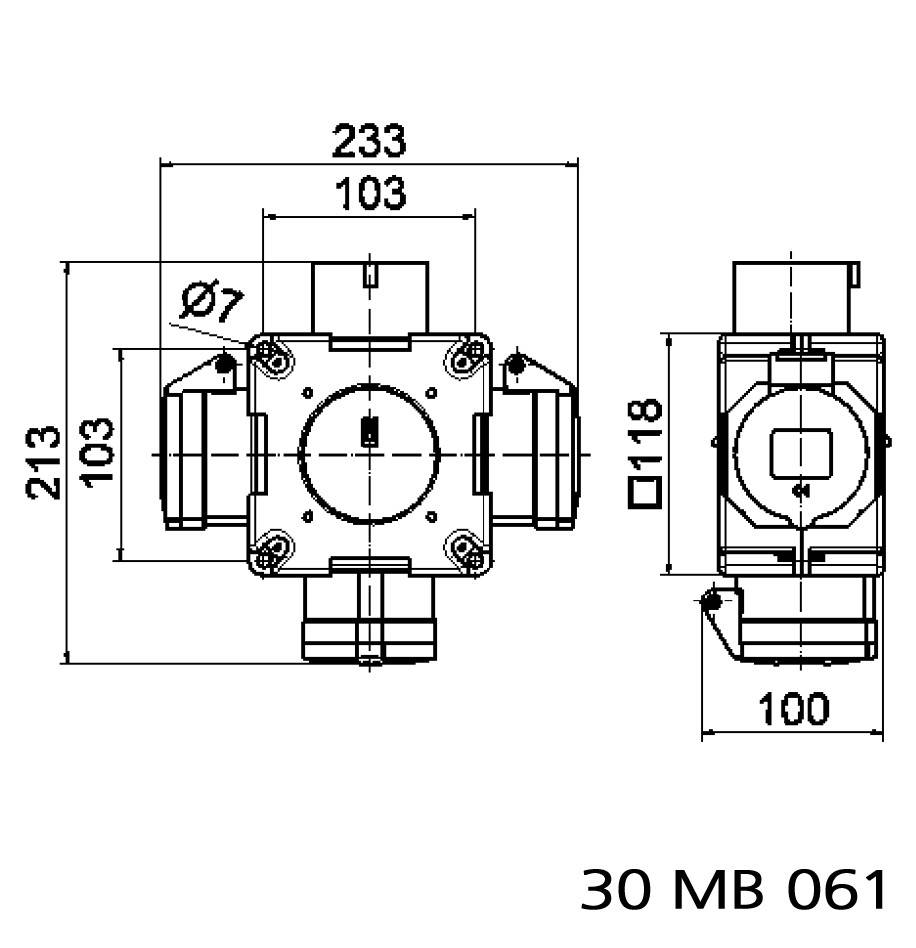

Device height: 118 mm, device width: 118 mm, device depth: 80 mm
Equipment:
3 x CEE-socket 16A 230V 3p 6h IP 44
Security/Protection measure:
none
Cable entry/connection possibility:
CEE-device plug 16A 230V 3p 6h IP 44
Additional Information:
Wired as ready to connect.
CEE-devices with screwless, maintenance-free
Quick-Connect connection technology.
This text is machine translated.
