Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Security: Without
- FI-circuit breaker: Without
- Housing material: Plastic
- Feed/connection options: Connector
- Type of mains connection: CEE 16 A.
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 114 mm
- Width 211 mm
- Depth: 116 mm
- Product type
CEE power distributor
- No. of CEE connectors
1
- Type A
CEE plug (5-pin, 16 A)
- Type B
CEE connector (5-pin, 16 A)
- Nominal output voltage
400 V
IP44
- Factory colour
Grey
- Dim
(L x W x H) 211 x 211.00 x 114.00 mm
- Length
211 mm
- Width
211.00 mm
- Height
114.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
116.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147295 Bals Elektrotechnik CEE power distributor 591 591
User & Safety Instructions
User & Safety Instructions 3147295 Bals Elektrotechnik CEE power distributor 591 591

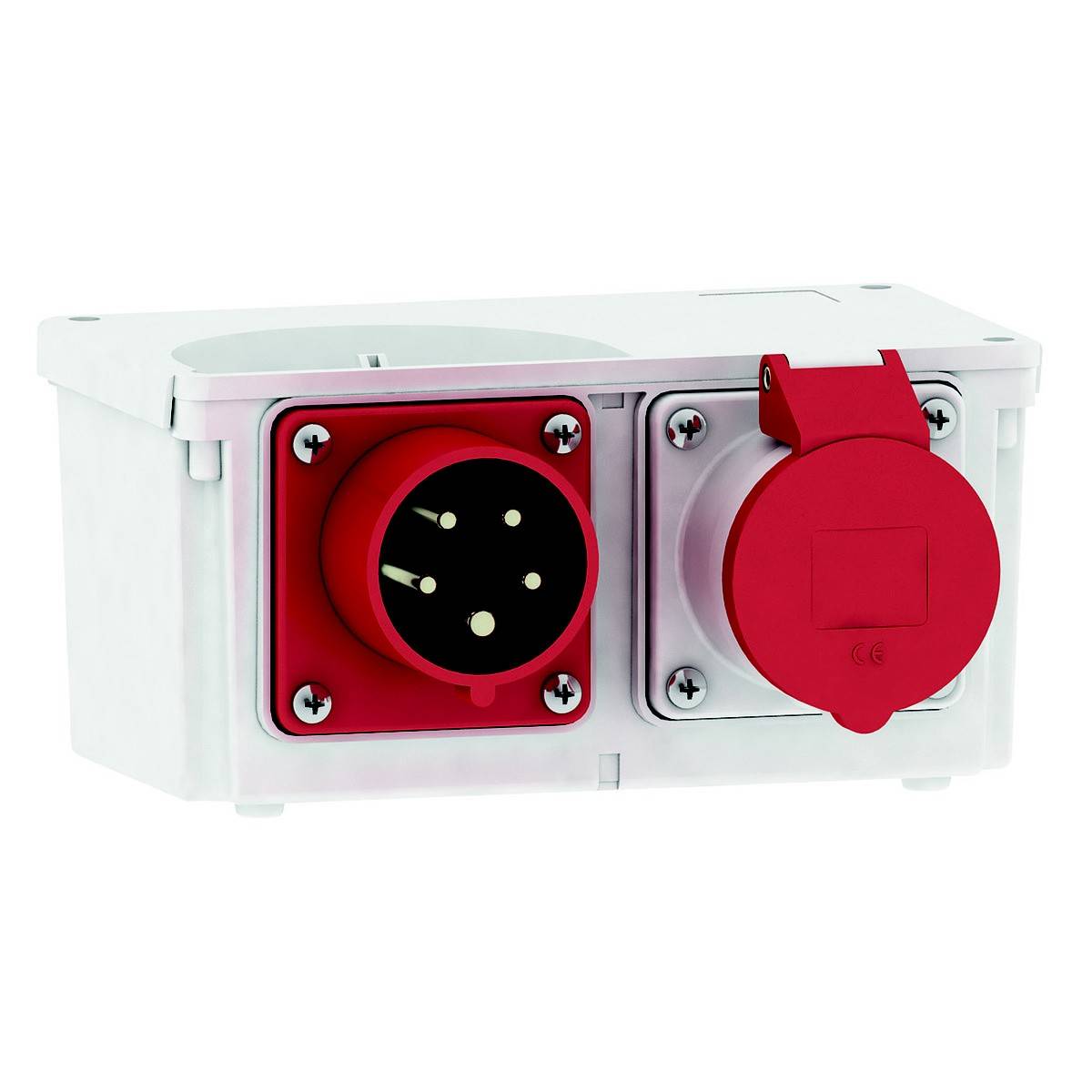

Description
Power supply unit
Protection class: IP44
Case:

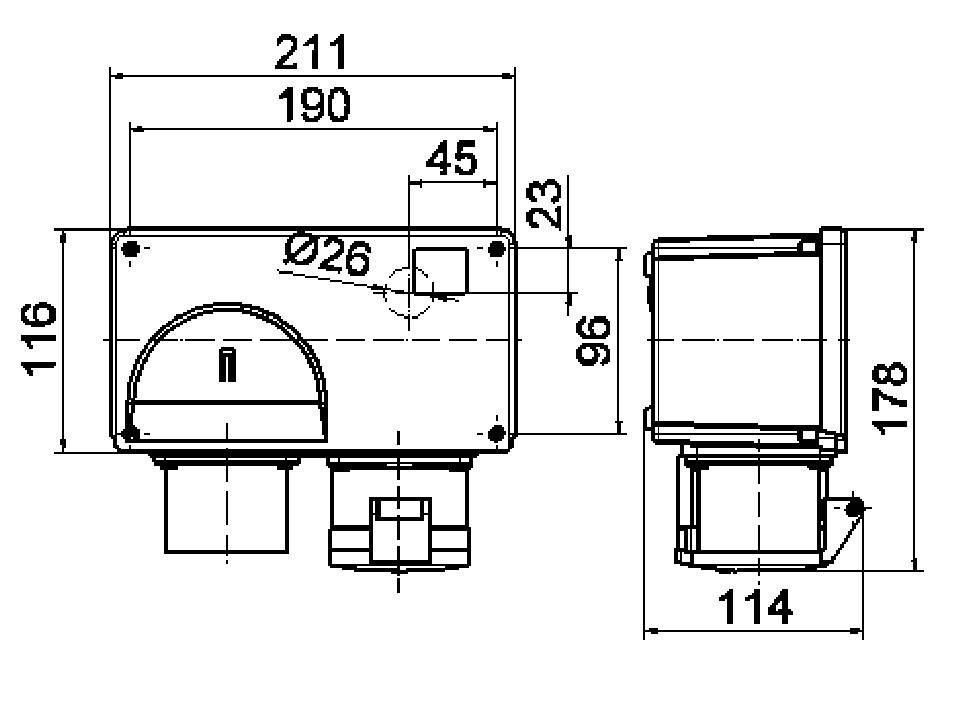

211 x 116 mm with attachment lug for hinged lid
Colour: Grey RAL 7035
Device height: 114 mm, device width: 211 mm, device depth: 116 mm
Equipment:
1 x CEE-device plug 16A 400V 5P
1 x CEE-socket 16A 400V 5P
Security/Protection measure:
none
Cable entry/connection possibility:
back
Additional Information:
Wired as ready to connect
Terminal block
This text is machine translated.
Protection class: IP44
Case:
211 x 116 mm with attachment lug for hinged lid
Colour: Grey RAL 7035
Device height: 114 mm, device width: 211 mm, device depth: 116 mm
Equipment:
1 x CEE-device plug 16A 400V 5P
1 x CEE-socket 16A 400V 5P
Security/Protection measure:
none
Cable entry/connection possibility:
back
Additional Information:
Wired as ready to connect
Terminal block
This text is machine translated.
