Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Security: Without
- FI-circuit breaker: Without
- Housing material: Plastic
- Feed/connection options: Connector
- Type of mains connection: CEE 32 A.
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 114 mm
- Width 211 mm
- Depth: 116 mm
- Product type

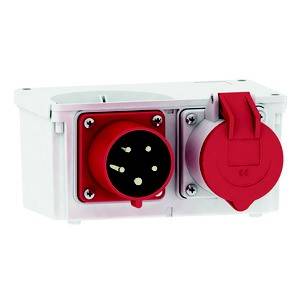

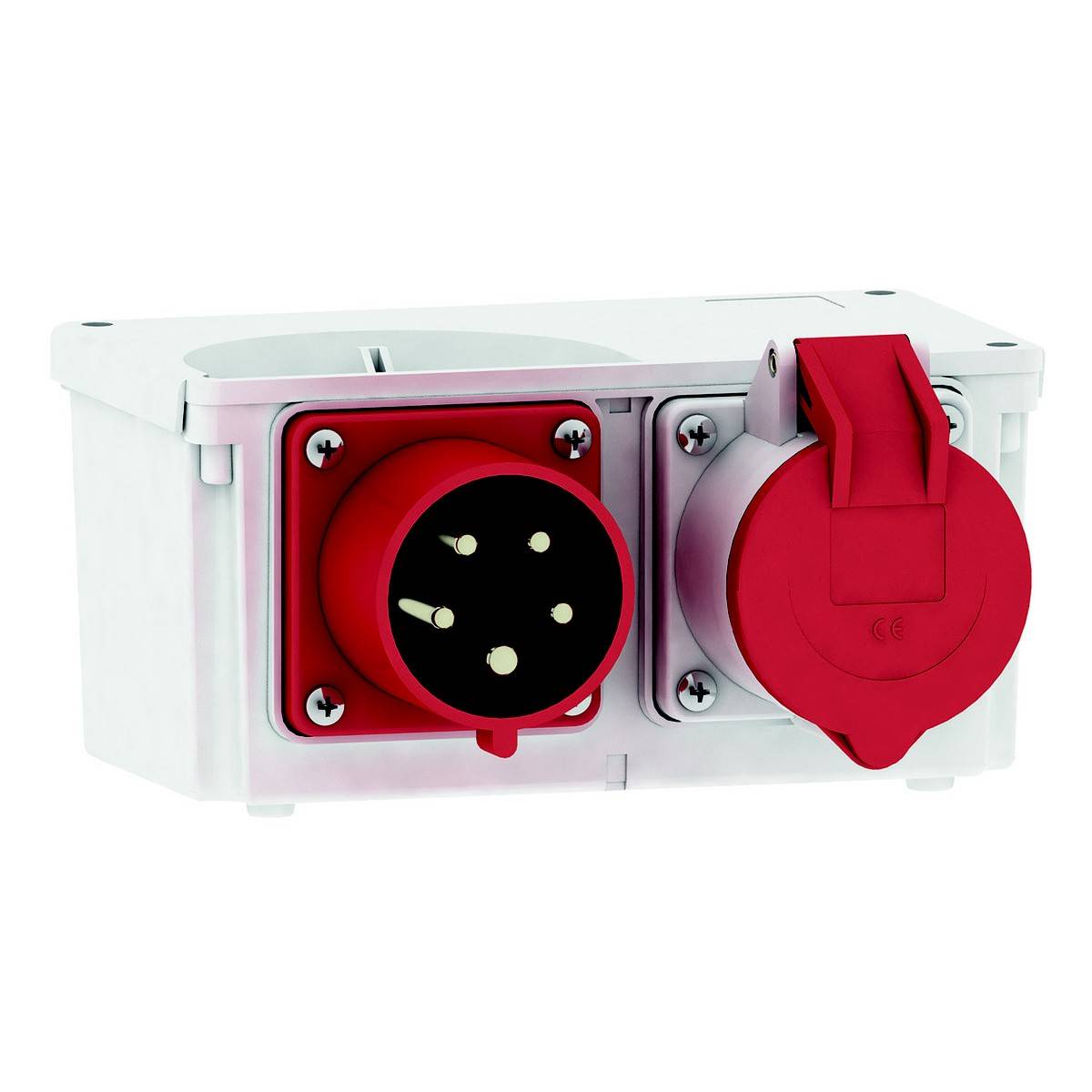

CEE power distributor
IP44
- Factory colour
Grey
- Dim
(W x H x D) 211.00 x 114.00 x 116.00 mm
- Width
211.00 mm
- Height
114.00 mm
- Content
1 pc(s)
- Depth
116.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147304 Bals Elektrotechnik CEE power distributor 592 592
User & Safety Instructions
User & Safety Instructions 3147304 Bals Elektrotechnik CEE power distributor 592 592
Description
Power supply unit
Protection class: IP44
Case:
211 x 116 mm with attachment lug for hinged lid
Colour: Grey RAL 7035

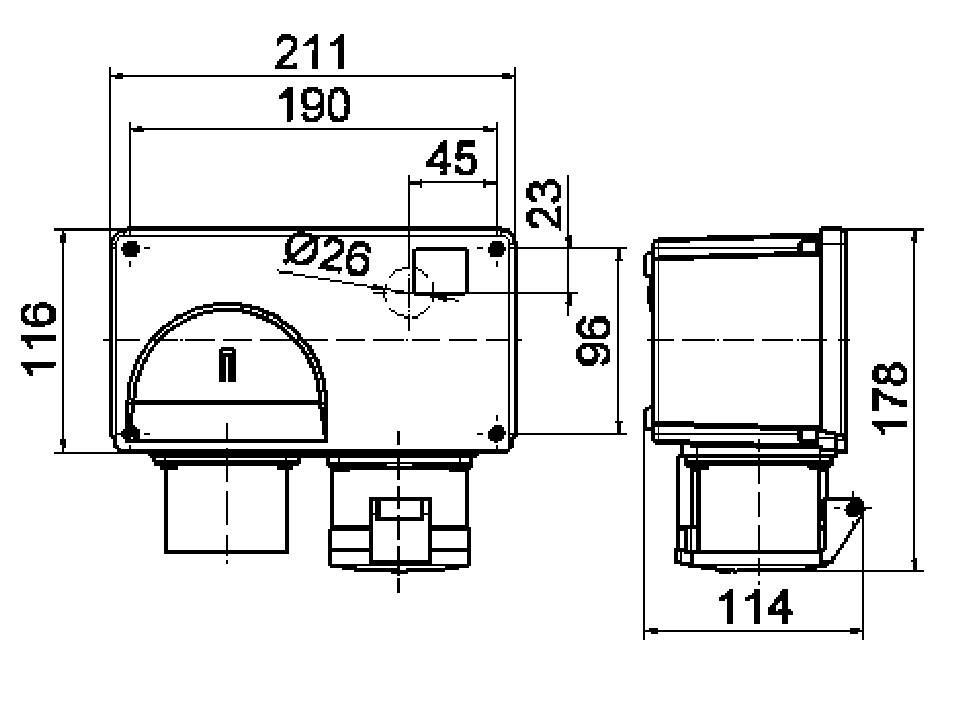

Device height: 114 mm, device width: 211 mm, device depth: 116 mm
Equipment:
1 x CEE-device plug 32A 400V 5p type: 2815
1 x CEE-socket 32A 400V 5p type 1333
Security/Protection measure:
none
Cable entry/connection possibility:
back
Additional Information:
Wired as ready to connect to terminal block.
This text is machine translated.
Protection class: IP44
Case:
211 x 116 mm with attachment lug for hinged lid
Colour: Grey RAL 7035
Device height: 114 mm, device width: 211 mm, device depth: 116 mm
Equipment:
1 x CEE-device plug 32A 400V 5p type: 2815
1 x CEE-socket 32A 400V 5p type 1333
Security/Protection measure:
none
Cable entry/connection possibility:
back
Additional Information:
Wired as ready to connect to terminal block.
This text is machine translated.
