1/3
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Protection: LS-switch
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Number of circuit breakers: 3
- Housing material: Plastic
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 32 A.
- Cable length: 2 m
- Handling: Portable
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 390 mm
- Width 230 mm
- Depth: 145 mm
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE connector (5-pin, 32 A)
- No. of PG sockets
2
IP44
- Cable length
2 m
- Cable standard
H07RN-F 5G 6 mm²
- Factory colour
Grey
- Dim
(L x W x H) 390 x 230.00 x 390.00 mm
- Length
390 mm
- Width
230.00 mm
- Height
390.00 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
145.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146657 Bals Elektrotechnik CEE power distributor 85008 85008
User & Safety Instructions
User & Safety Instructions 3146657 Bals Elektrotechnik CEE power distributor 85008 85008

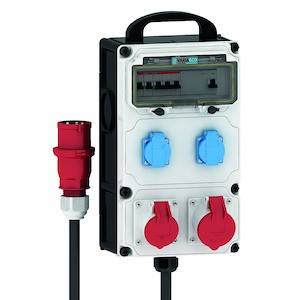

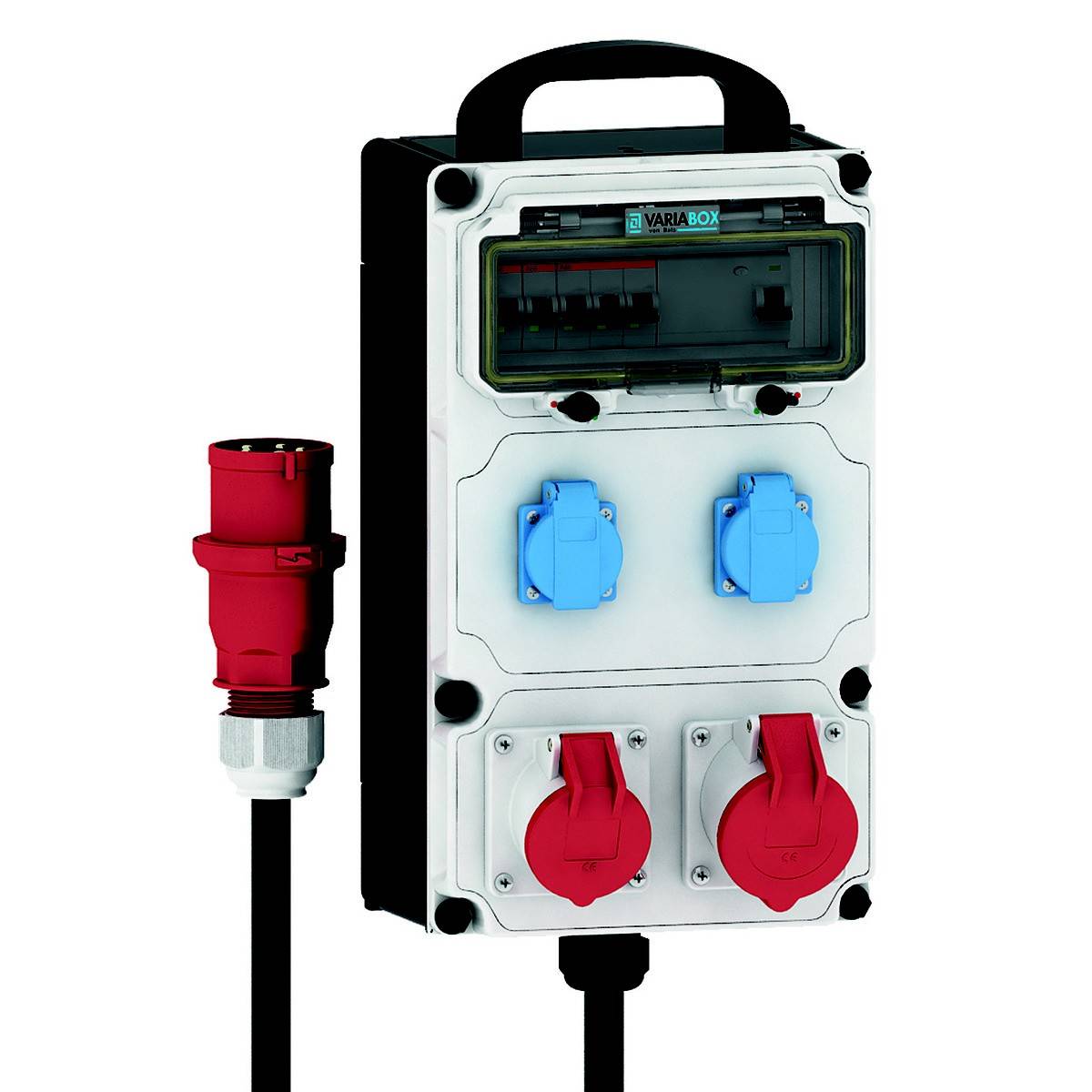

Description
VARIOBOX - L Mobile
DIN EN 61439-2 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, upper section straight, cover screws
Cannot be lost, fuse elements arranged
Under transparent operating flap with b.
User-friendly OTC mechanism (one touch close)
Distributor including carrying handle
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035

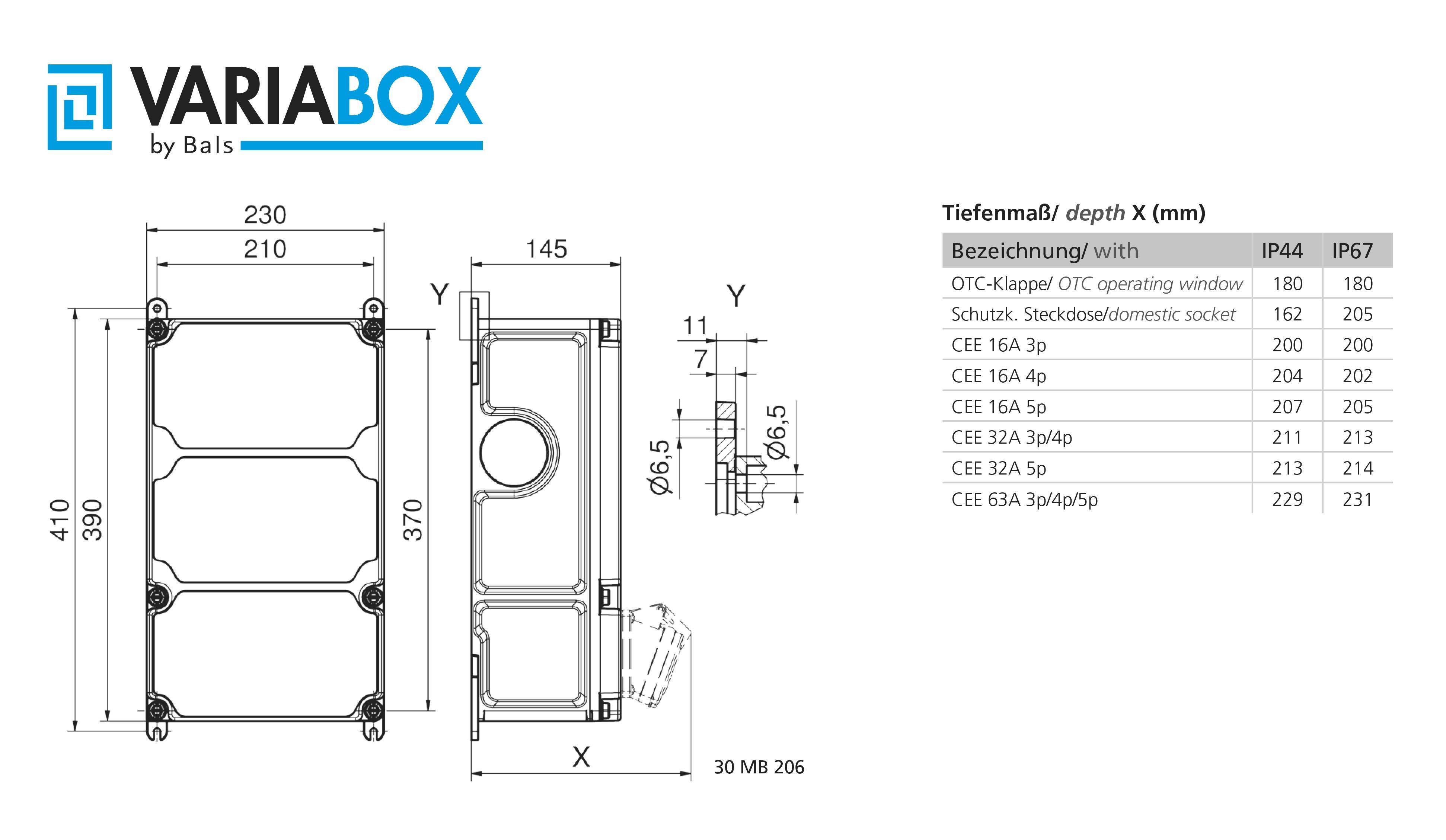

Device height: 390 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 0.73
INA 32
Equipment:
2 x earthing contact socket 16A 230V blue IP 54
1 x CEE-socket 16A 400V 5p 6h IP 44 angled
1 x CEE-socket 32A 400V 5p 6h IP 44 angled
Security/Protection measure:
2 x C circuit breaker 16A 1p / manufacturer. ABB
1 x C circuit breaker 16A 3p / color. ABB
1 x FI switch 40/0.03 A 4p / manufacturer. ABB
Mounted on retractable rail
Cable entry/connection possibility:
CEE-plug 32A 400V 5p 6h
With 2m H07RN-F5 G6 cable
Additional Information:
Wired as ready to connect
Structure according to Z-No. Z1202112
This text is machine translated.
DIN EN 61439-2 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, upper section straight, cover screws
Cannot be lost, fuse elements arranged
Under transparent operating flap with b.
User-friendly OTC mechanism (one touch close)
Distributor including carrying handle
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035
Device height: 390 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 0.73
INA 32
Equipment:
2 x earthing contact socket 16A 230V blue IP 54
1 x CEE-socket 16A 400V 5p 6h IP 44 angled
1 x CEE-socket 32A 400V 5p 6h IP 44 angled
Security/Protection measure:
2 x C circuit breaker 16A 1p / manufacturer. ABB
1 x C circuit breaker 16A 3p / color. ABB
1 x FI switch 40/0.03 A 4p / manufacturer. ABB
Mounted on retractable rail
Cable entry/connection possibility:
CEE-plug 32A 400V 5p 6h
With 2m H07RN-F5 G6 cable
Additional Information:
Wired as ready to connect
Structure according to Z-No. Z1202112
This text is machine translated.
