Bals Elektrotechnik CEE power distributor 89096 89096
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Protection: LS-switch
- FI-circuit breaker: Without
- Number of circuit breakers: 5
- Housing material: Plastic
- Feed/connection options: 2 lines (loop/loop-through)
- Diameter of cable entry: M40
- Type of mains connection: Other
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 520 mm
- Width 230 mm
- Depth: 145 mm
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type B
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
PG connector
- No. of PG sockets
2
- Nominal output voltage
400 V
IP44
- Factory colour
Grey
- Dim
(L x W x H) 520 x 230.00 x 520.00 mm
- Length
520 mm
- Width
230.00 mm
- Height
520.00 mm
- Inputs (CEE power distributor)
Screw terminals
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
145.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146687 Bals Elektrotechnik CEE power distributor 89096 89096
User & Safety Instructions
User & Safety Instructions 3146687 Bals Elektrotechnik CEE power distributor 89096 89096
Description

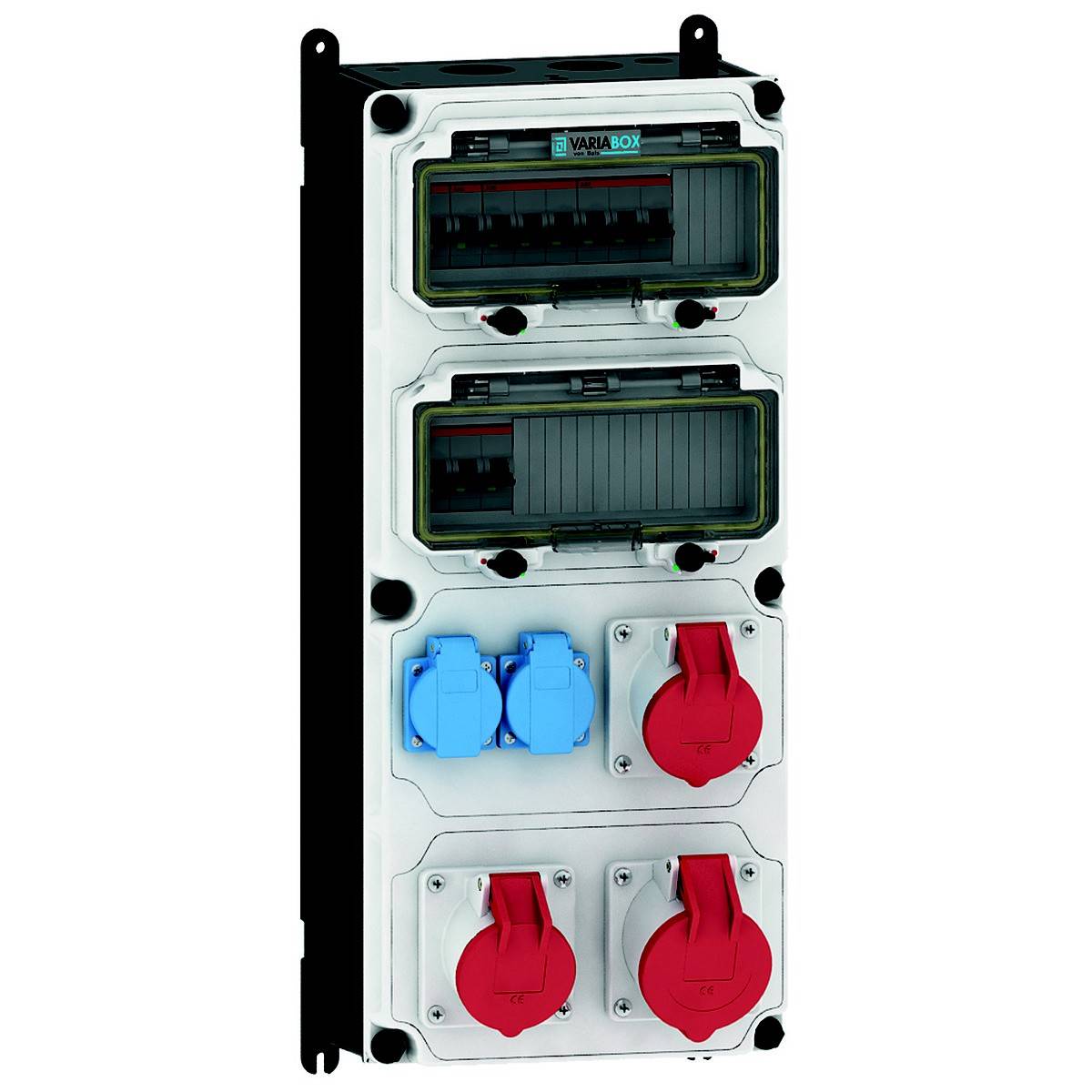

VARIOBOX - XL
DIN EN 61439 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, with outer and inner mounting
Upper section straight and sideways hinged
Security mounted on extendable mounting rail
Cover screws undetachable, locking elements
Arranged under transparent actuation flap
With user-friendly OTC mechanism
(one-touch close)
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035

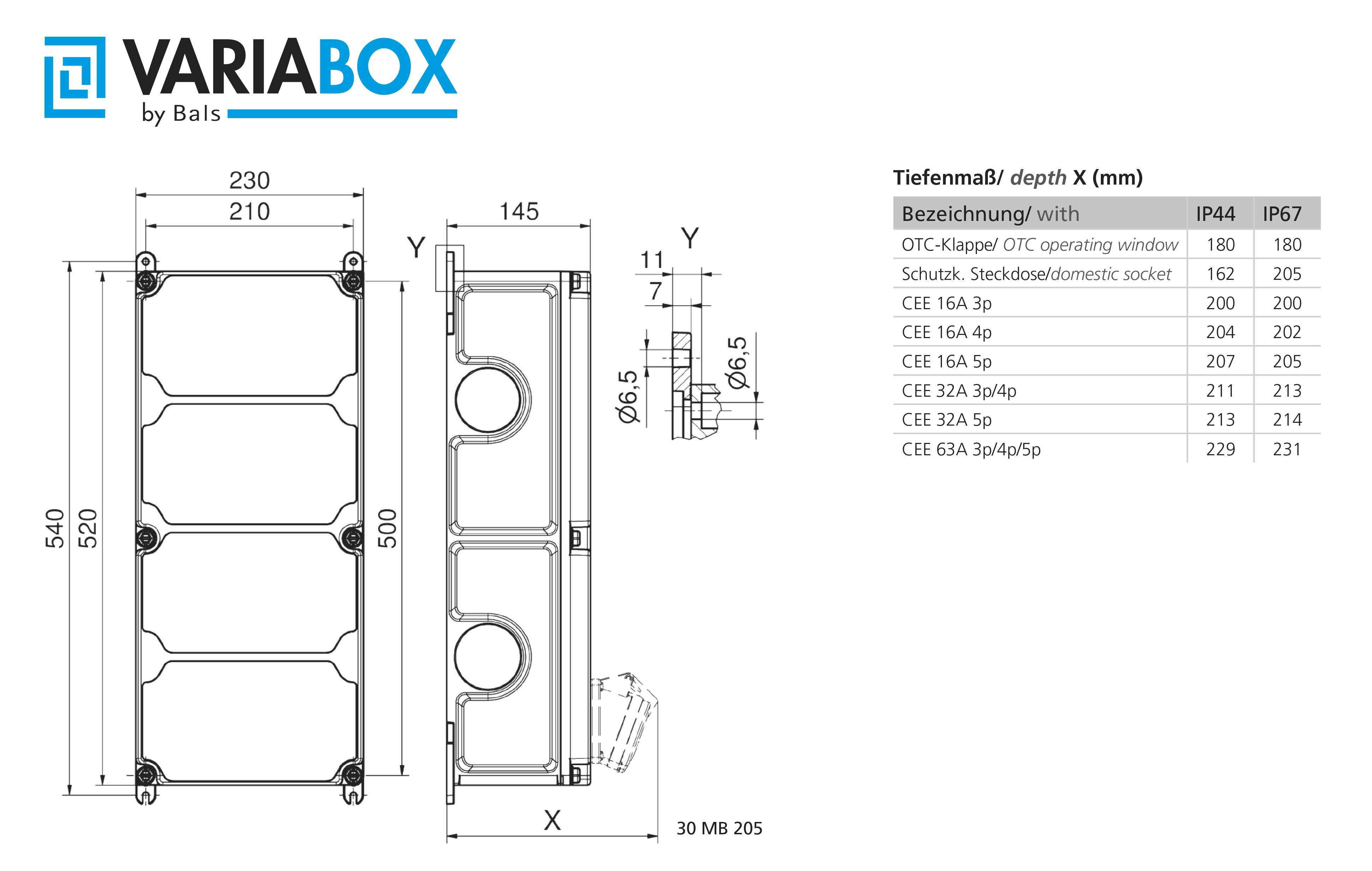

Device height: 520 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 0.76
INA 63
Equipment:
2 x earthing contact socket 16A 230V IP54 blue
2 x CEE-socket 16A 400V 5p 6h IP44 tilted
1 x CEE-socket 32A 400V 5p 6h IP44 tilted
Security/Protection measure:
2 x C-Automatic 16A 1p
2 x C-Automatic 16A 3-P
1 x C-Machine 32A 3-pin
Cable entry/connection possibility:
1 x M12, 1 x M20, 2 x M40 above
1 x M12, 1 x M20, 2 x M40 below
1 x counter terminal block 5x25 mm² / type C (loop cable)
Additional Information:
Wired as ready to connect.
Wiring according to circuit diagram S89096
This text is machine translated.
DIN EN 61439 standard
Protection class: IP44
Case:
High-quality, impact-resistant plastic housing (PBT)
Lead-sealable, with outer and inner mounting
Upper section straight and sideways hinged
Security mounted on extendable mounting rail
Cover screws undetachable, locking elements
Arranged under transparent actuation flap
With user-friendly OTC mechanism
(one-touch close)
Colour: Black housing base similar to RAL 9017, housing top gray RAL 7035
Device height: 520 mm, device width: 230 mm, device depth: 145 mm
RDF Factor: 0.76
INA 63
Equipment:
2 x earthing contact socket 16A 230V IP54 blue
2 x CEE-socket 16A 400V 5p 6h IP44 tilted
1 x CEE-socket 32A 400V 5p 6h IP44 tilted
Security/Protection measure:
2 x C-Automatic 16A 1p
2 x C-Automatic 16A 3-P
1 x C-Machine 32A 3-pin
Cable entry/connection possibility:
1 x M12, 1 x M20, 2 x M40 above
1 x M12, 1 x M20, 2 x M40 below
1 x counter terminal block 5x25 mm² / type C (loop cable)
Additional Information:
Wired as ready to connect.
Wiring according to circuit diagram S89096
This text is machine translated.
