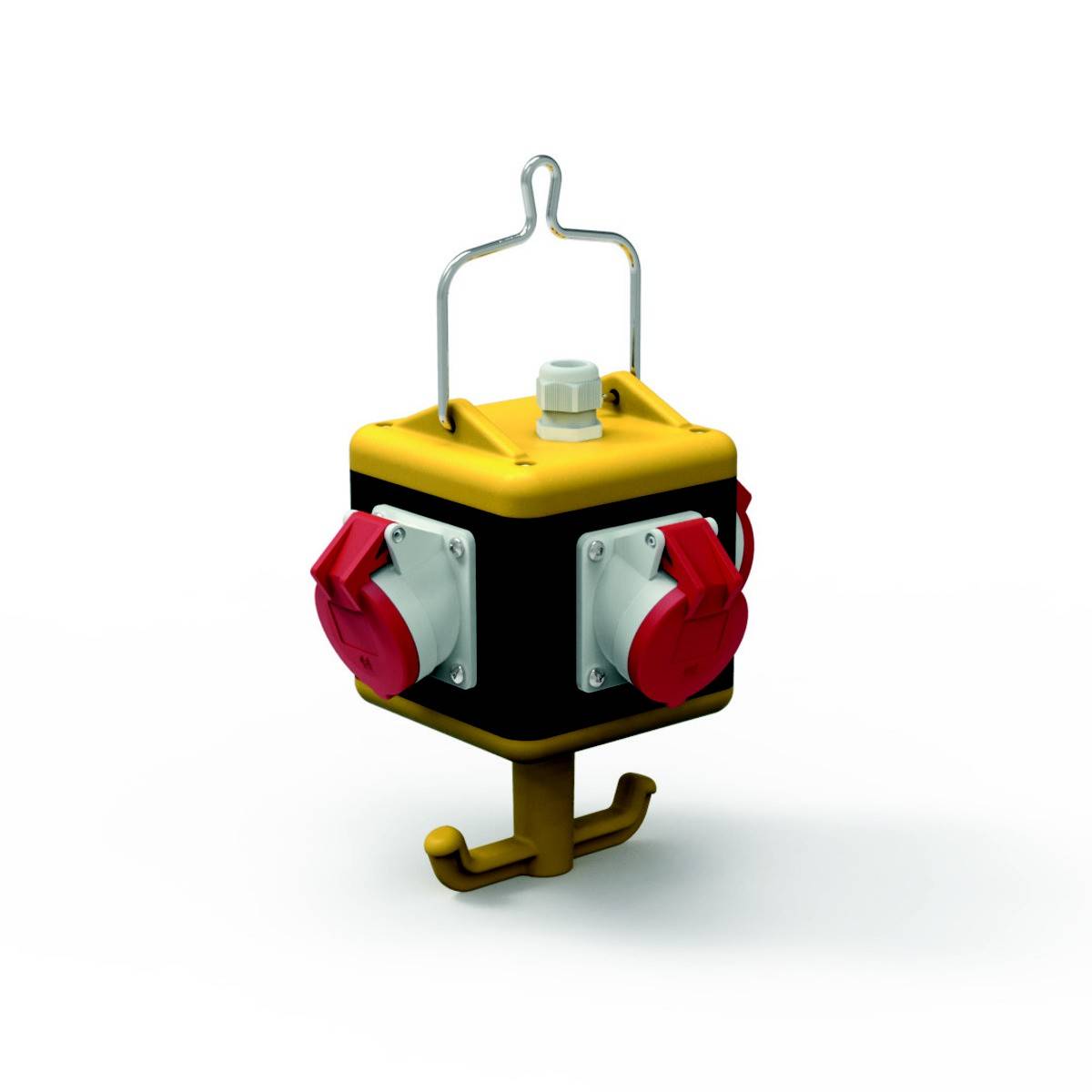

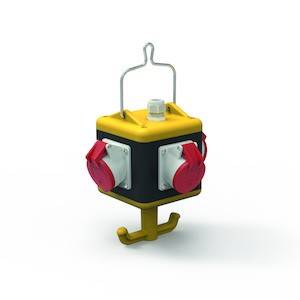

Bals Elektrotechnik CEE suspended distributor 57074 57074
EAN:
Part number:
Item no:
Technical specifications
- CEE-socket - 16 A: 4x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Security: Without
- FI-circuit breaker: Without
- Material of housing: Rubber
- Feed/connection options: 1 line (stub cable)
- Diameter entrance: M25
- Cable length 0 m
- Handling: Dependent
- Protection type (IP) IP44
- Military version: No.
- Colour, black

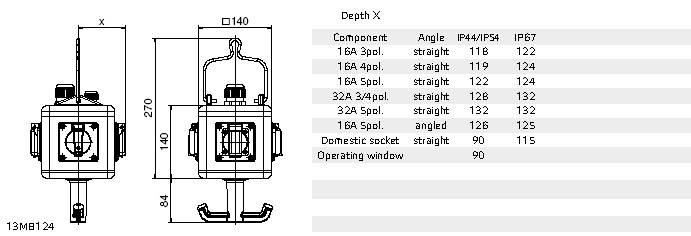

- Height: 140 mm
- Width 140 mm
- Depth: 140 mm
- Product type
CEE suspended distributor
- No. of CEE connectors
4
- Nominal output voltage
400 V
IP44
- Factory colour
Black
- Dim
(L x W x H) 140 x 140.00 x 140.00 mm
- Length
140 mm
- Width
140.00 mm
- Height
140.00 mm
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145094 Bals Elektrotechnik CEE suspended distributor 57074 57074
User & Safety Instructions
User & Safety Instructions 3145094 Bals Elektrotechnik CEE suspended distributor 57074 57074
Description
UNI - Block, depending
Protection class: IP44
Case:
High quality, impact-resistant solid rubber housing
With bracket and grip hook
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1021
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
Equipment:
4 x CEE-socket 16A 400V 5p
Security/Protection measure:
None
Cable entry/connection possibility:
Screw connection M25 top
Additional Information:
Ready wired for connection to the terminals.
This text is machine translated.
Protection class: IP44
Case:
High quality, impact-resistant solid rubber housing
With bracket and grip hook
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1021
Device height: 140 mm, device width: 140 mm, device depth: 140 mm
Equipment:
4 x CEE-socket 16A 400V 5p
Security/Protection measure:
None
Cable entry/connection possibility:
Screw connection M25 top
Additional Information:
Ready wired for connection to the terminals.
This text is machine translated.
