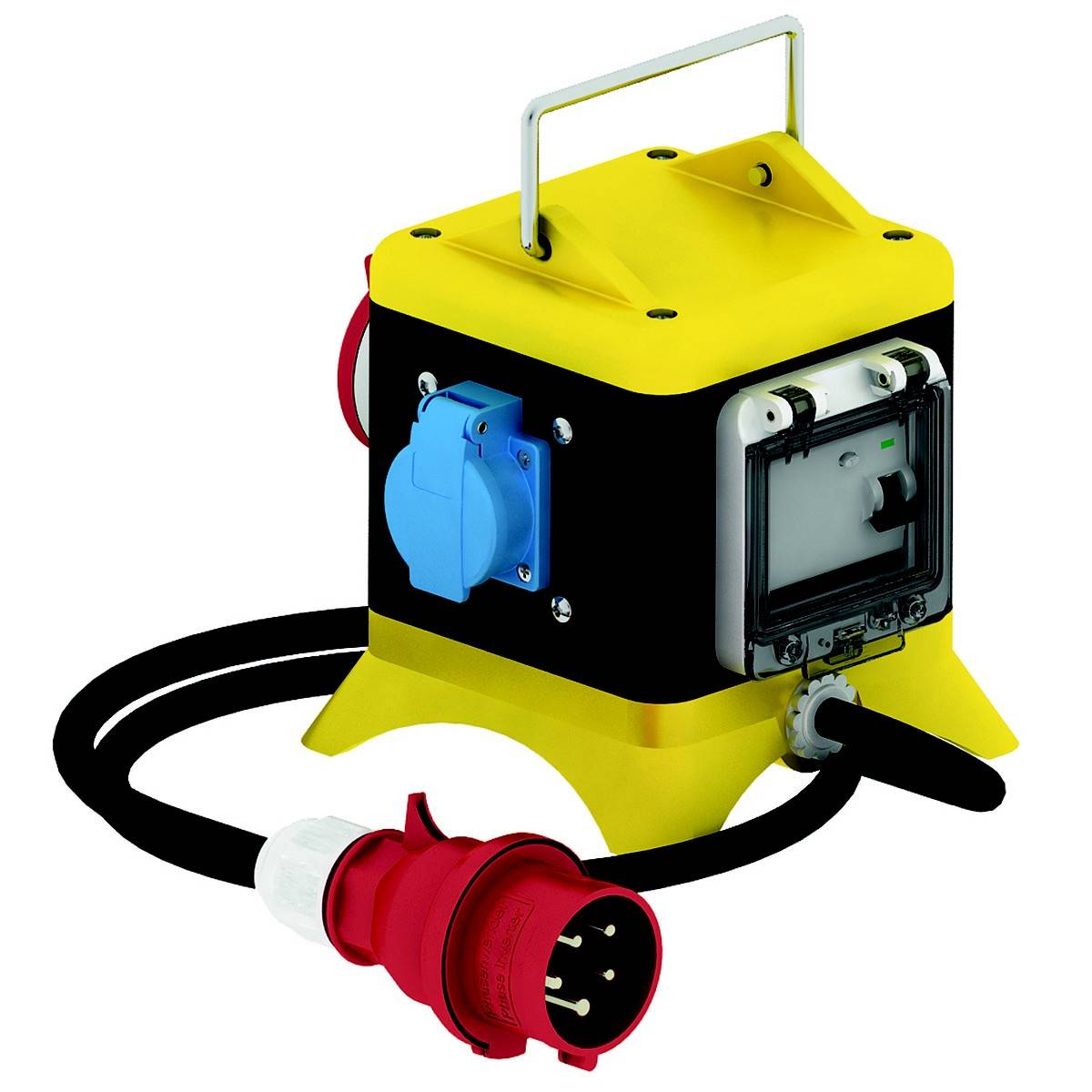

Bals Elektrotechnik CEE suspended distributor 57996 57996
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 2
- Other fixtures and/or empty spaces: 1
- Security: Without
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Type of mains connection: CEE 16 A.
- Cable length: 2 m
- Handling: Portable
- Protection class (IP) IP54
- Military version: No.
- Colour, black
- Height: 171 mm
- Width 140 mm
- Depth: 140 mm
- Product type
CEE suspended distributor
- No. of CEE connectors
1
- Type A
CEE plug (5-pin, 16 A)
- Type B
CEE connector (5-pin, 16 A)
- No. of PG sockets
2
- Nominal output voltage
400 V
IP54
- Cable length
2 m
- Factory colour
Black
- Dim
(L x W x H) 171 x 140.00 x 171.00 mm
- Length
171 mm
- Width
140.00 mm
- Height
171.00 mm
- Inputs (CEE power distributor)
CEE phase inverter plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
140.00 mm
- Material
Rubber
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145134 Bals Elektrotechnik CEE suspended distributor 57996 57996
User & Safety Instructions
User & Safety Instructions 3145134 Bals Elektrotechnik CEE suspended distributor 57996 57996
Description
UNI - Block, portable
Protection class: IP54
Case:
140 x 140 mm with carrying handle and stand
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1021

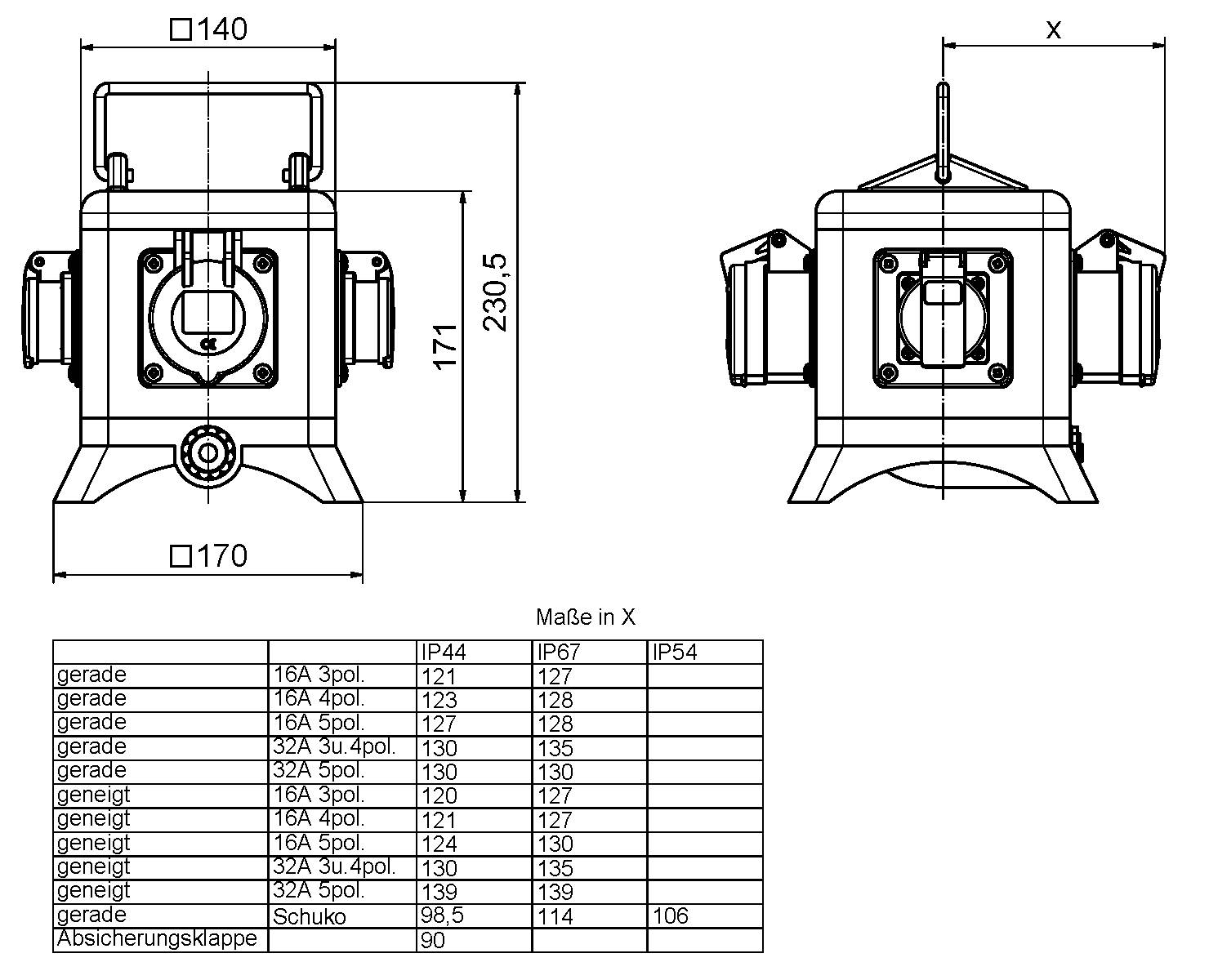

Device height: 171 mm, device width: 140 mm, device depth: 140 mm
Equipment:
2 x earthing contact socket-outlet 16A 230V IP 54
1 x CEE-socket 16A 400V 5P IP 54
Security/Protection measure:
1 x FI-circuit breaker 40/0.03A 4P
Cable entry/connection possibility:
CEE-phase inverter 16A 400V 5P LT mit
2m HO7RN-F5 G2.5 and additional
Rotary field measuring device (red and green dome)
Additional Information:
Wired as ready to connect
This text is machine translated.
Protection class: IP54
Case:
140 x 140 mm with carrying handle and stand
Colour: Lower part of the housing black similar to RAL 9017, upper part of housing yellow similar to RAL 1021
Device height: 171 mm, device width: 140 mm, device depth: 140 mm
Equipment:
2 x earthing contact socket-outlet 16A 230V IP 54
1 x CEE-socket 16A 400V 5P IP 54
Security/Protection measure:
1 x FI-circuit breaker 40/0.03A 4P
Cable entry/connection possibility:
CEE-phase inverter 16A 400V 5P LT mit
2m HO7RN-F5 G2.5 and additional
Rotary field measuring device (red and green dome)
Additional Information:
Wired as ready to connect
This text is machine translated.
