Basi 1304-0208 Additional door lock with latch Stainless steel look
EAN:
Part number:
Item no:
Highlights & Details

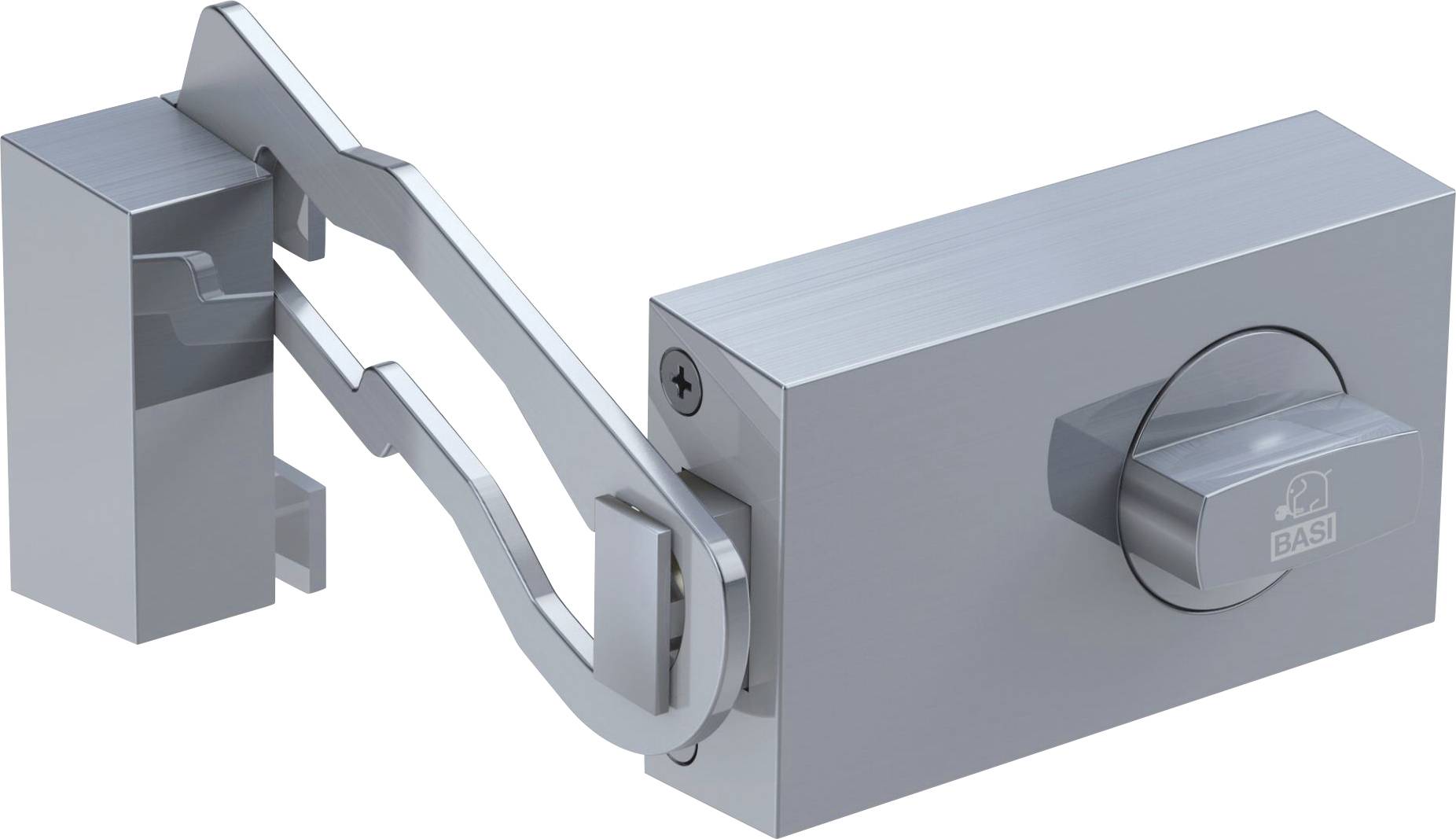

Additional door lock with locking bar
- BASI additional door lock, effective protection against violent breaking from the outside
- Fitted with a solid bar (2-speed) - DIN left / right usable
- Closure: Rotary knob on the inside / BASI outer cylinder available as an option
- Including frame dowel screws, mounting accessories, drilling template and installation instructions

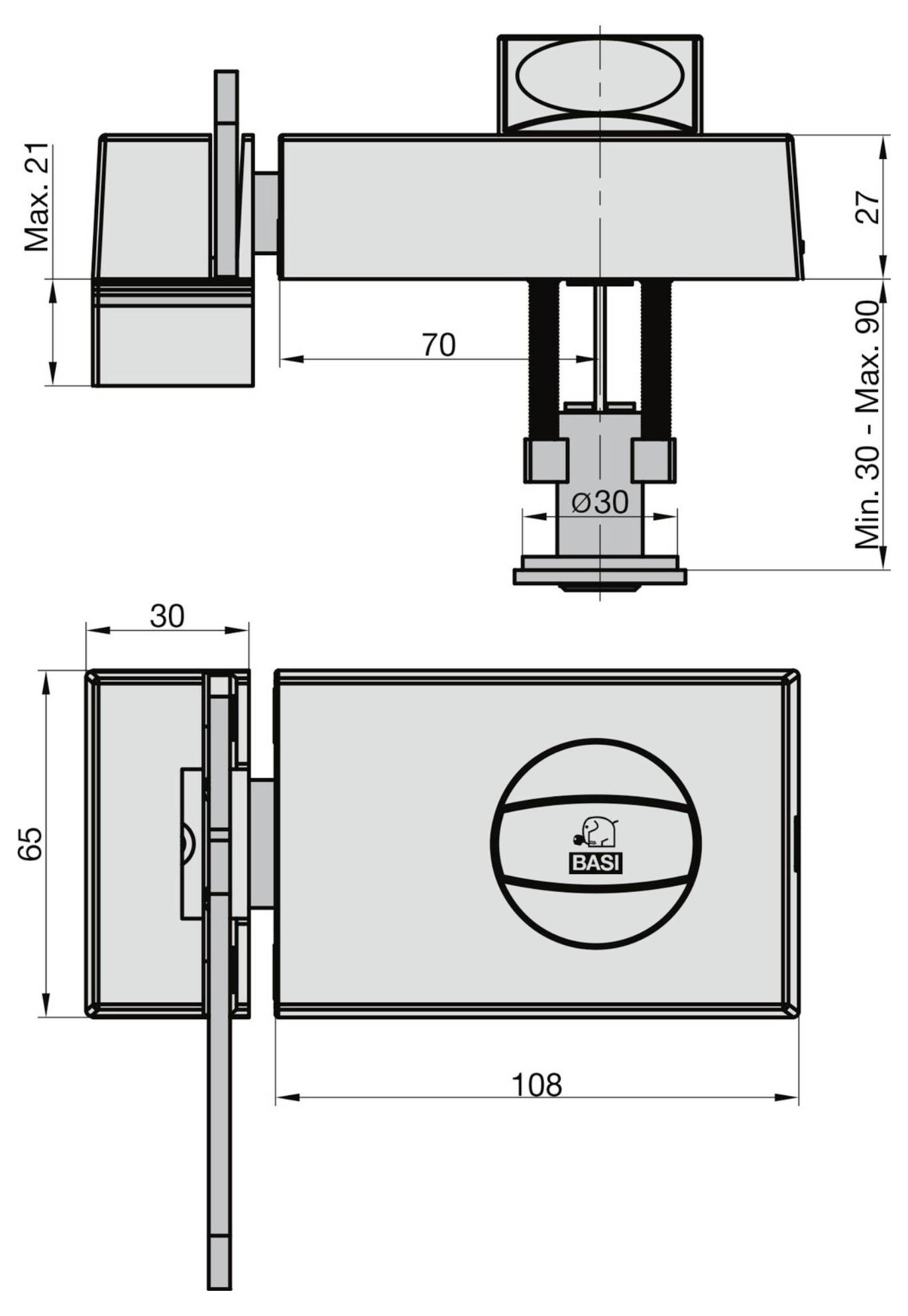

- Lock housing: Käntig / overall width: Approx. 115 mm / mandrel dimension: 45 mm
Technical specifications
- Product type
Additional door lock with latch
- Dim
(L x W) 116 mm x 65 mm
- Factory colour
Stainless steel look
- Width
65 mm
- Length
116 mm
- Depth
45 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929364 Basi 1304-0208 Additional door lock with latch Stainless steel look
Description
The safe and effective additional door safety device with additional BASI locking bar is mainly used for front doors or entrance doors. The square additional door lock can be used for all doors that open inwards. In combination with a BASI door cylinder, the door lock offers additional security in your home. The gap lock allows the visitor to be identified in advance before the door is fully opened. Thanks to the rotary knob, the door is quickly unlocked from the inside and thus ensures a fast escape route even in an emergency. The additional lock can be fitted with or without an external cylinder. The additional fuse is fitted to the frame and the door panel. All mounting accessories for mounting are included in the delivery. (Screws, drilling template, assembly instructions) Additional DIN door lock can be used left / right. Lock housing: Käntig / overall width: Approx. 115 mm / mandrel dimension: 45 mm
Suitable accessories:
BASI Profile outer cylinder Part No.: V5040-0000
Additional spacer plate set Part No.: 1303-0001
This text is machine translated.
Suitable accessories:
BASI Profile outer cylinder Part No.: V5040-0000
Additional spacer plate set Part No.: 1303-0001
This text is machine translated.
Scope of delivery
- Additional door lock
- Frame plug screw
- Fitting Material
