Basi 5010-2222 Euro profile cylinder (short) 22 / 22mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Profile in brief cylinder
- Safe short profile cylinder from the AS series - for thin doors, glass doors or metal doors
- With drill-out protection, makes it difficult to break or open the cylinder
- Supplied with 3 keys, locking keys
- Tested according to DIN 18252:2006-12
- Material: Nickel-plated brass
Technical specifications
- Product type
Euro profile cylinder (short)
- Cylinder dimensions
22 / 22mm
- Cylinder inside diameter
22 mm
- Cylinder (outside diameter)
22 mm
- Size
22/22 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1928477 Basi 5010-2222 Euro profile cylinder (short) 22 / 22mm
User & Safety Instructions
User & Safety Instructions 1928477 Basi 5010-2222 Euro profile cylinder (short) 22 / 22mm
Information
Information 1928477 Basi 5010-2222 Euro profile cylinder (short) 22 / 22mm
Description

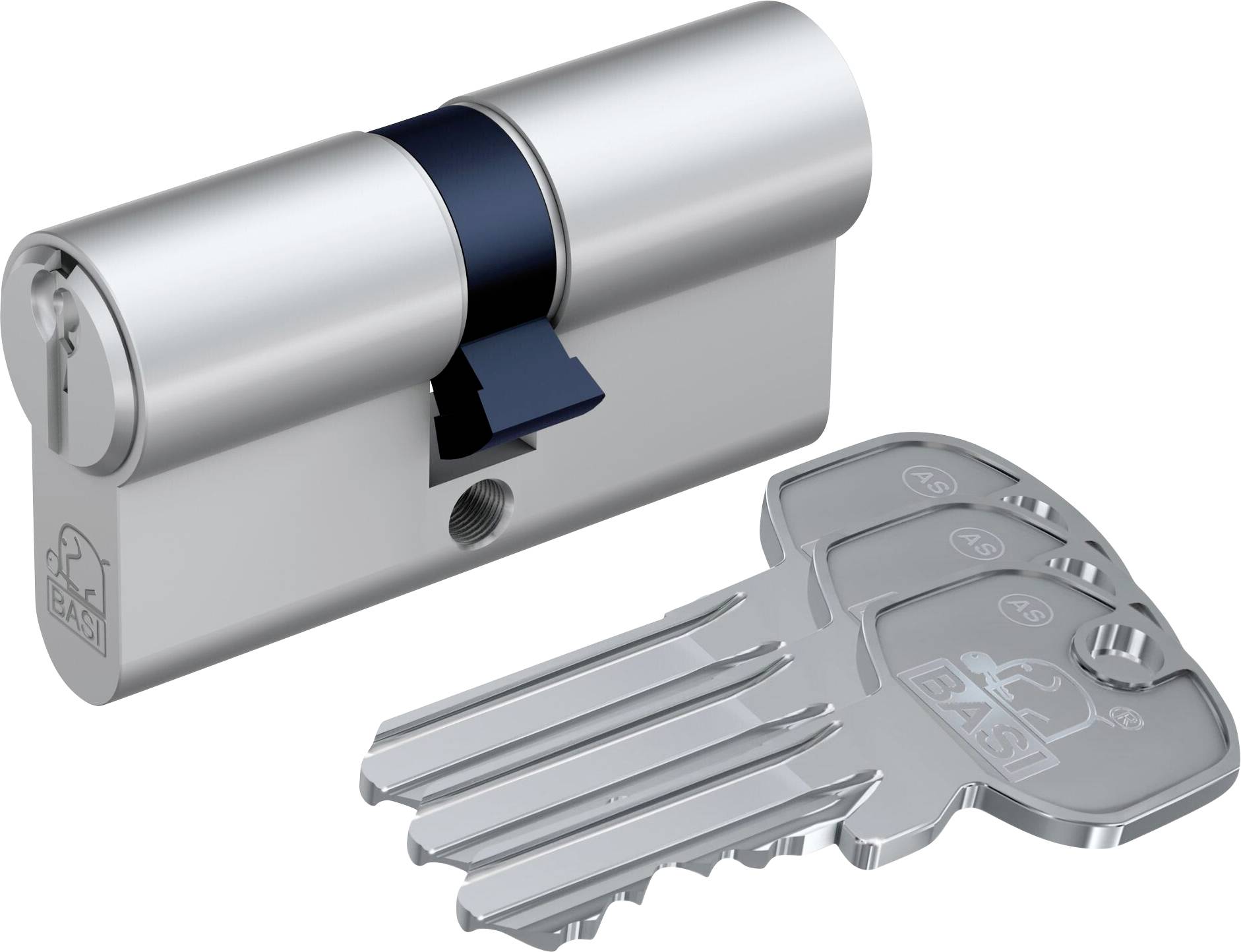

The safe AS short cylinder range from BASI. Short cylinders can be operated from two sides like double profile cylinders. However, due to their short length, they are suitable for thin doors, glass doors or metal doors. The robust cylinder is supplied with 3 keys. Due to the different closing system, only the 3 cylinder keys supplied are suitable. There is always the possibility of having the regional key service produce replacement keys. The solid cylinder made of matt nickel-plated brass also comes with a drill-out protection, which prevents/makes it difficult to drill out possible burglars. The BASI cylinders are manufactured with the highest quality being precisely observed. Production and testing is carried out in accordance with DIN standard 18252:2006-12.
This text is machine translated.
This text is machine translated.
Features
- Matt nickel-plated brass
Scope of delivery
- Profile cylinder
- 3 key
- Fit screw (fixing screws)
