Name: Basi 5030-0510 Euro cylinder with knob 35 / 40mm
Brand: Basi
SKU: 1928550

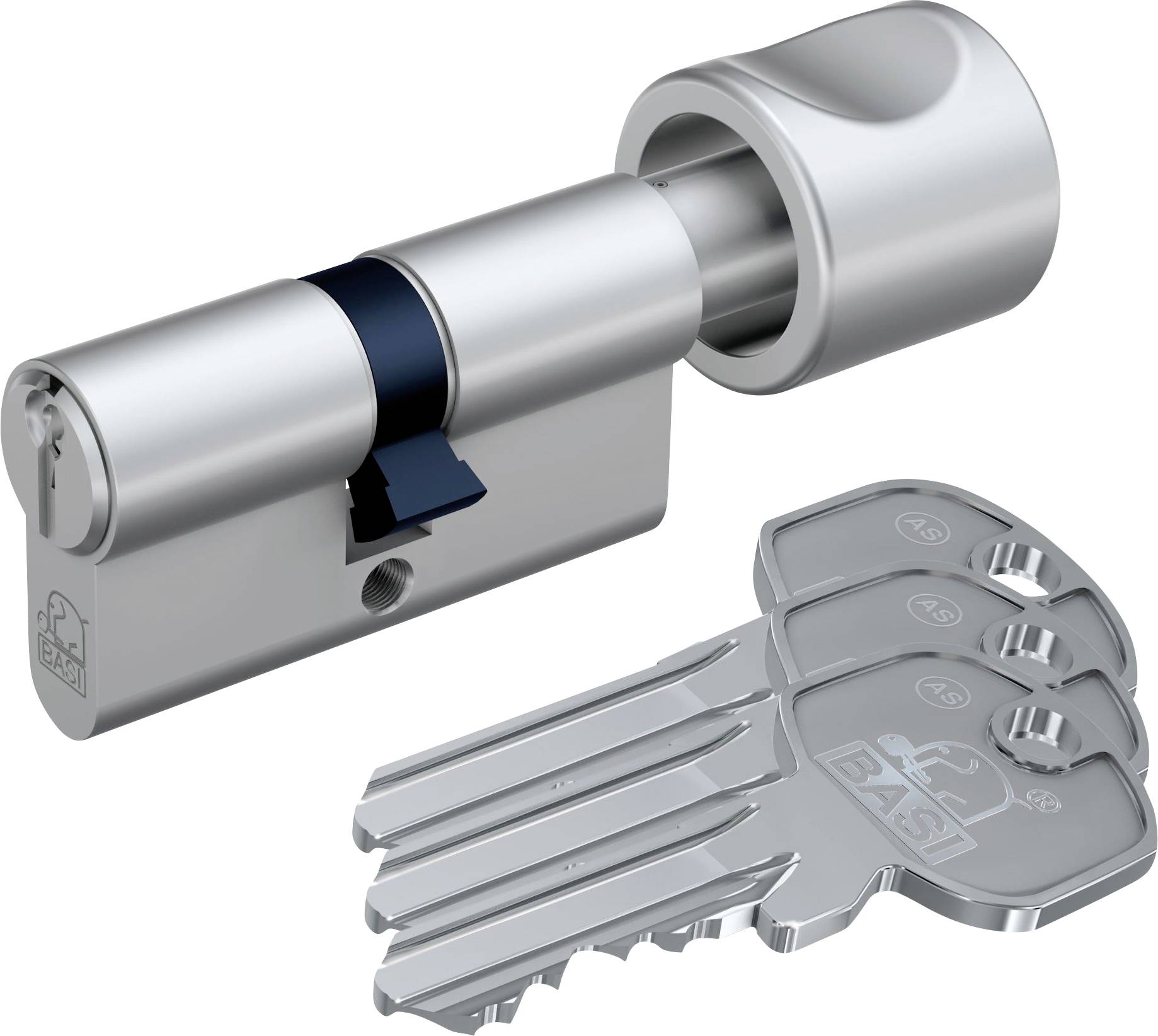

'A silver cylinder lock with three matching keys beside it, indicating a security or locking mechanism theme.'

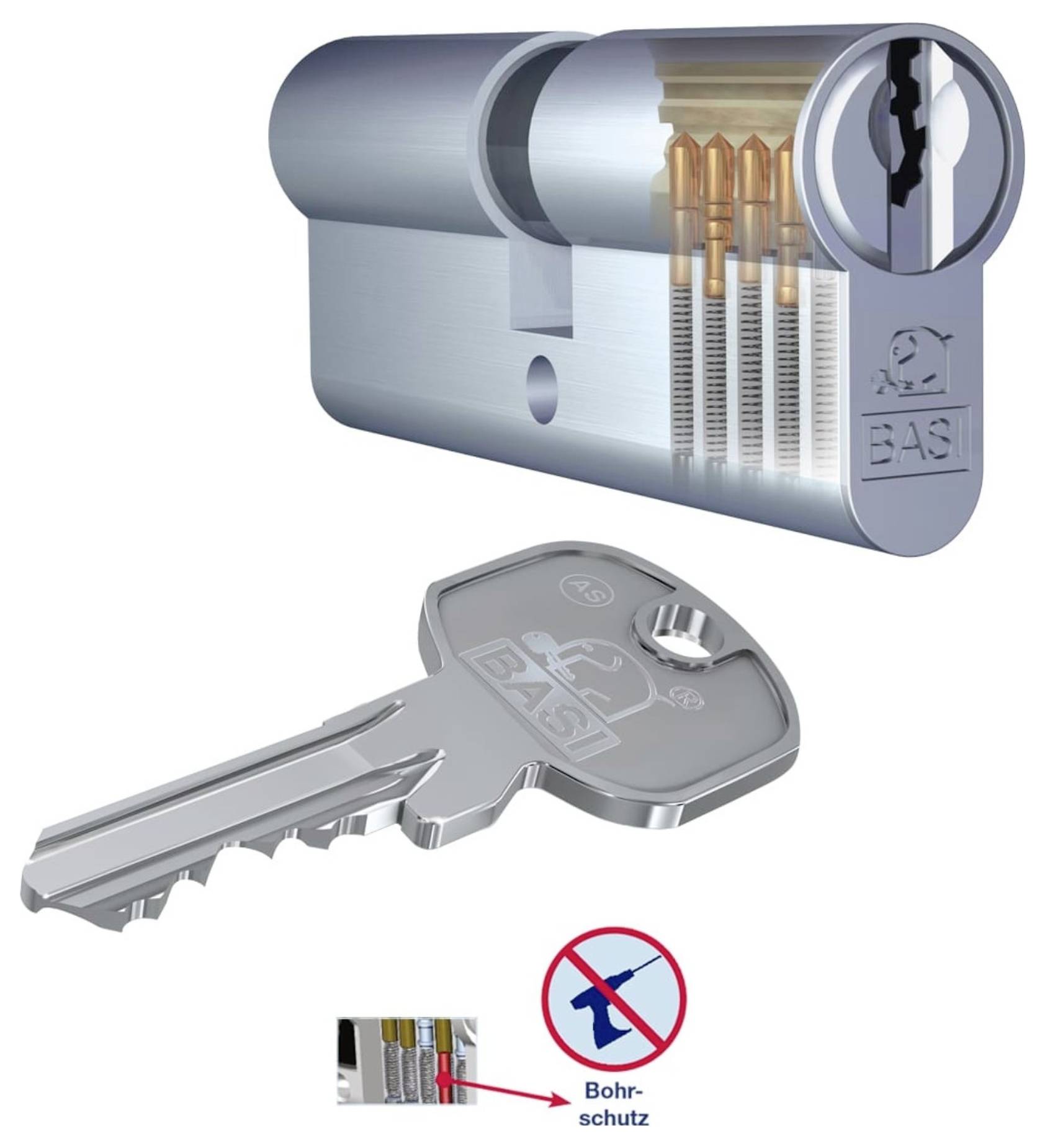

'A silver cylinder lock with a side key slot and exposed internal pins. A matching key is shown below. A diagram indicates a drill protection feature.'

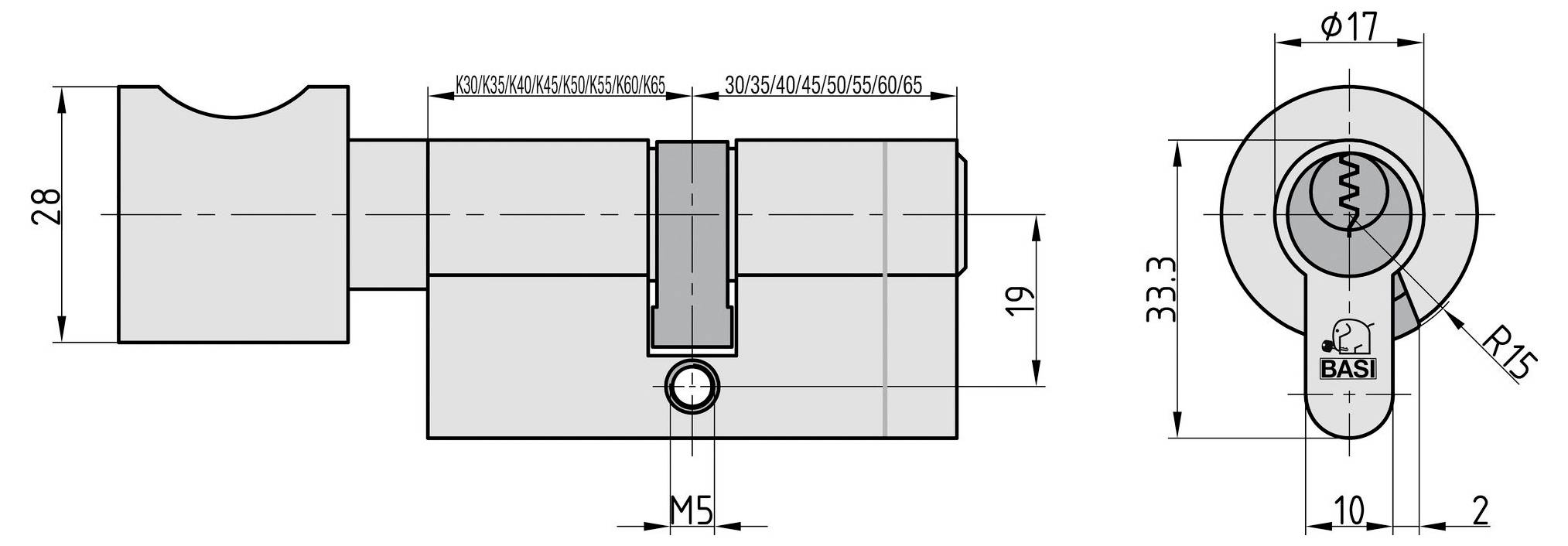

'Technical diagram of a cylindrical lock, showing side and top views with dimensions. Key elements include cylinder size, cam position, and screw hole locations.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Profile Knauf cylinder

Different hazardous for simultaneous locking
One-sided Knauf
3 key

Technical specifications

Product type: Euro cylinder with knob

Cylinder dimensions: 35 / 40mm

Cylinder inside diameter: 35 mm

Cylinder (outside diameter): 40 mm

Size: K 35/40 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928550 Basi 5030-0510 Euro cylinder with knob 35 / 40mm

User & Safety Instructions

User & Safety Instructions 1928550 Basi 5030-0510 Euro cylinder with knob 35 / 40mm

Information

Information 1928550 Basi 5030-0510 Euro cylinder with knob 35 / 40mm

Description

AS-K 35/40 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

Matt nickel-plated brass

Scope of delivery

Profile cylinder
3 key
Fit screw (fixing screws)

Description

AS-K 35/40 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.
