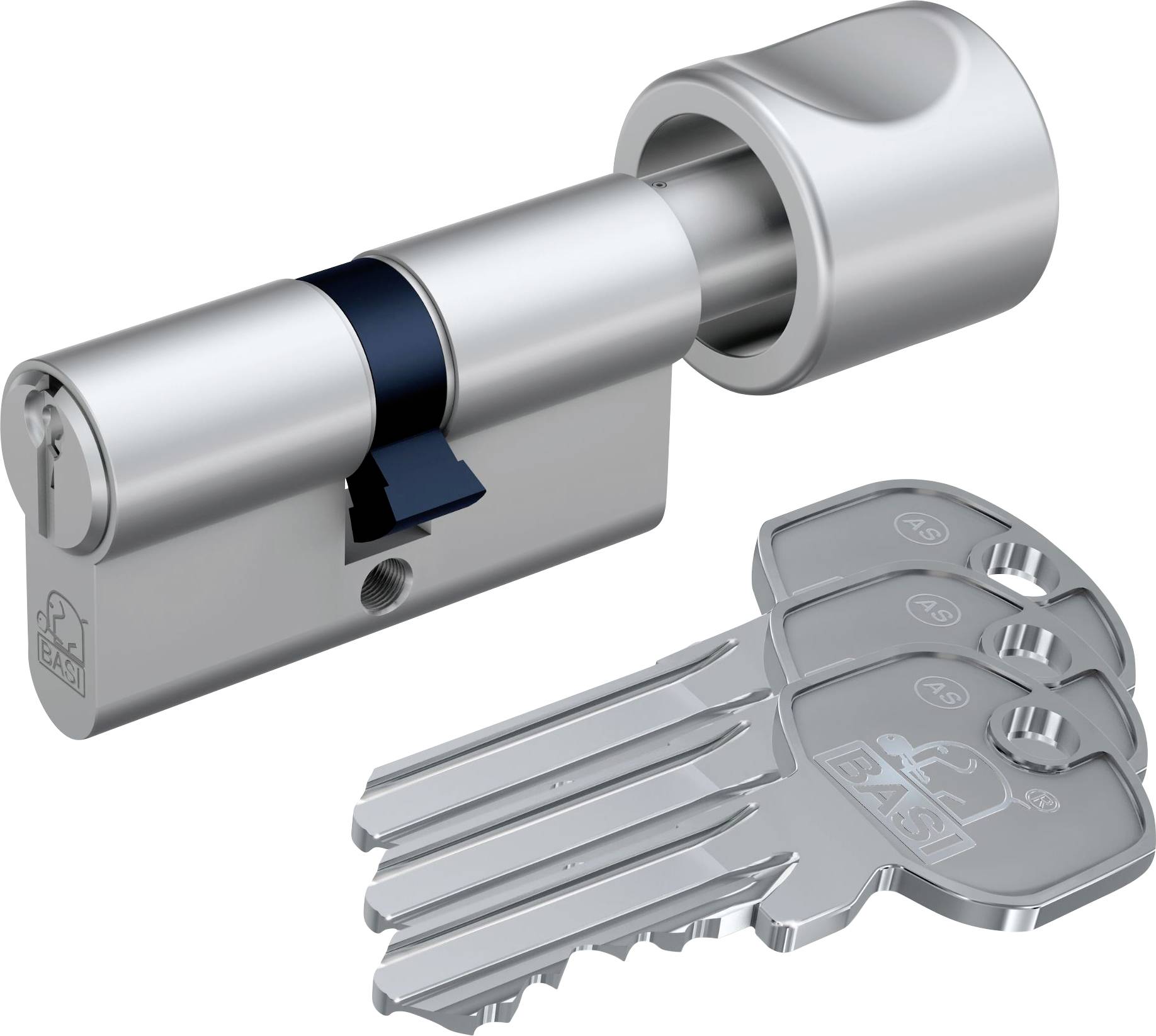

Basi 5030-0530 Euro cylinder with knob 35 / 60mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Profile Knauf cylinder
- Different hazardous for simultaneous locking
- One-sided Knauf
- 3 key
Technical specifications
- Product type
Euro cylinder with knob

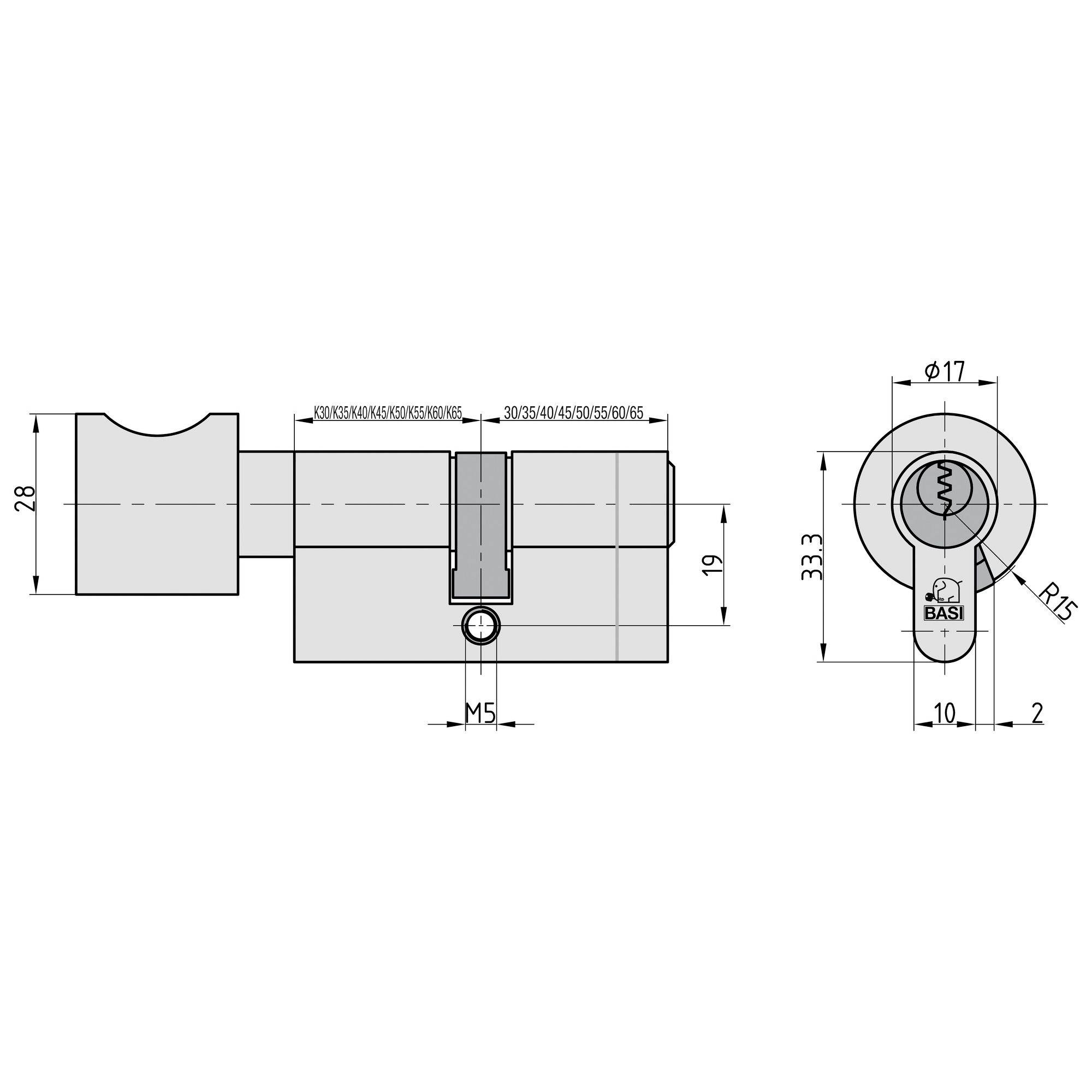

- Cylinder dimensions
35 / 60mm
- Cylinder inside diameter
35 mm
- Cylinder (outside diameter)
60 mm
- Size
K 35/60 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1928554 Basi 5030-0530 Euro cylinder with knob 35 / 60mm
User & Safety Instructions
User & Safety Instructions 1928554 Basi 5030-0530 Euro cylinder with knob 35 / 60mm
Information
Information 1928554 Basi 5030-0530 Euro cylinder with knob 35 / 60mm
Description
AS-K 35/60 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12
This text is machine translated.
This text is machine translated.
Features
- Matt nickel-plated brass
Scope of delivery
- Profile cylinder
- 3 key
- Fit screw (fixing screws)
