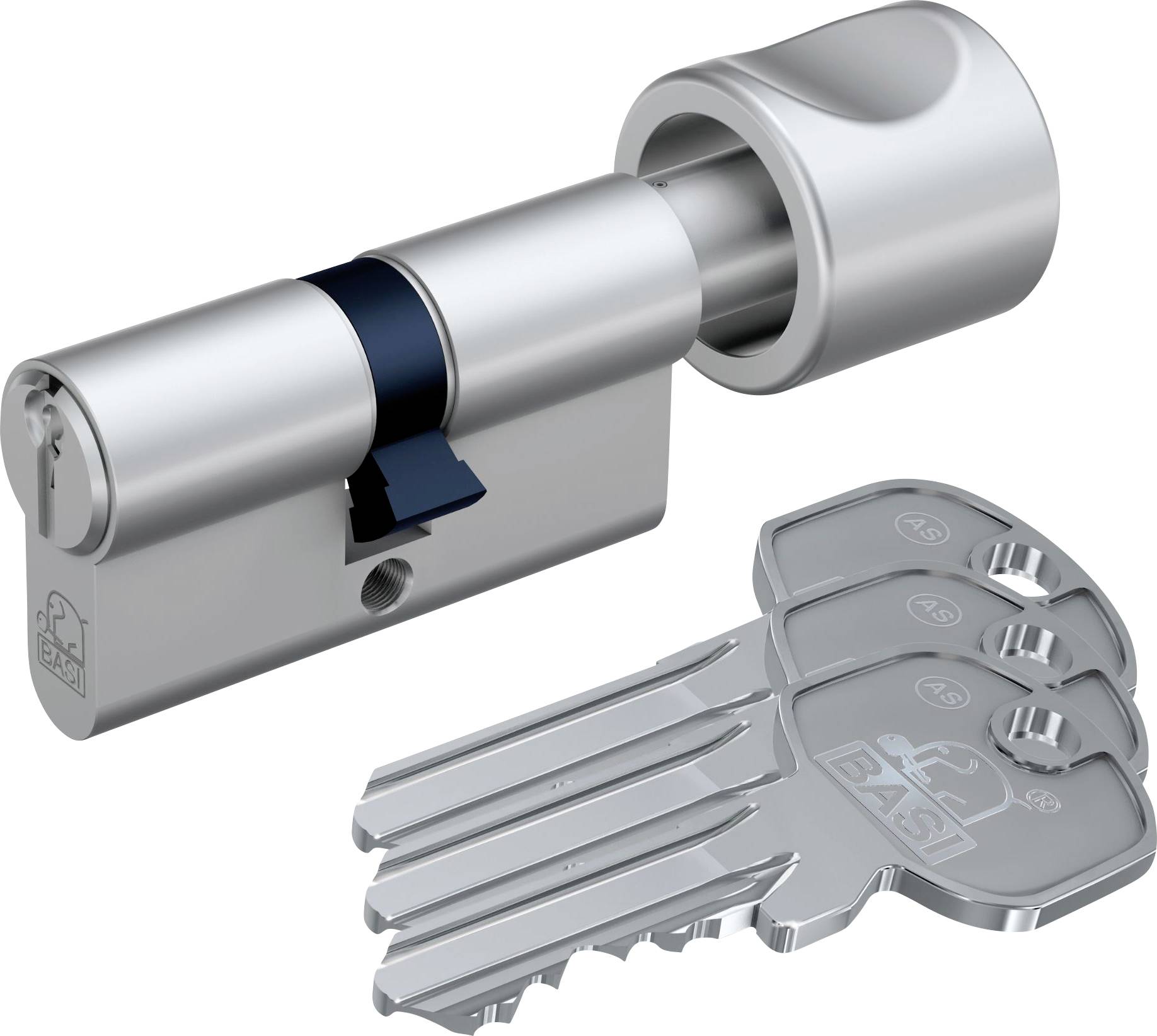

Name: Basi 5030-1500 Euro cylinder with knob 45 / 30mm
Brand: Basi
SKU: 1928564

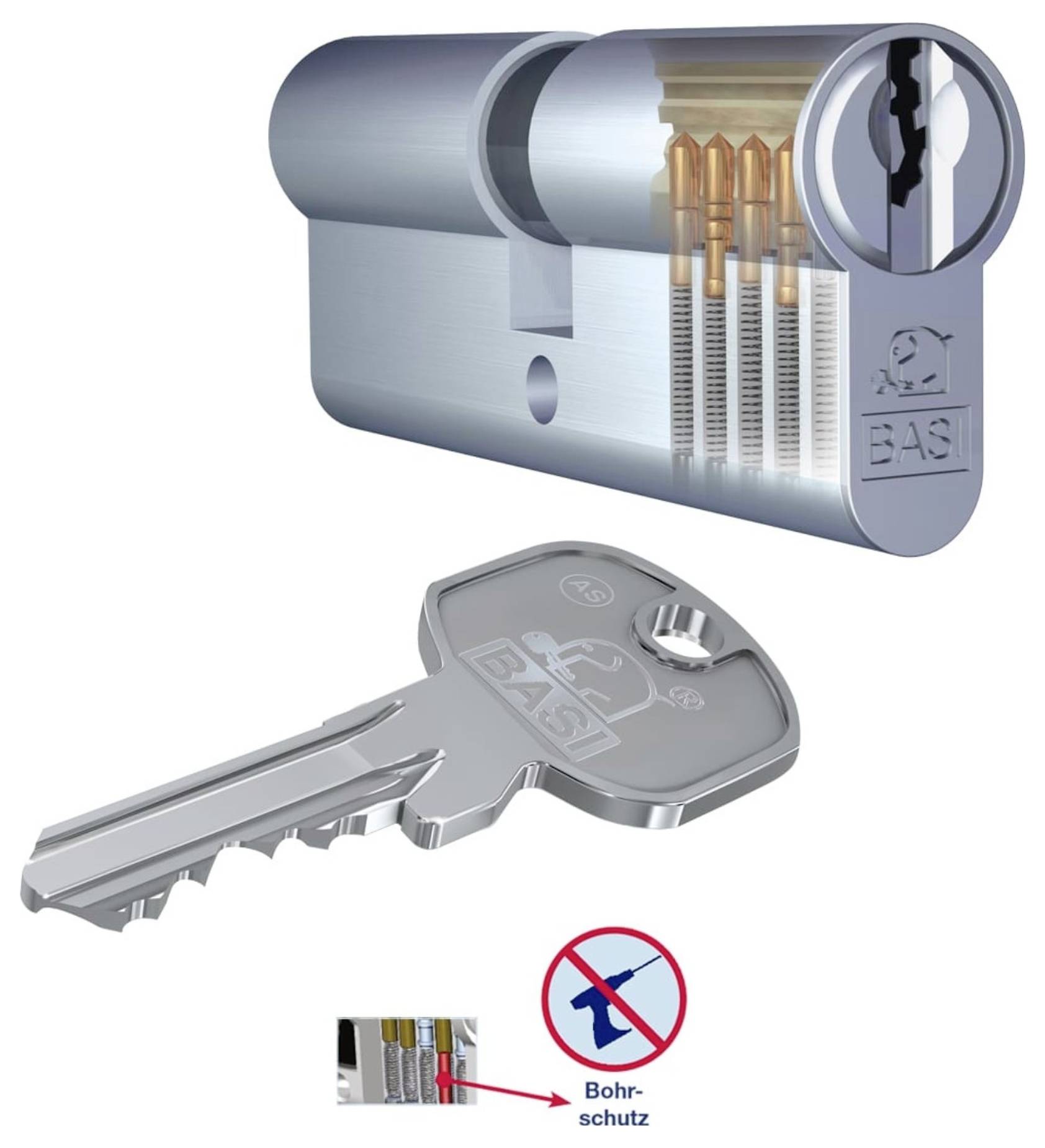

Cylinder lock and key mechanism shown, highlighting internal pins. Inserted key aligns pins for unlocking. Notable 'Bohrschutz' feature visible.

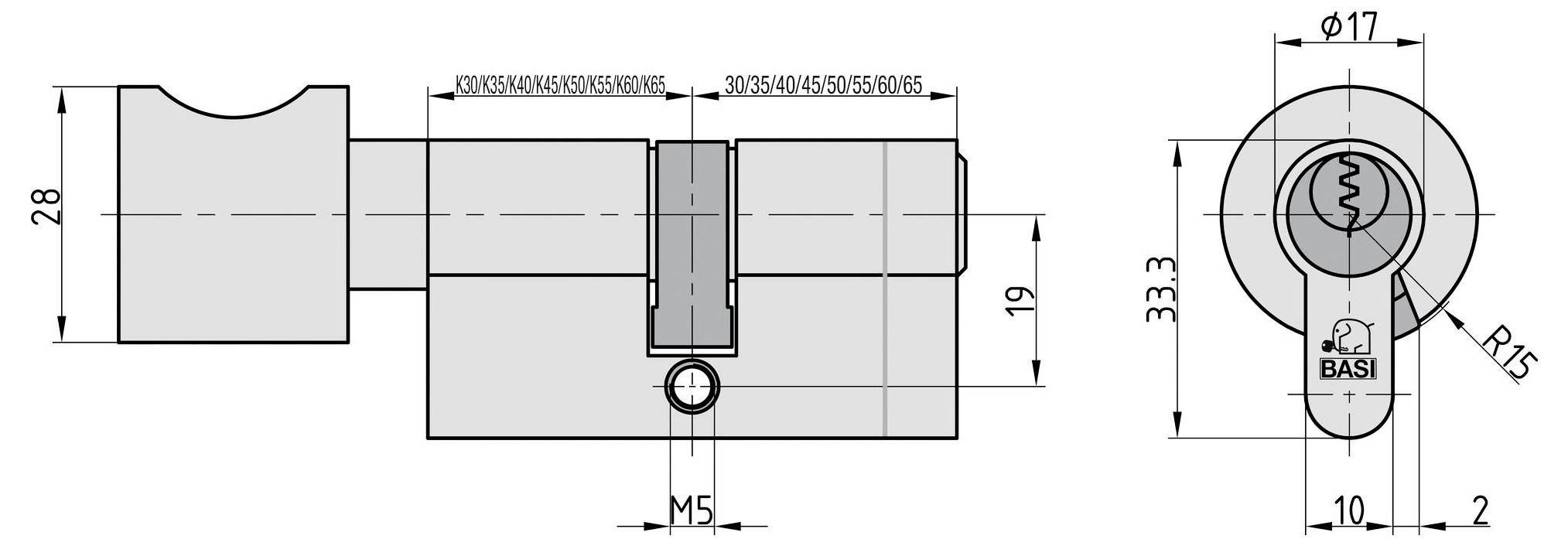

'Technical diagram of a BASI cylinder lock showing measurements: 28mm width, 33.3mm height, and 17mm diameter. Features a key slot.'

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Profile Knauf cylinder

Different hazardous for simultaneous locking
One-sided Knauf
3 key

Technical specifications

Product type: Euro cylinder with knob

Cylinder dimensions: 45 / 30mm

Cylinder inside diameter: 45 mm

Cylinder (outside diameter): 30 mm

Size: K 45/30 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928564 Basi 5030-1500 Euro cylinder with knob 45 / 30mm

User & Safety Instructions

User & Safety Instructions 1928564 Basi 5030-1500 Euro cylinder with knob 45 / 30mm

Information

Information 1928564 Basi 5030-1500 Euro cylinder with knob 45 / 30mm

Description

AS-K 45/30 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

Matt nickel-plated brass

Scope of delivery

Profile cylinder
3 key
Fit screw (fixing screws)

Description

AS-K 45/30 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12
