Building Service Technology & Smart LivingSecurity SystemsDoor & Window ProtectionKeys & Cylinder Locks

Basi 5030-3000 Euro cylinder with knob 60 / 30mm

A double cylinder made of metal with a keyhole and three accompanying keys. Suitable for door security applications.

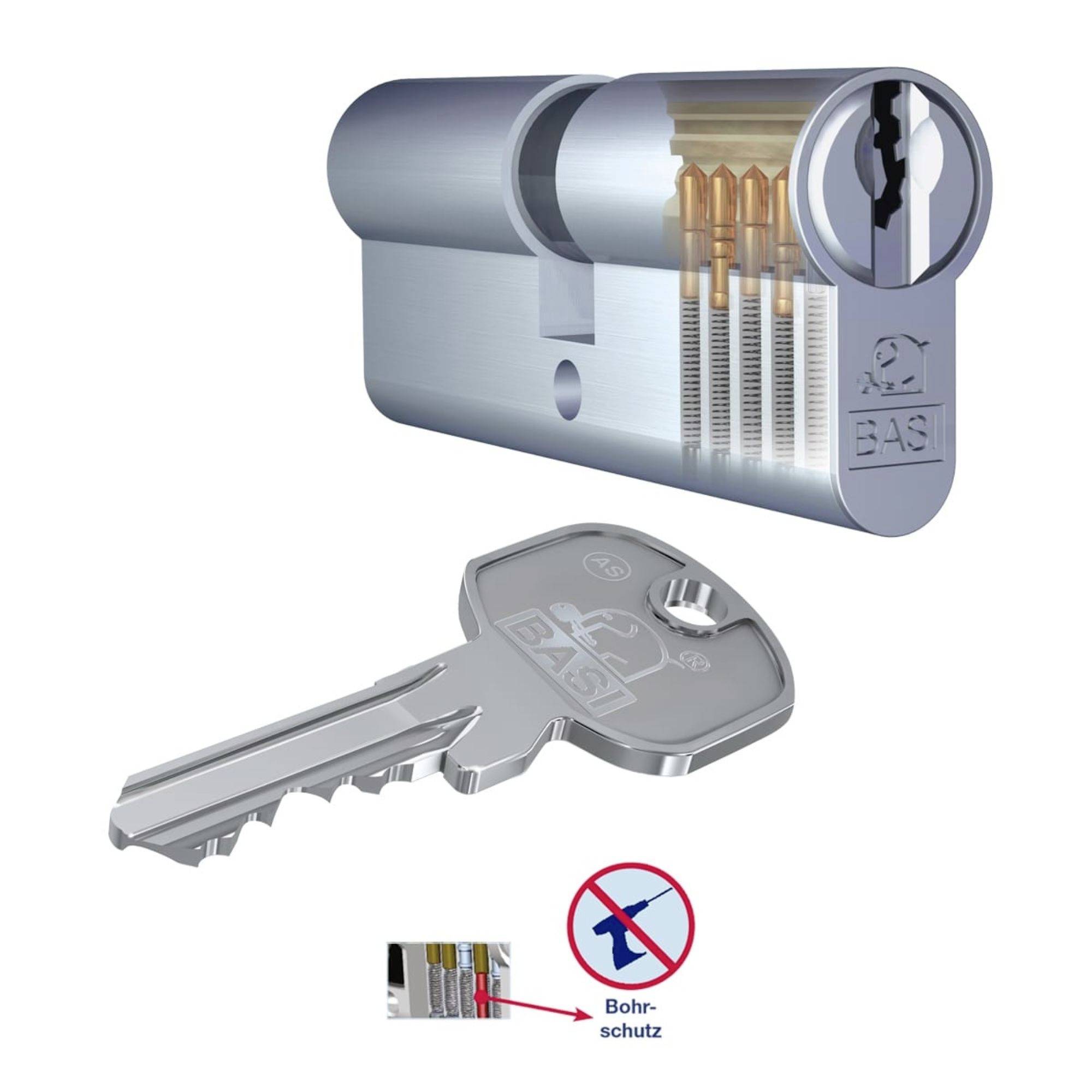

Cylinder with key. The cylinder shows the key channel structure and securing pins. Below note 'Drilling protection' with symbol.

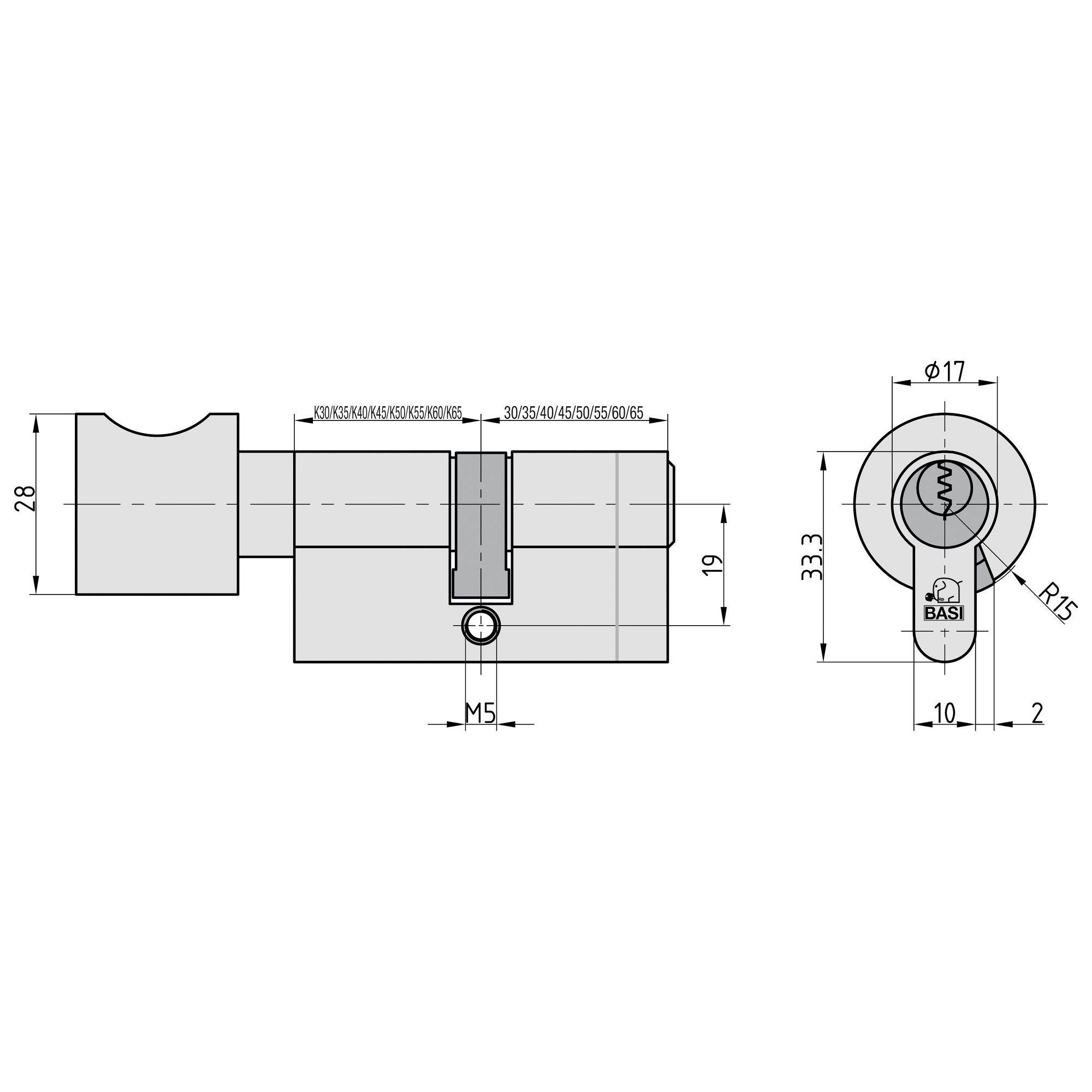

Technical drawing of a cylinder lock with dimensions. Shows side and top view, with parts marked with measurements in millimetres.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Profile Knauf cylinder

  • Different hazardous for simultaneous locking
  • One-sided Knauf
  • 3 key

Technical specifications

Product type

Euro cylinder with knob

Cylinder dimensions

60 / 30mm

Cylinder inside diameter

60 mm

Cylinder (outside diameter)

30 mm

Size

K 60/30 mm

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928580 Basi 5030-3000 Euro cylinder with knob 60 / 30mm

User & Safety Instructions

User & Safety Instructions 1928580 Basi 5030-3000 Euro cylinder with knob 60 / 30mm

Information

Information 1928580 Basi 5030-3000 Euro cylinder with knob 60 / 30mm

Description

AS-K 60/30 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

  • Matt nickel-plated brass

Scope of delivery

  • Profile cylinder
  • 3 key
  • Fit screw (fixing screws)
