Name: Basi 5030-3515 Euro cylinder with knob 65 / 45mm
Brand: Basi
SKU: 1928587

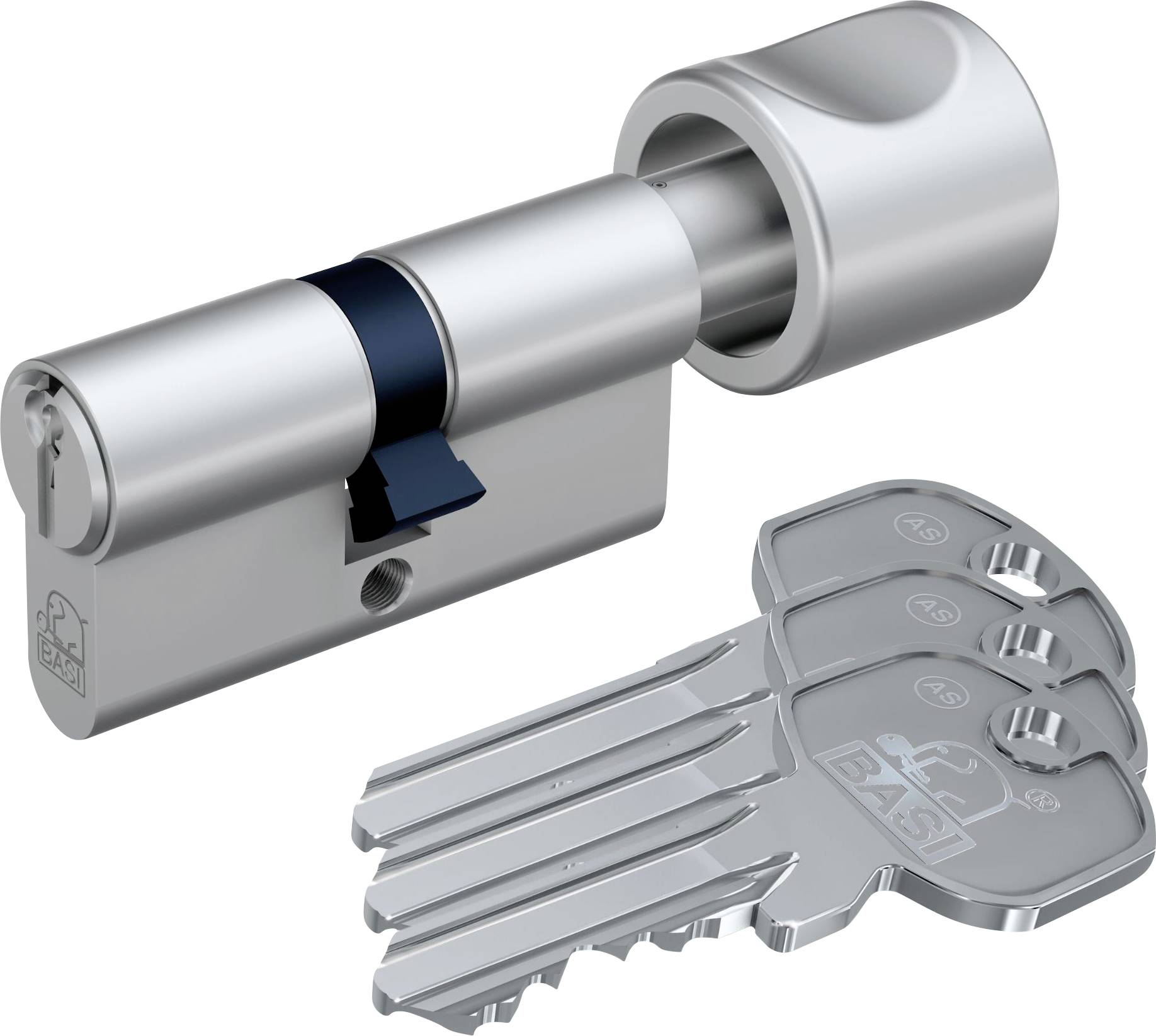

A silver lock cylinder with three matching keys beside it. Primarily used to illustrate a door locking system.

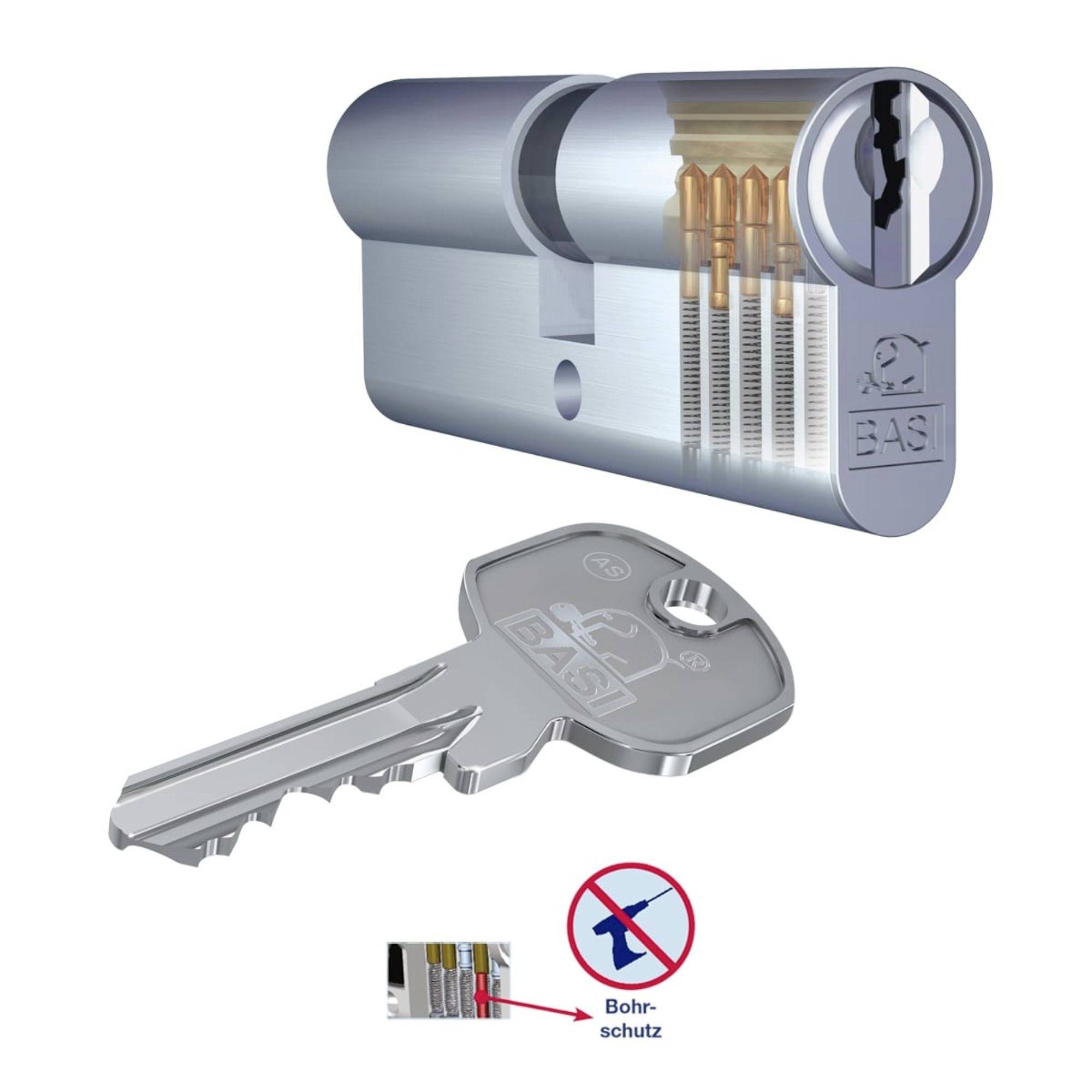

A cylinder lock and a metal key with a drill protection symbol underneath, showing a crossed-out screwdriver.

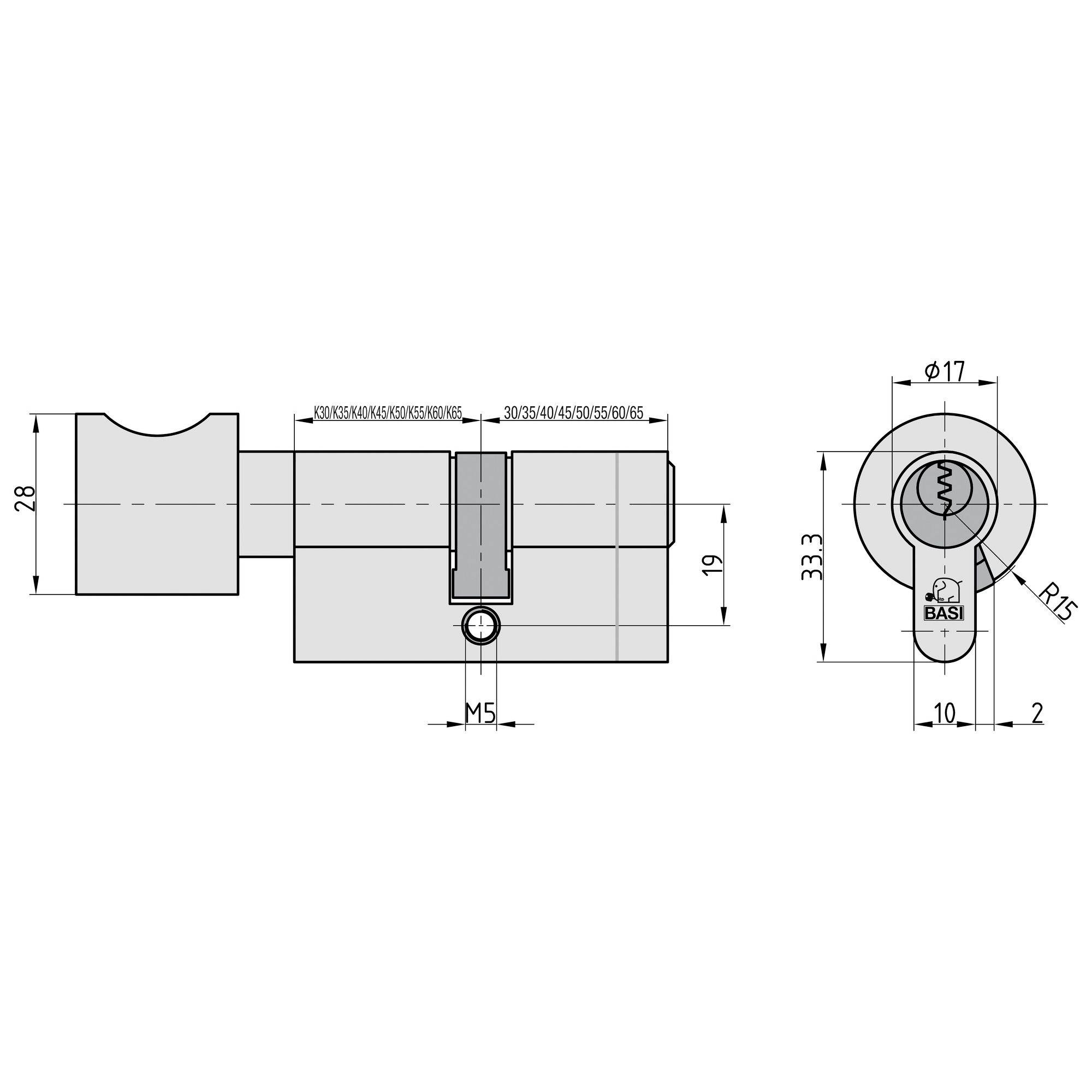

Technical drawing of a lock cylinder with dimensions. Left side view showing length and width, right front view.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Profile Knauf cylinder

Different hazardous for simultaneous locking
One-sided Knauf
3 key

Technical specifications

Product type: Euro cylinder with knob

Cylinder dimensions: 65 / 45mm

Cylinder inside diameter: 65 mm

Cylinder (outside diameter): 45 mm

Size: K 65/45 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928587 Basi 5030-3515 Euro cylinder with knob 65 / 45mm

User & Safety Instructions

User & Safety Instructions 1928587 Basi 5030-3515 Euro cylinder with knob 65 / 45mm

Information

Information 1928587 Basi 5030-3515 Euro cylinder with knob 65 / 45mm

Description

AS-K 65/45 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

Matt nickel-plated brass

Scope of delivery

Profile cylinder
3 key
Fit screw (fixing screws)

Description

AS-K 65/45 mm profile Knauf cylinder, VS, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.
