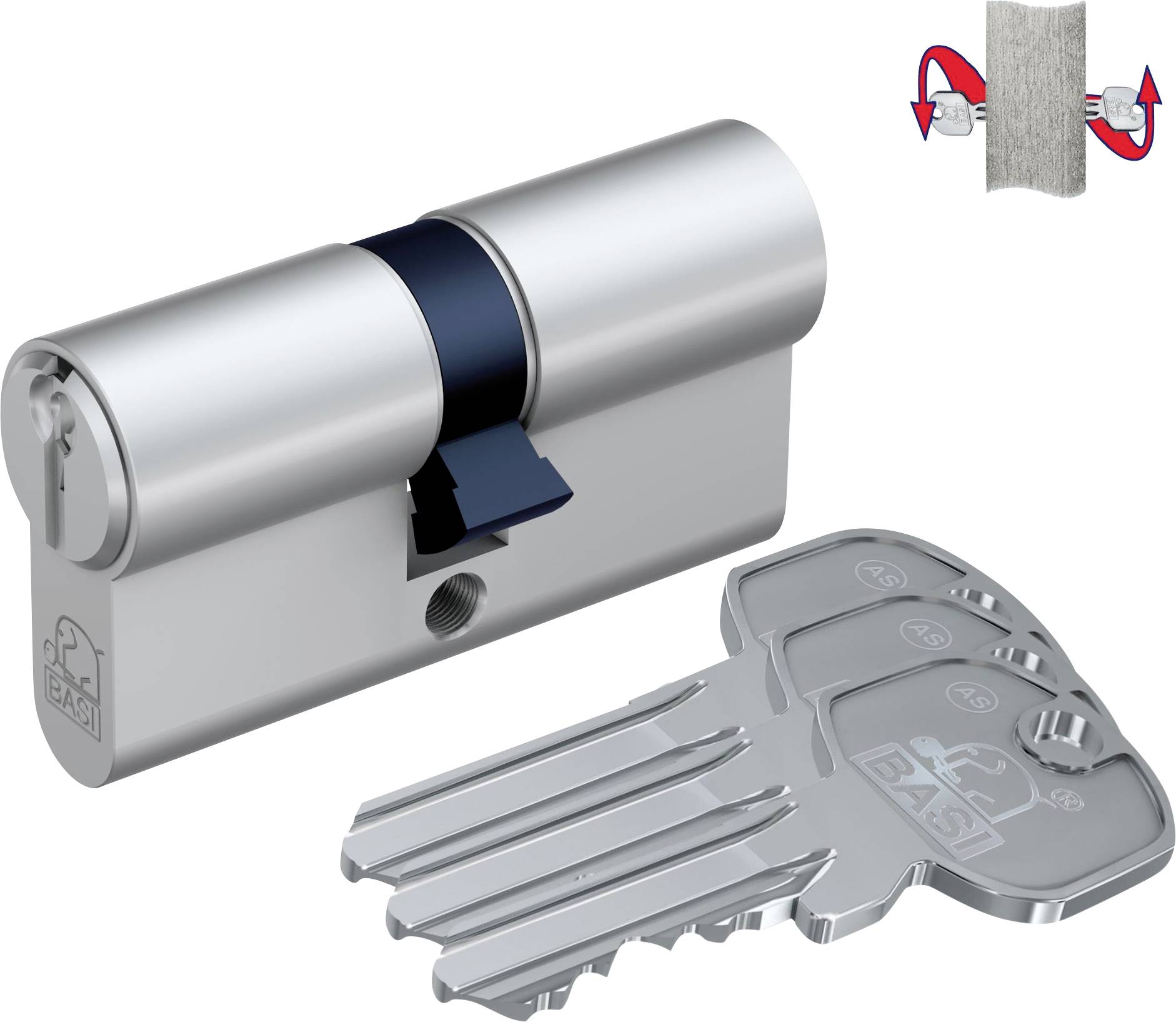

Basi 5200-0050 Euro profile cylinder 30 / 80mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Profile Double cylinder
- Secure profile double cylinder - for front doors / entrance doors

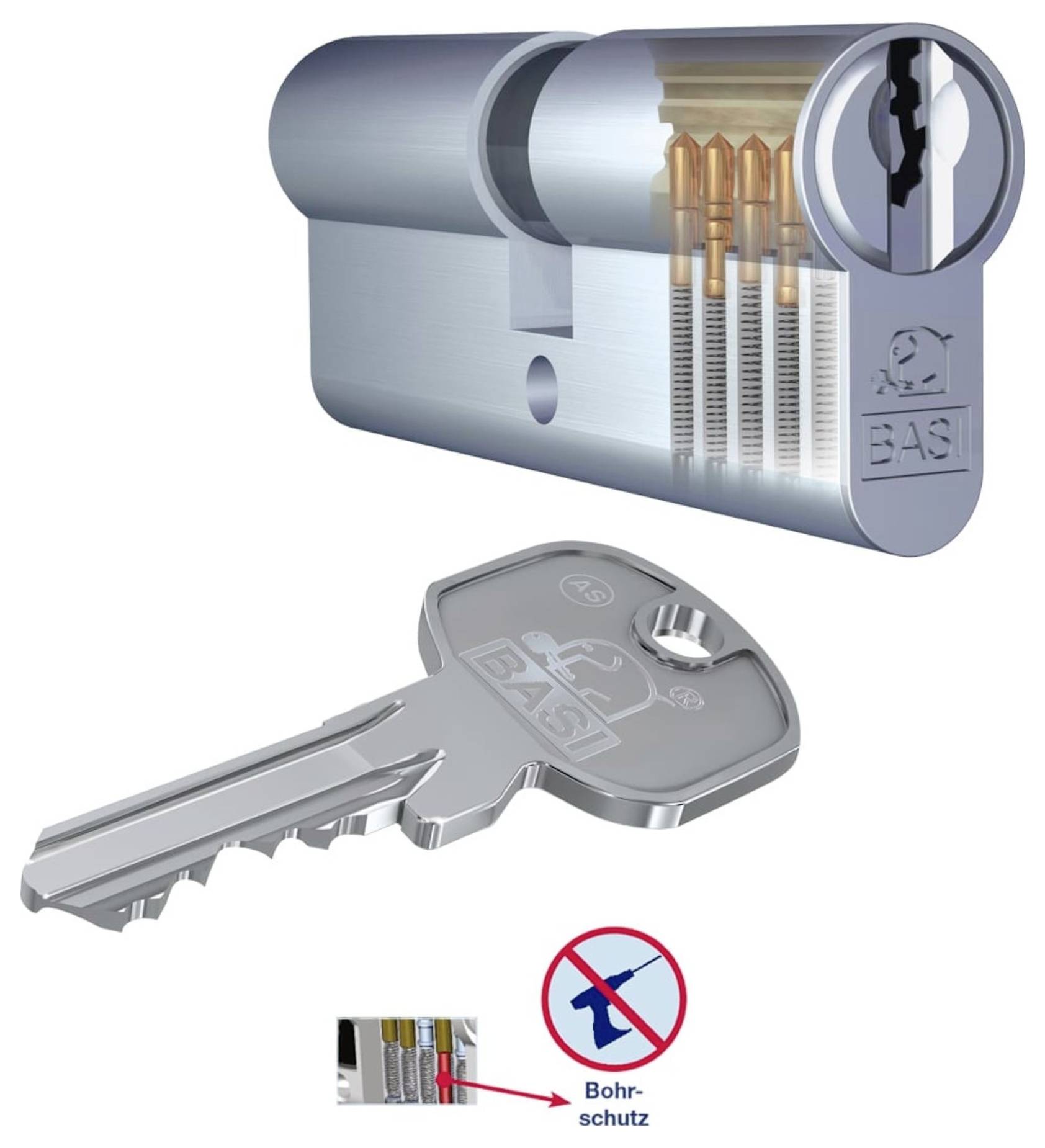

- With drill-out protection, makes it difficult to break or open the cylinder
- Supplied with 3 keys, locking keys
- With emergency and hazard features.
- Material: Nickel-plated brass, tested according to DIN 18252:2006-12
Technical specifications
- Product type
Euro profile cylinder

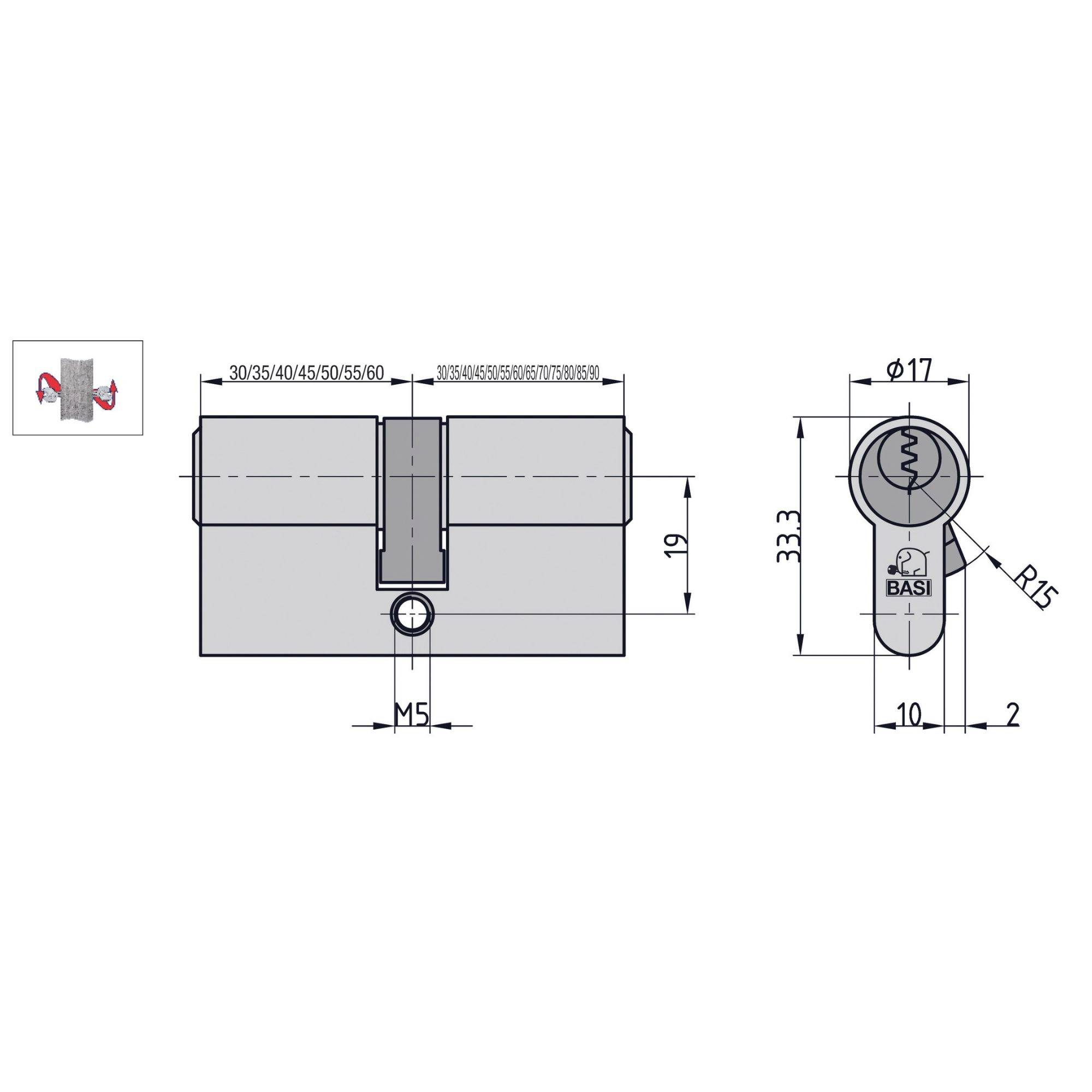

- Cylinder dimensions
30 / 80mm
- Cylinder inside diameter
30 mm
- Cylinder (outside diameter)
80 mm
- Size
30/80 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1928713 Basi 5200-0050 Euro profile cylinder 30 / 80mm
User & Safety Instructions
User & Safety Instructions 1928713 Basi 5200-0050 Euro profile cylinder 30 / 80mm
Information
Information 1928713 Basi 5200-0050 Euro profile cylinder 30 / 80mm
Description
The safe AS profile cylinder series with emergency and danger function from BASI. The robust double cylinder is supplied with 3 keys. Due to the different closing system, only the 3 supplied keys are suitable. Of course, there is always the possibility of having the regional key service produce replacement keys. The AS double cylinder can be used as an ideal lock for the entrance to the house. It is suitable as a cylinder for front doors or entrance doors. The solid brass profile cylinder comes with a drill-out protection, which prevents / makes it difficult to drill on possible burglars. The core of the cylinder contains 5 pin feeds. The BASI cylinders are manufactured with the highest quality being precisely observed. The production and testing is done according to DIN standard 18252:2006-12.
This text is machine translated.
This text is machine translated.
Features
- Matt nickel-plated brass
Scope of delivery
- Profile cylinder
- 3 key
- Fit screw (fixing screws)
