Basi 5200-0520 Euro profile cylinder 35 / 50mm

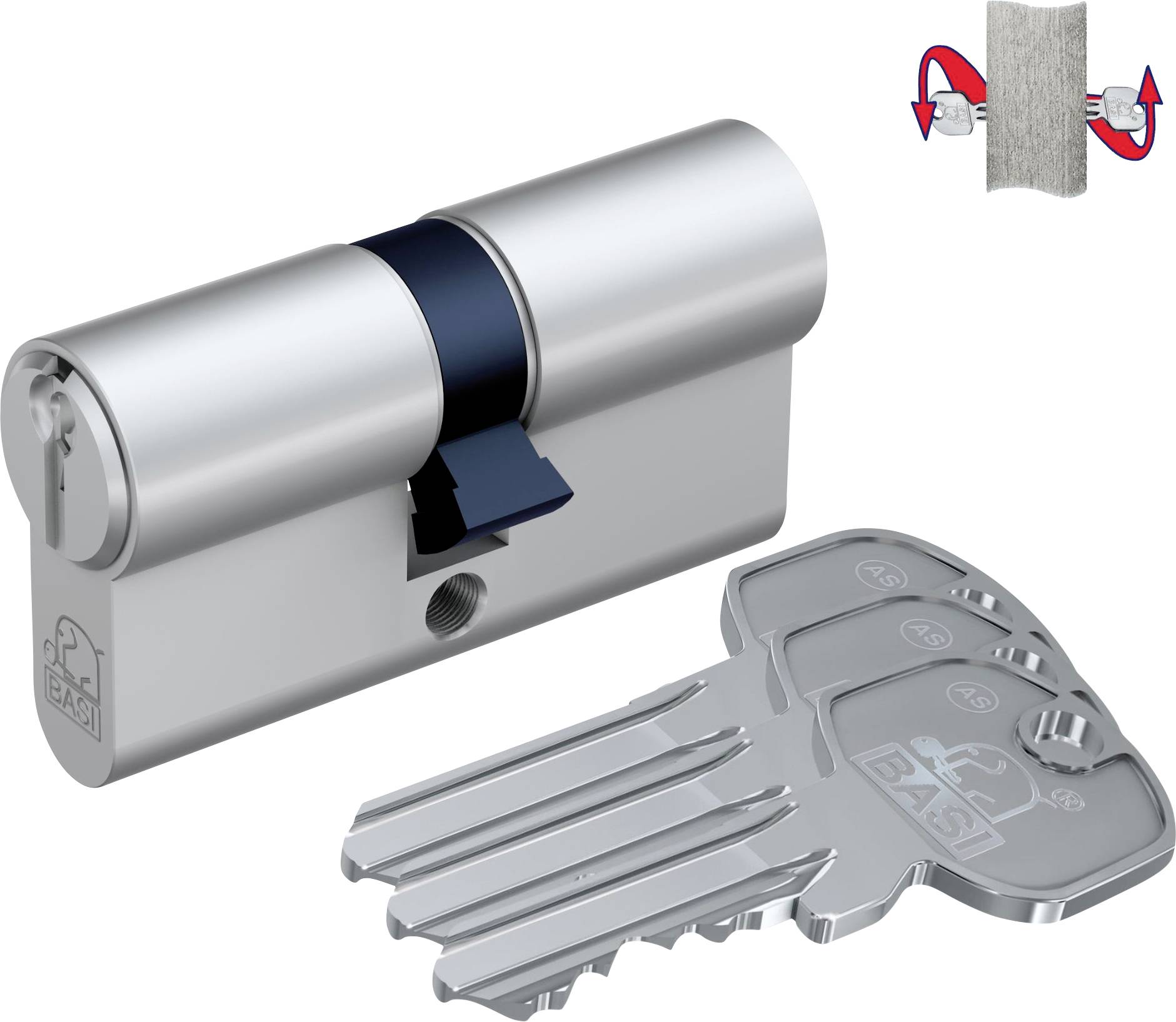

'A silver door lock cylinder with a key beside it. An illustration above shows its rotation mechanism for locking and unlocking.'

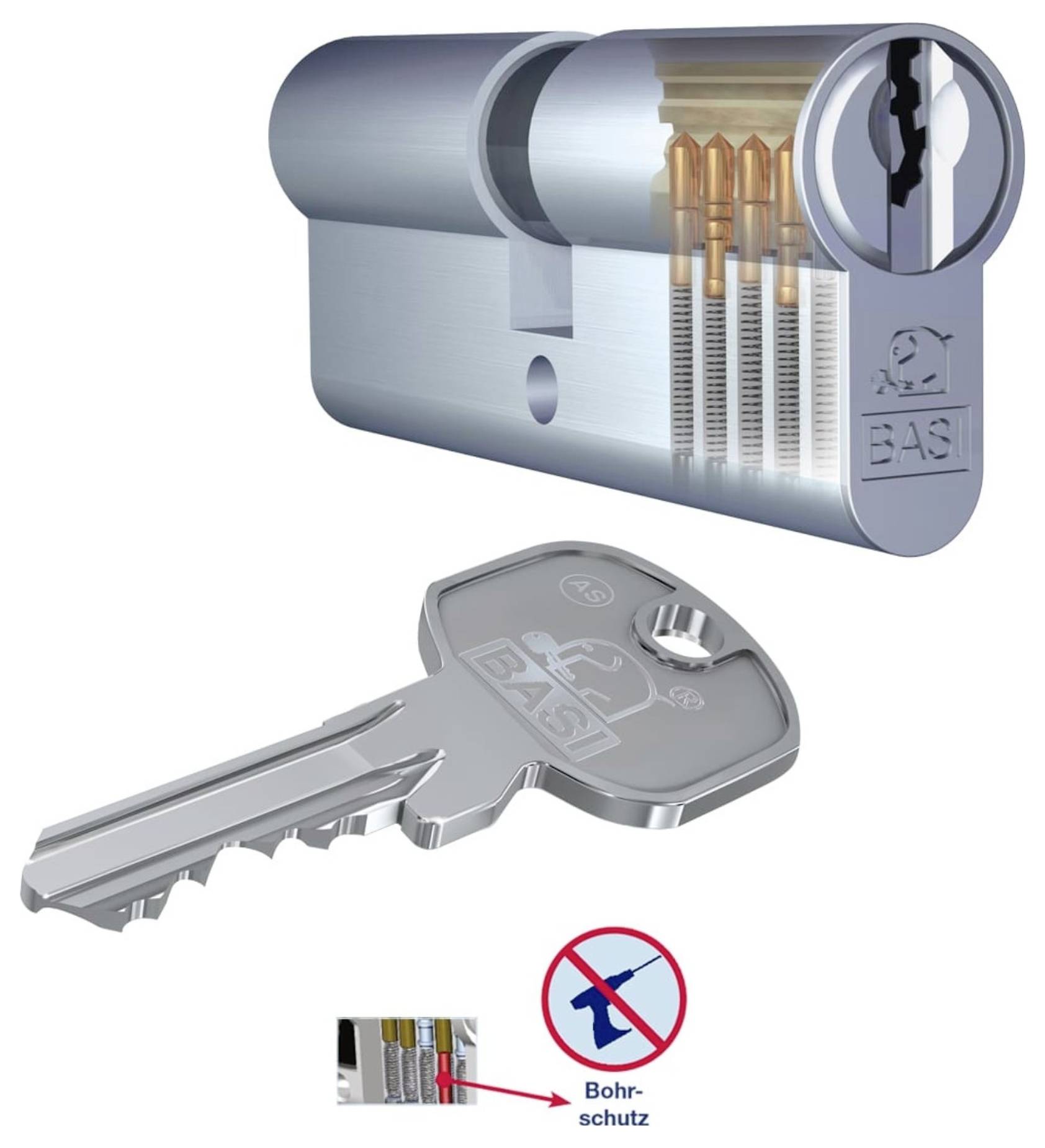

'A cutaway of a BASI cylinder lock shows internal pin mechanism. Below, a matching key is displayed. No-drill protection icon included.'

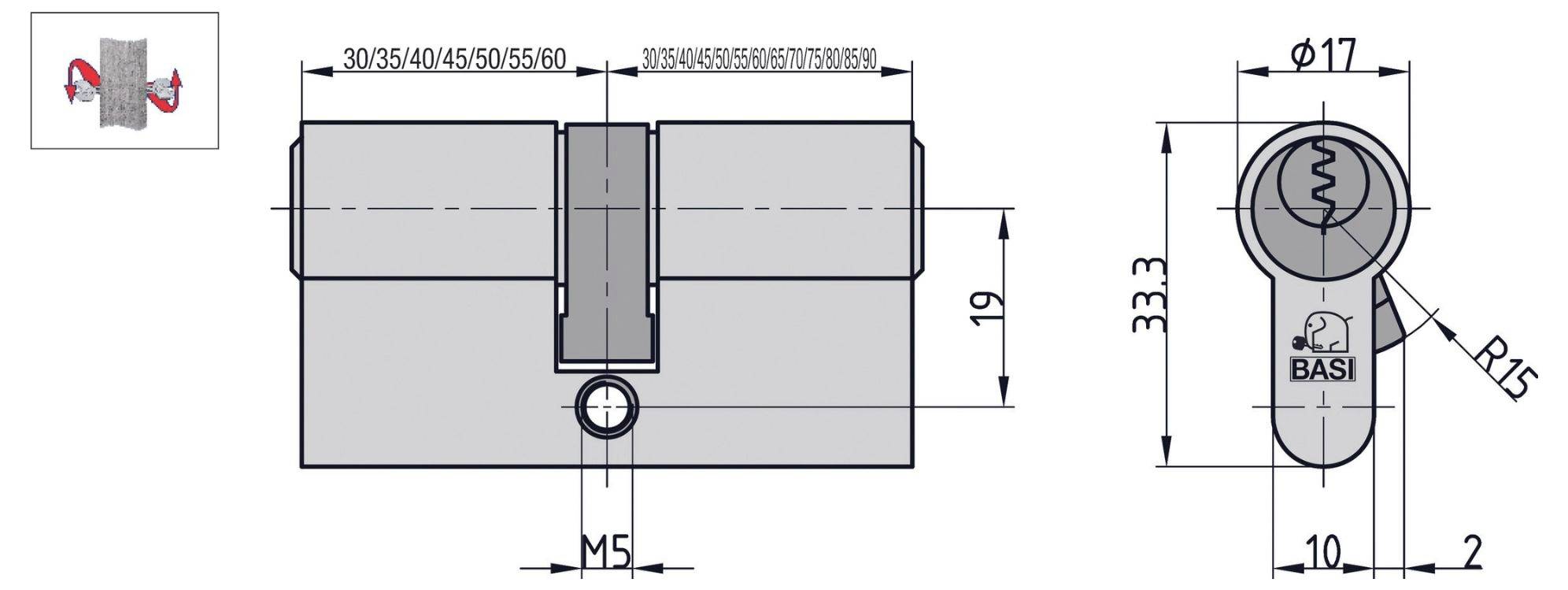

Technical drawing of a cylinder lock, labeled 'BASI', showing key dimensions: width 30-50mm, height 19mm, front view height 33.3mm, and other specifications.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Profile Double cylinder

  • Different hazardous for simultaneous locking
  • Emergency & hazard function
  • 3 key

Technical specifications

Product type

Euro profile cylinder

Cylinder dimensions

35 / 50mm

Cylinder inside diameter

35 mm

Cylinder (outside diameter)

50 mm

Size

35/50 mm

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928719 Basi 5200-0520 Euro profile cylinder 35 / 50mm

User & Safety Instructions

User & Safety Instructions 1928719 Basi 5200-0520 Euro profile cylinder 35 / 50mm

Information

Information 1928719 Basi 5200-0520 Euro profile cylinder 35 / 50mm

Description

AS-35/50 mm profile double cylinder, VS, N+G, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

  • Matt nickel-plated brass

Scope of delivery

  • Profile cylinder
  • 3 key
  • Fit screw (fixing screws)
