Basi 5200-0545 Euro profile cylinder 35 / 75mm

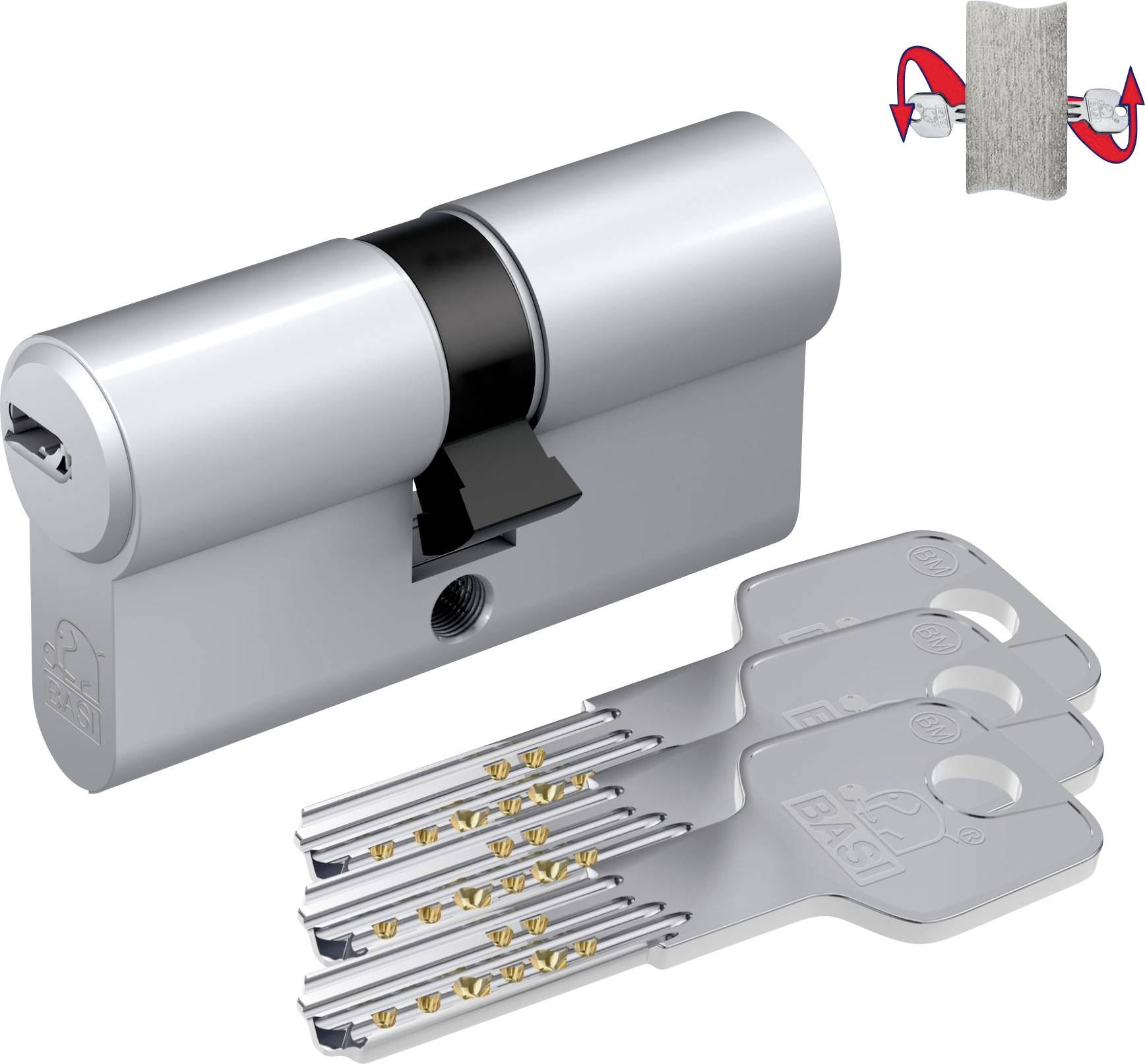

'Lock cylinder with three keys, showing internal mechanisms. Arrows depict rotational movement for locking/unlocking. Brand: Basi.'

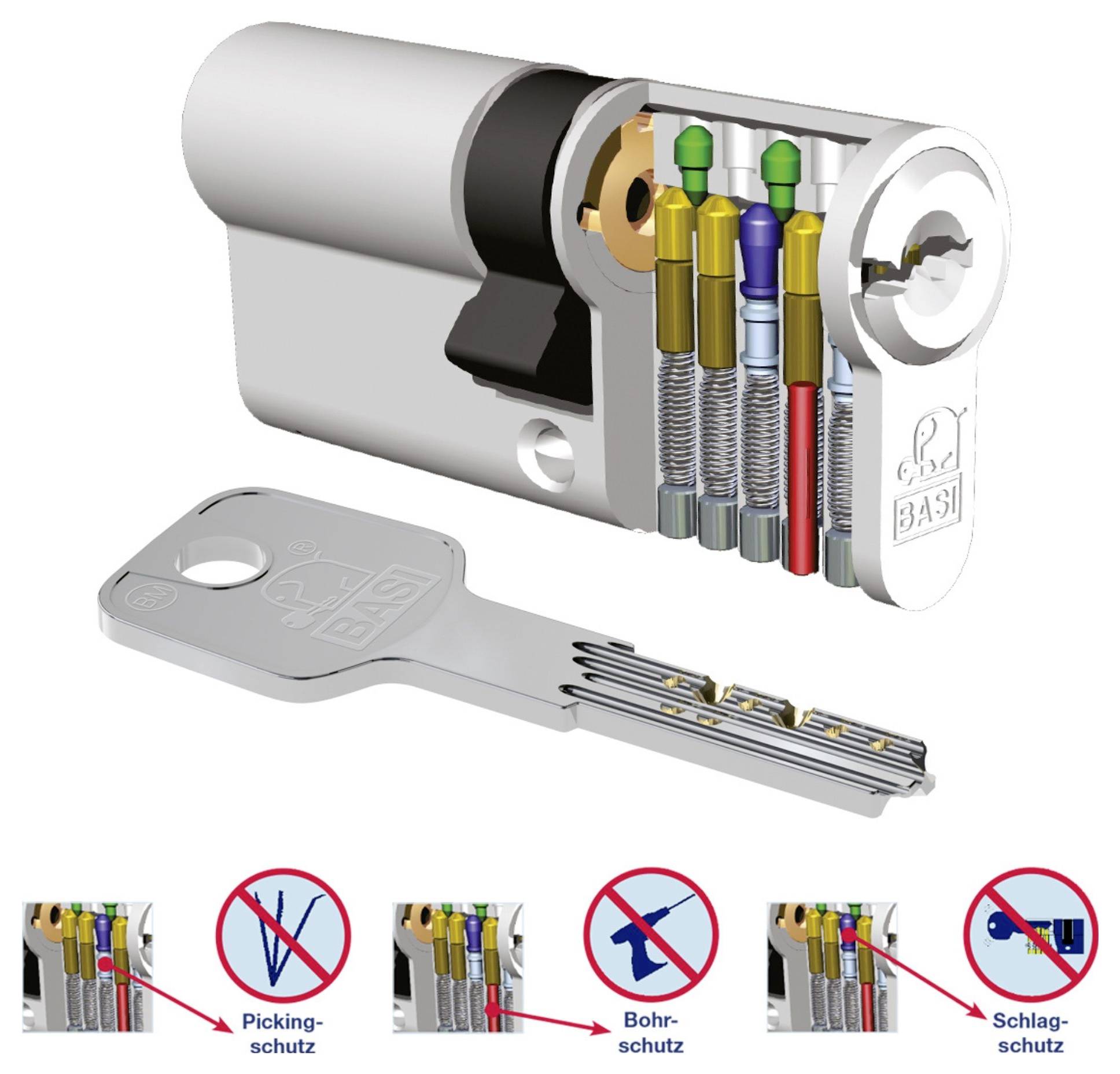

'Cross-section view of a lock cylinder with a key inserted, showing internal components. Diagrams below illustrate picking and drilling defenses.'

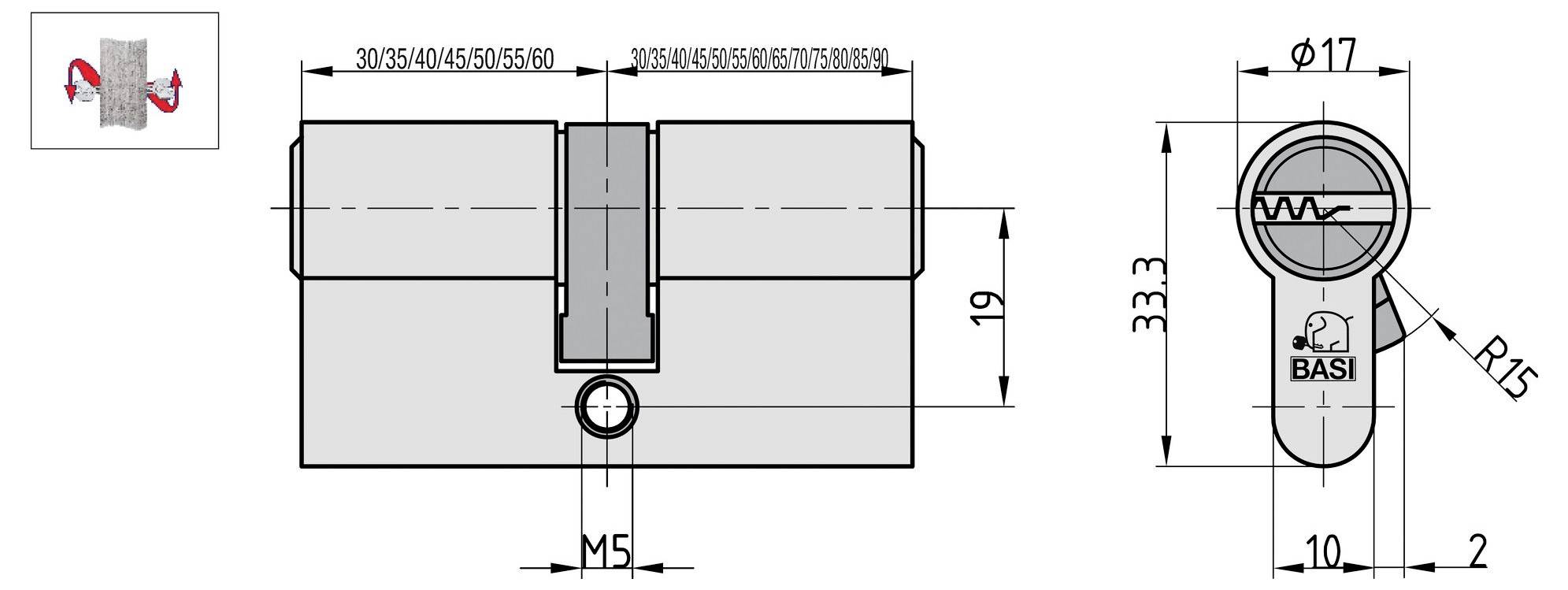

Technical diagram of a BASI lock cylinder. Dimensions include width 30/35/40/45/50/55/60, height 33.3, and diameter 17. Includes M5 and R15 markings.
1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Profile Double cylinder

  • Different hazardous for simultaneous locking
  • Emergency & hazard function
  • 3 key

Technical specifications

Product type

Euro profile cylinder

Cylinder dimensions

35 / 75mm

Cylinder inside diameter

35 mm

Cylinder (outside diameter)

75 mm

Size

35/75 mm

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928724 Basi 5200-0545 Euro profile cylinder 35 / 75mm

User & Safety Instructions

User & Safety Instructions 1928724 Basi 5200-0545 Euro profile cylinder 35 / 75mm

Information

Information 1928724 Basi 5200-0545 Euro profile cylinder 35 / 75mm

Description

AS-35/75 mm profile double cylinder, VS, N+G, 3 Cylinder Key, 5 pin tumblers, drill, brass, matt nickel-plated, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

  • Matt nickel-plated brass

Scope of delivery

  • Profile cylinder
  • 3 key
  • Fit screw (fixing screws)
