1/3
Basi 9220-5512 Room door lock Silver
EAN:
Part number:
Item no:
Highlights & Details
Plug-in-room door lock
- Plug-in lock for room doors with BB-colored hole
- Cuff: 20 mm round, nickel-silver painted
- Material trap/latch: Plastic

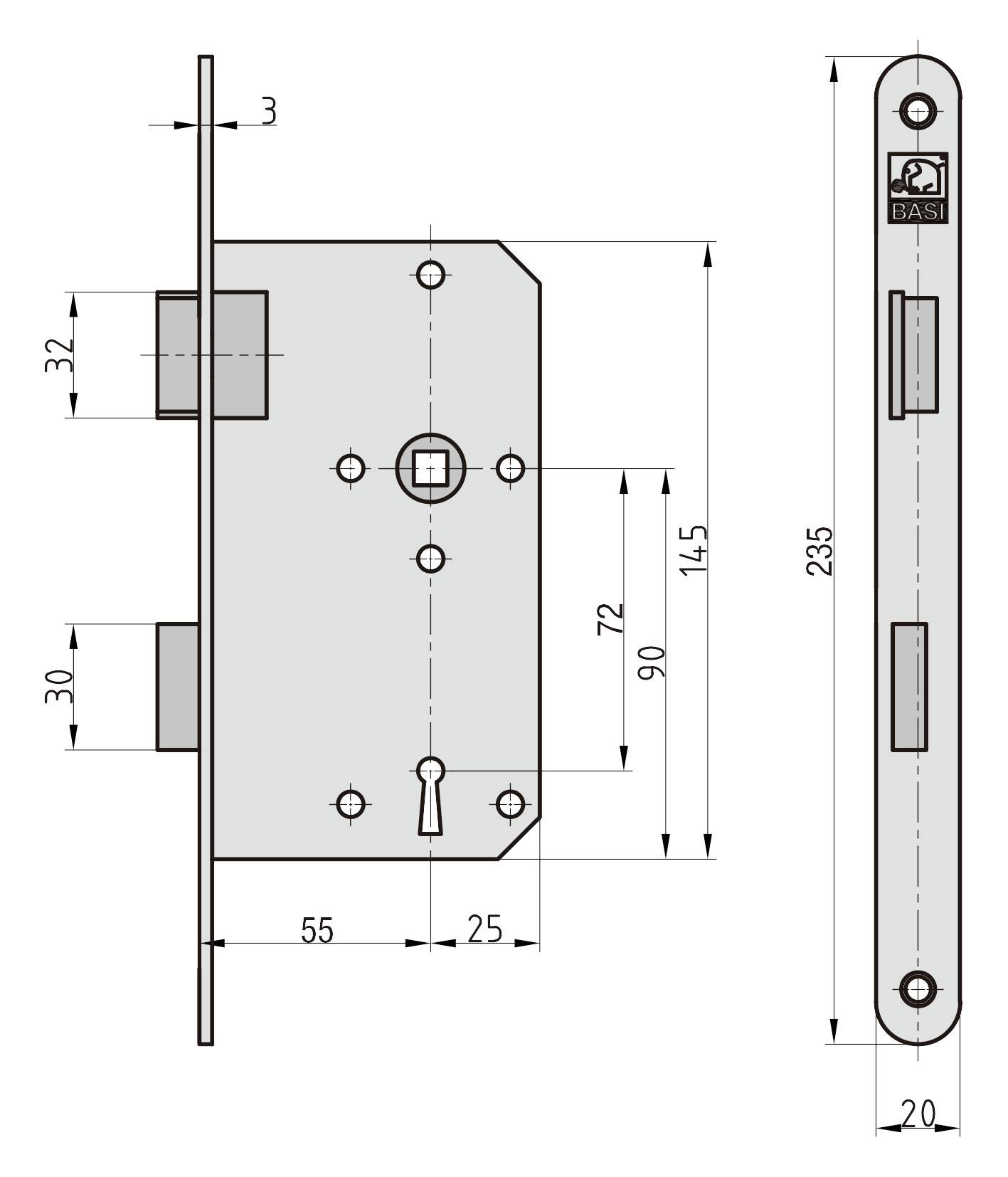

- Mandrel dimension: 55 mm, distance: 72 mm, square: 8 mm
- Tested according to DIN 18251-1, class 1
Technical specifications
- Product type
Room door lock
- Dim
(L x W) 235 mm x 85 mm
- Factory colour
Silver
- Width
85 mm
- Length
235 mm
- Depth
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929465 Basi 9220-5512 Room door lock Silver
Information
Information 1929465 Basi 9220-5512 Room door lock Silver
Description

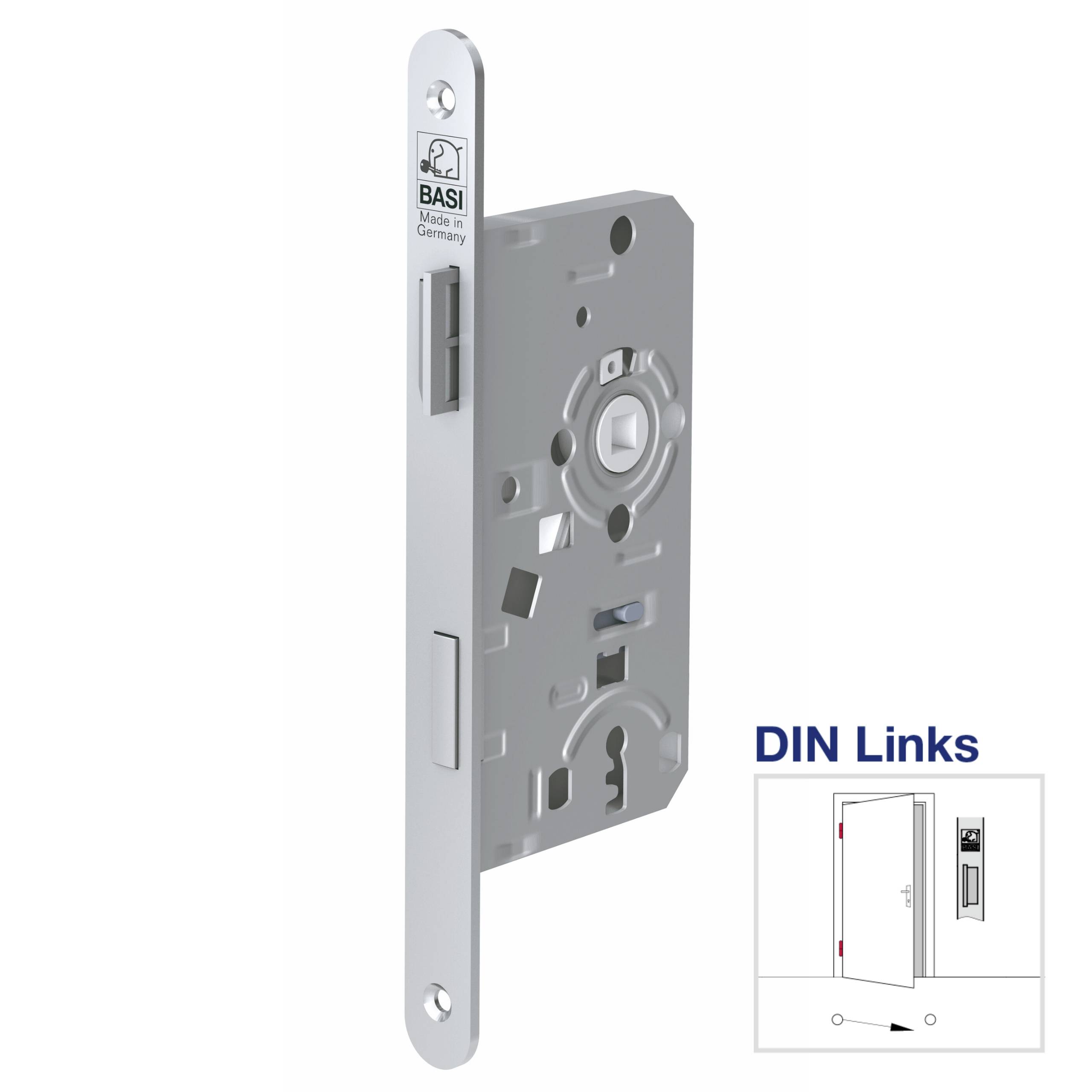

BASI plug-in lock - ES 922 - ideal for indoor use. The plug-in lock with colored-colored lock is suitable for installation in room doors. The lock has a round stem with a width of 20 mm. The case is made of plastic and is available for DIN right and DIN left doors.
This text is machine translated.
This text is machine translated.
Features
- Plastic case/latch
- Nickel-silver painted
