Basi 9240-5522 Room door lock Silver

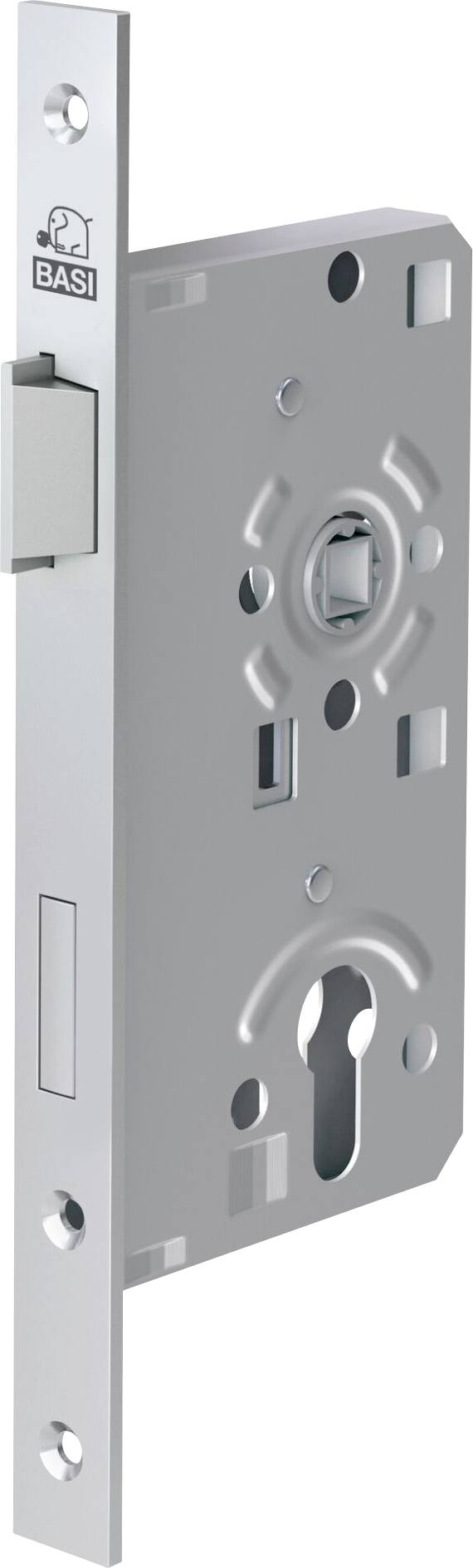

'BASI' branded mortise lock with multiple keyhole options and bolt latch, primarily used for door security.
'BASI' branded mortise lock with multiple keyhole options and bolt latch, primarily used for door security.

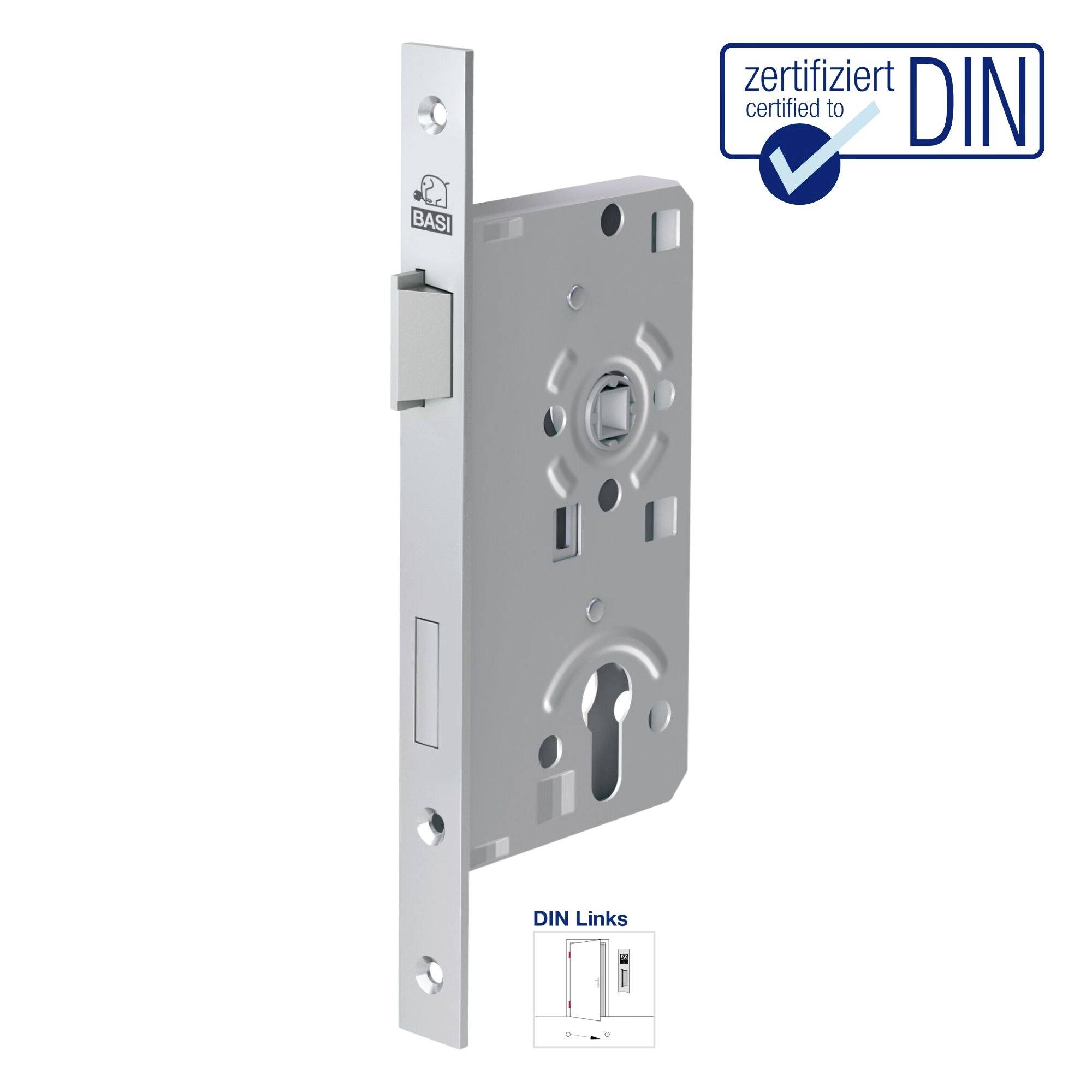

A silver-coloured door lock with certification seal 'certified to DIN'. It is suitable for left-hand doors.
'Technical drawing of a BASI door lock mechanism with dimensions in millimeters, showing side and top views with keyhole placement.'

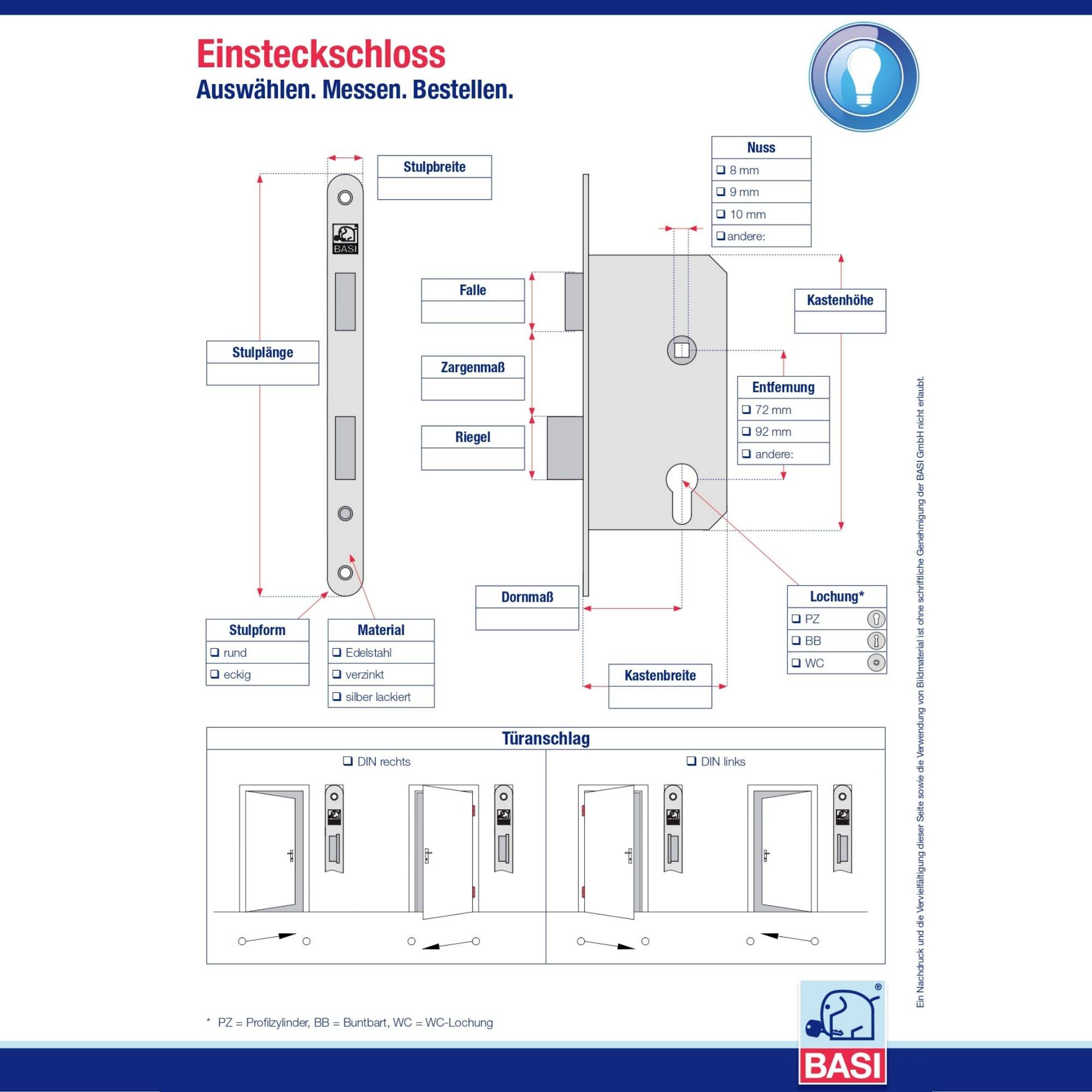

'Diagram of a mortice lock with labels for components such as latch, bolt and centre distance. Includes measurement instructions and door hanging options.'
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Plug-in-room door lock

  • Push-in lock for entrance and room doors with profile cylinder holes
  • Cuff: 20 mm käntig, nickel-silver painted
  • Material trap/latch: Metal
  • Mandrel dimension: 55 mm, distance: 72 mm, square: 8 mm
  • Tested according to DIN 18251-1, class 2

Technical specifications

Product type

Room door lock

Dim

(L x W) 235 mm x 85 mm

Factory colour

Silver

Width

85 mm

Length

235 mm

Depth

20 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1929469 Basi 9240-5522 Room door lock Silver

Information

Information 1929469 Basi 9240-5522 Room door lock Silver

Description

BASI plug-in lock - ES 924 - ideal for indoor use. The push-in lock with profile cylinder punching is suitable for installation in entrance and room doors. The lock has a square stem with a width of 20 mm. The trap is made of metal - available for DIN right and DIN left doors.

This text is machine translated.

Features

  • Plastic case/latch
