Basi 9290-5521 Room door lock Silver

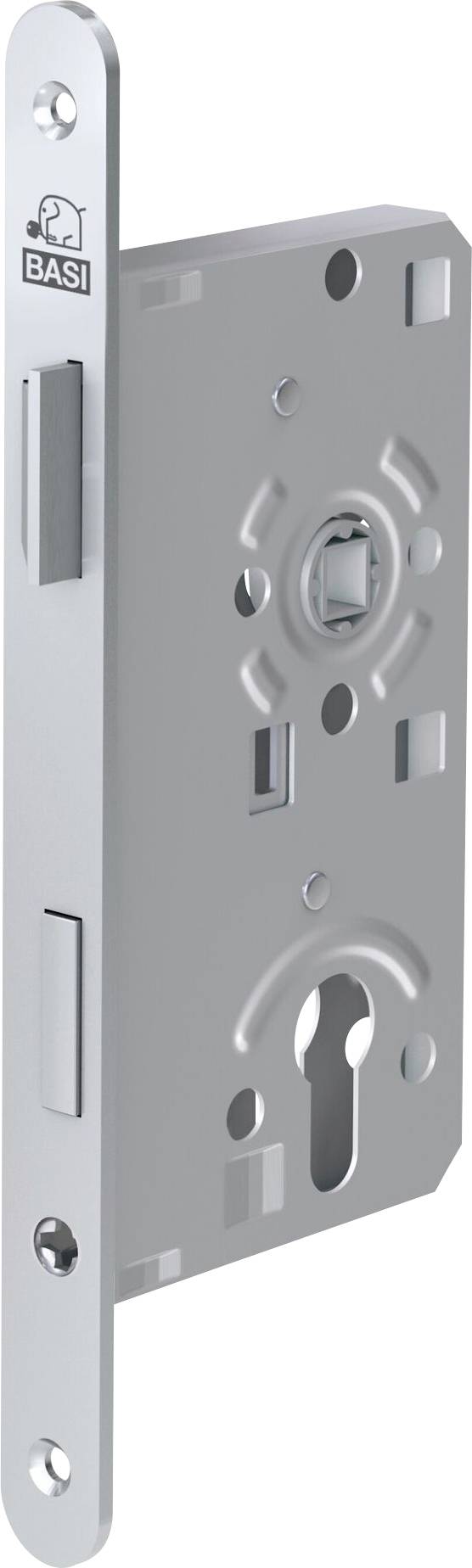

A silver mortise lock with visible latch and bolt mechanisms, branded with a 'BASI' logo, viewed from the side.

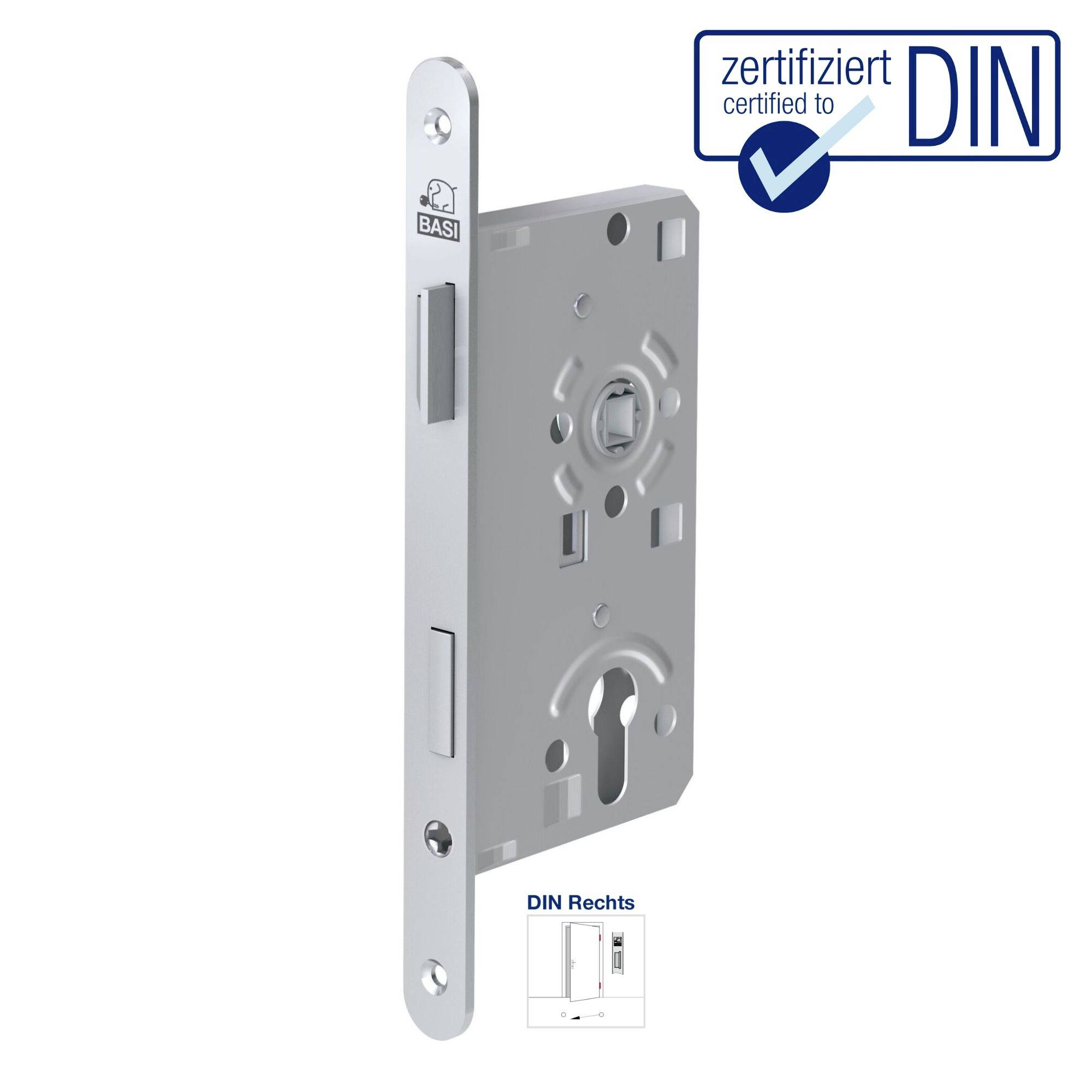

A silver-coloured mortice lock by BASI, certified to DIN standard, suitable for both left and right-hand doors, with a printed certification logo in the top right corner.

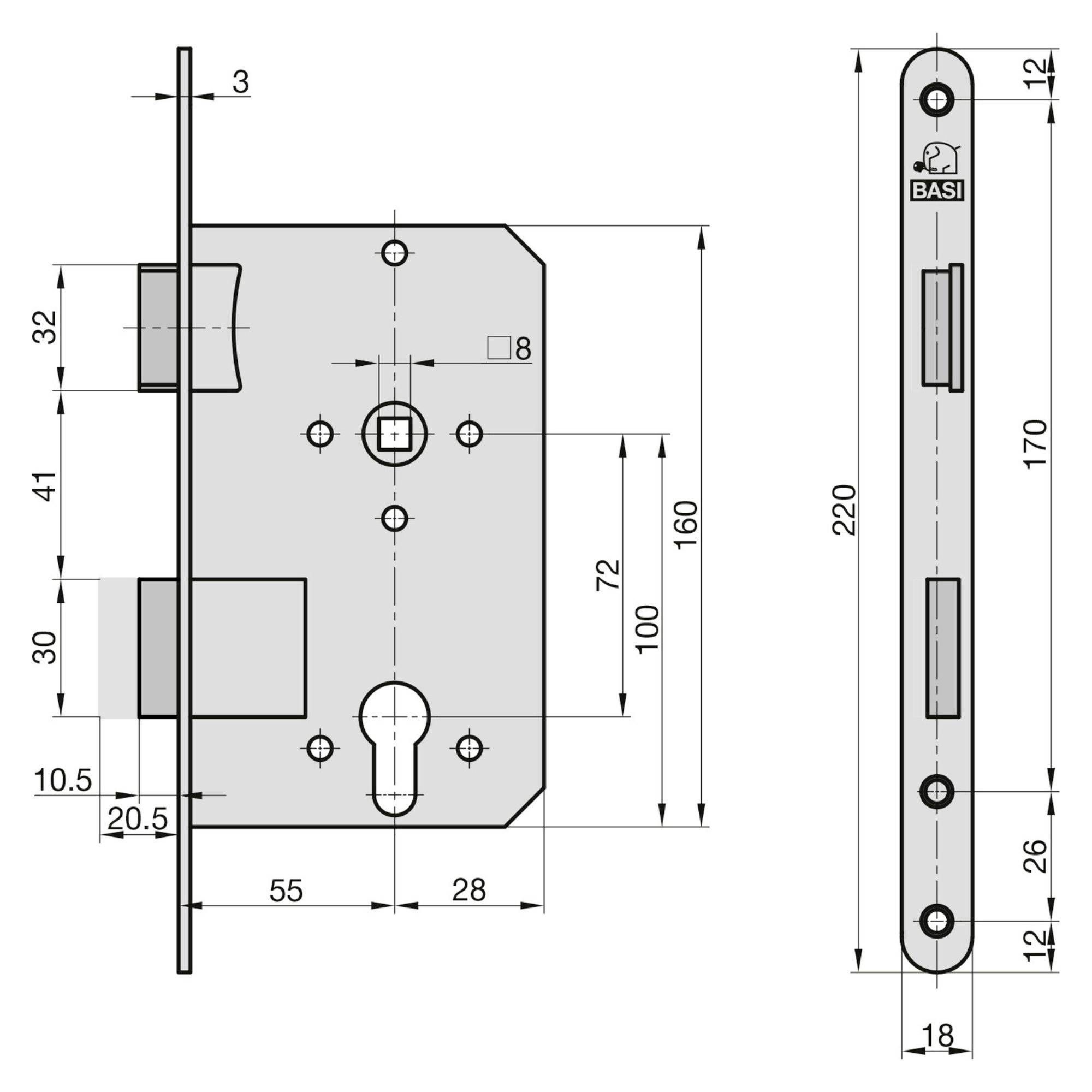

Diagram of a door lock mechanism with detailed measurements, showing the positions of screws, lock body dimensions, and keyhole placement.
The graphic shows a mortice lock. At the top it says 'Mortice Lock: Select. Measure. Order'. Various parts and dimensions are labelled. At the bottom, the door frame is explained.
1/4
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Plug-in-room door lock

  • Push-in lock for entrance or room doors in TGL dimension (formerly DDR)
  • With profile cylinder punching
  • Cuff: Nickel-silver painted
  • Material trap/latch: Metal
  • Mandrel dimension: 55 mm, distance: 72 mm, square: 8 mm

Technical specifications

Product type

Room door lock

Dim

(L x W) 235 mm x 85 mm

Factory colour

Silver

Width

85 mm

Length

235 mm

Depth

20 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1929474 Basi 9290-5521 Room door lock Silver

Information

Information 1929474 Basi 9290-5521 Room door lock Silver

Description

BASI plug-in lock IT 929 for entrance doors / room doors. The plug-in lock has a change function and is in TGL dimension (formerly DDR). ideal for use with entrance doors / room doors that are to be equipped with a lock cylinder. Mandrel dimension: 55 mm, distance: 72 mm, square: 8 mm

This text is machine translated.

Features

  • Case/latch metal
