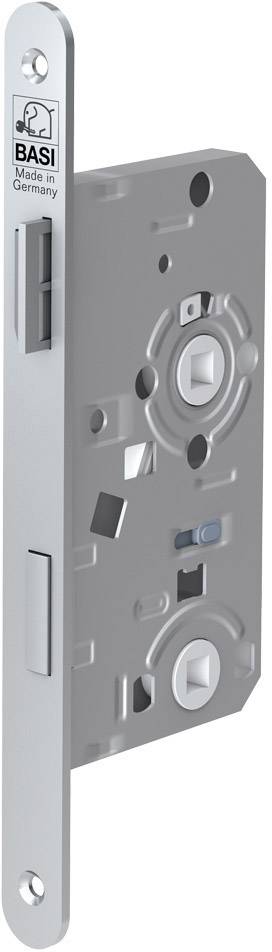

Basi 9350-5532 Room door lock Silver
EAN:
Part number:
Item no:
Highlights & Details
Plug-in-room door lock
- Push-in lock for bathroom / WC doors
- Cuff: 20 mm rounded, nickel-silver painted
- Material trap/latch: Plastic

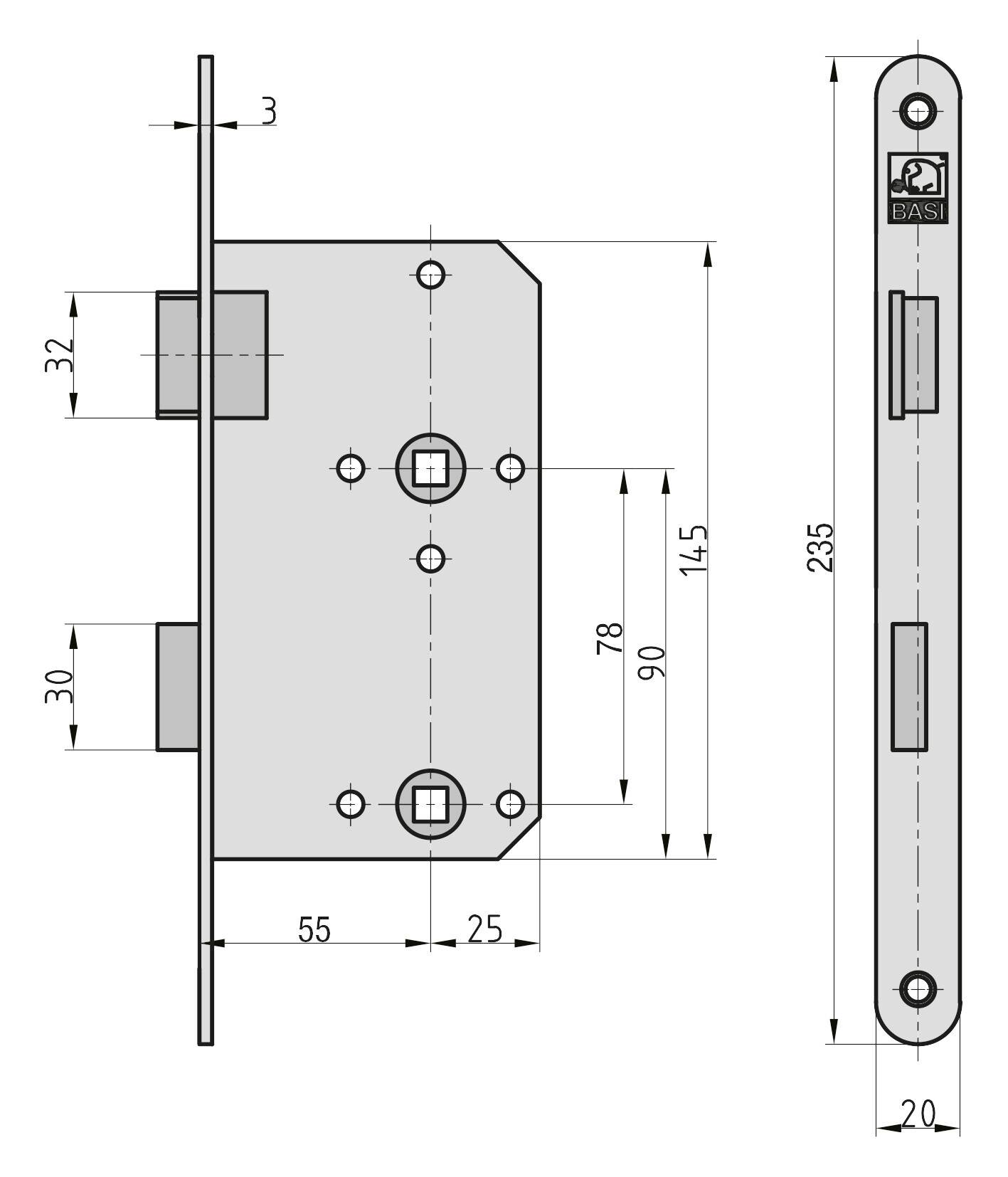

- Mandrel dimension: 55 mm, distance: 78 mm, square: 8 mm
- Tested according to DIN 18251-1, class 1
Technical specifications
- Product type
Room door lock
- Dim
(L x W) 235 mm x 85 mm
- Factory colour
Silver
- Width
85 mm
- Length
235 mm
- Depth
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929481 Basi 9350-5532 Room door lock Silver
Information
Information 1929481 Basi 9350-5532 Room door lock Silver
Description
BASI plug-in lock - ES 935 - ideal for bathroom / WC doors usable. The push-in lock is especially suitable for installation in toilet doors, since a special WC fitting can be mounted on the lower nut. The lock has a round stem with a width of 20 mm. The case is made of plastic and is available for doors opening in either DIN right or DIN left.
This text is machine translated.
This text is machine translated.
Features
- Plastic case/latch
