Basi 9770-6522 Room door lock Silver

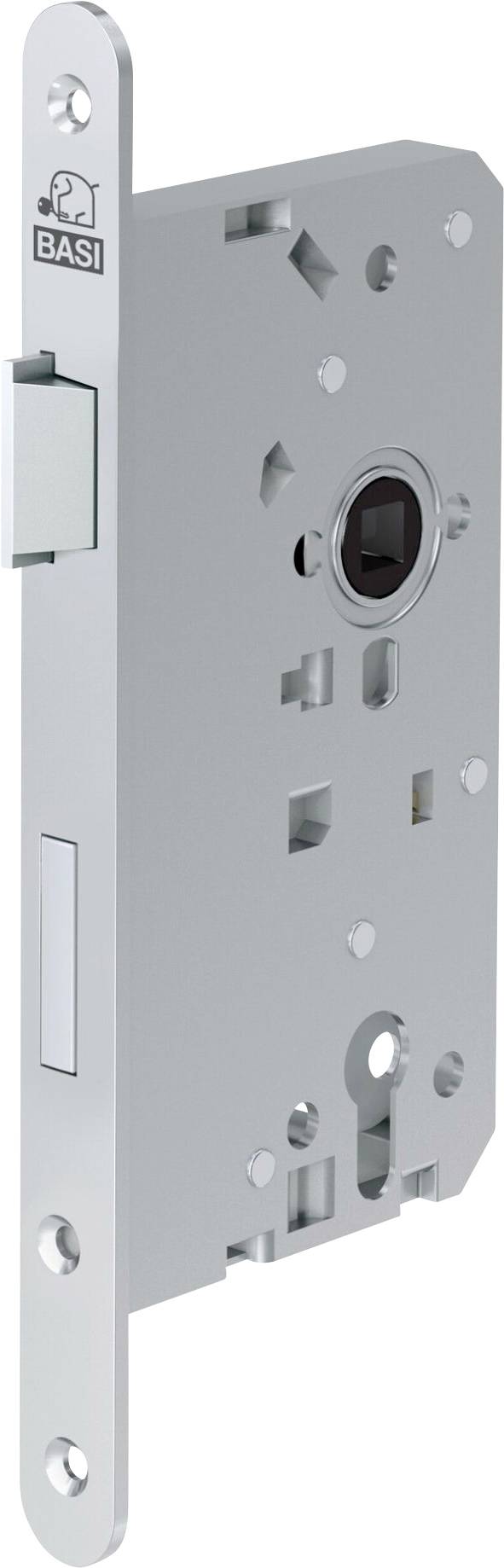

A close-up of a metal lock mechanism with various adjustment holes and a BASI logo at the top, designed for door installation.

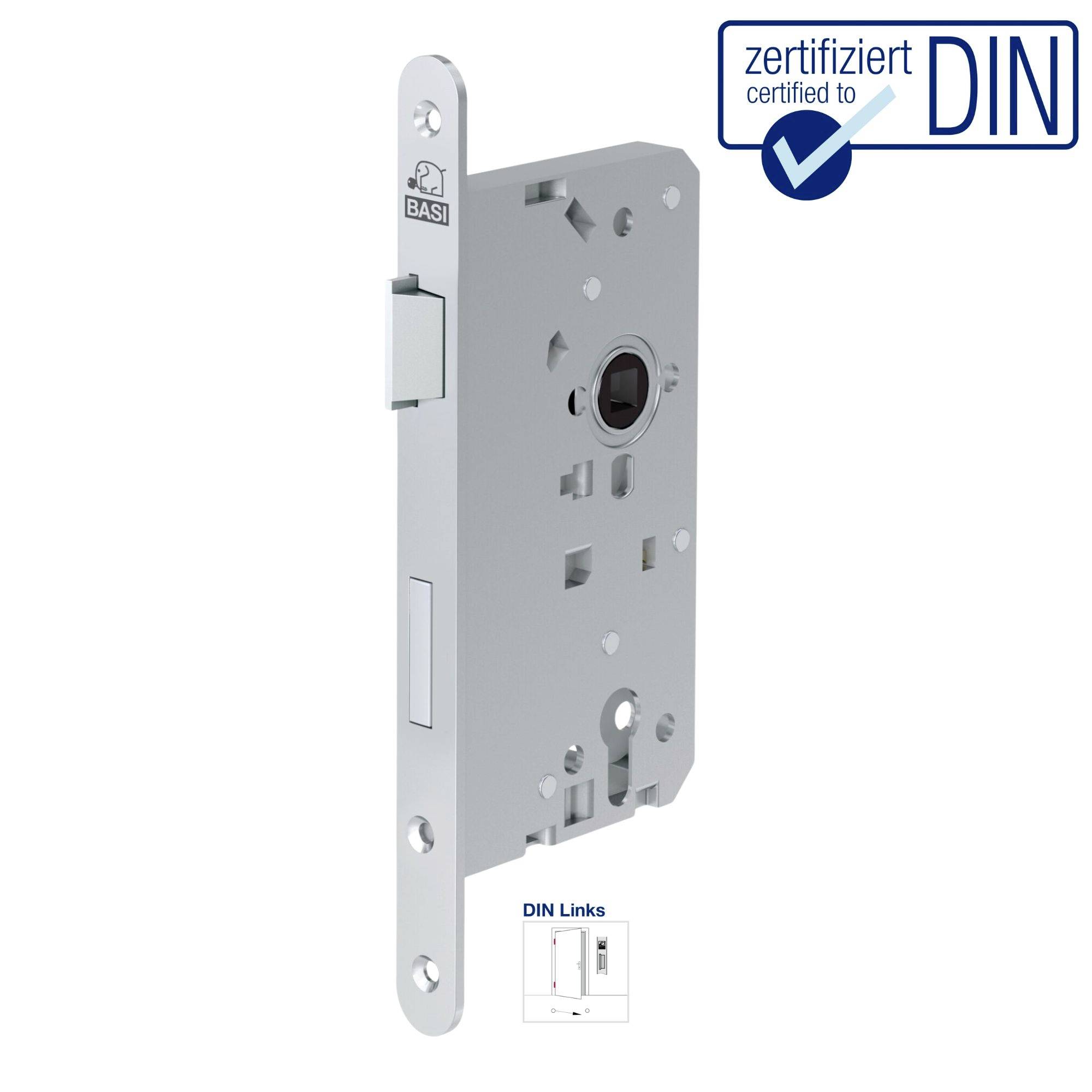

Metal lock with certificate, DIN-left. Lock brand 'BASI' with blue DIN logo in the upper right.

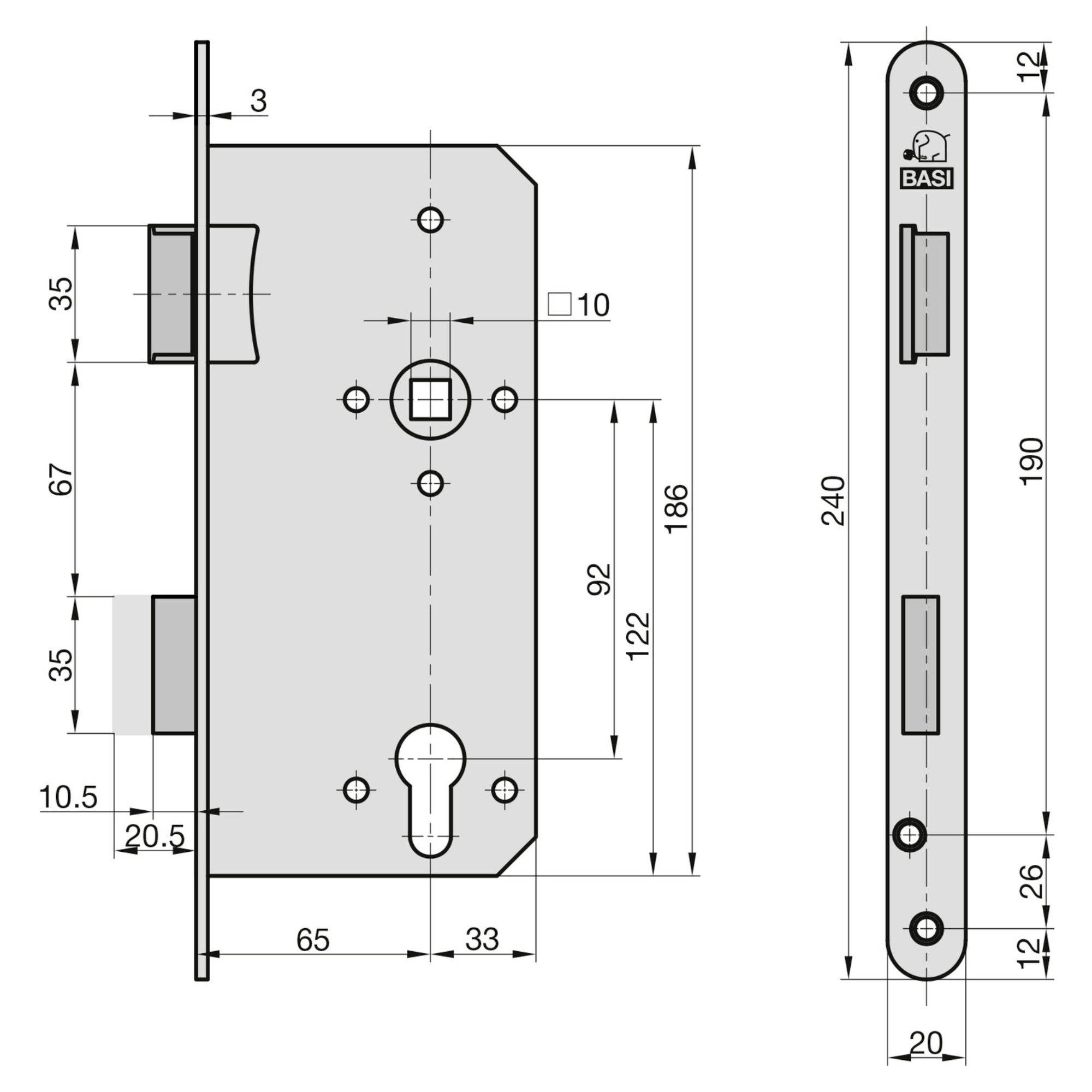

'A latch and lock door mechanism with dimensions labeled in millimeters; includes side and front views showing placement and scale.'

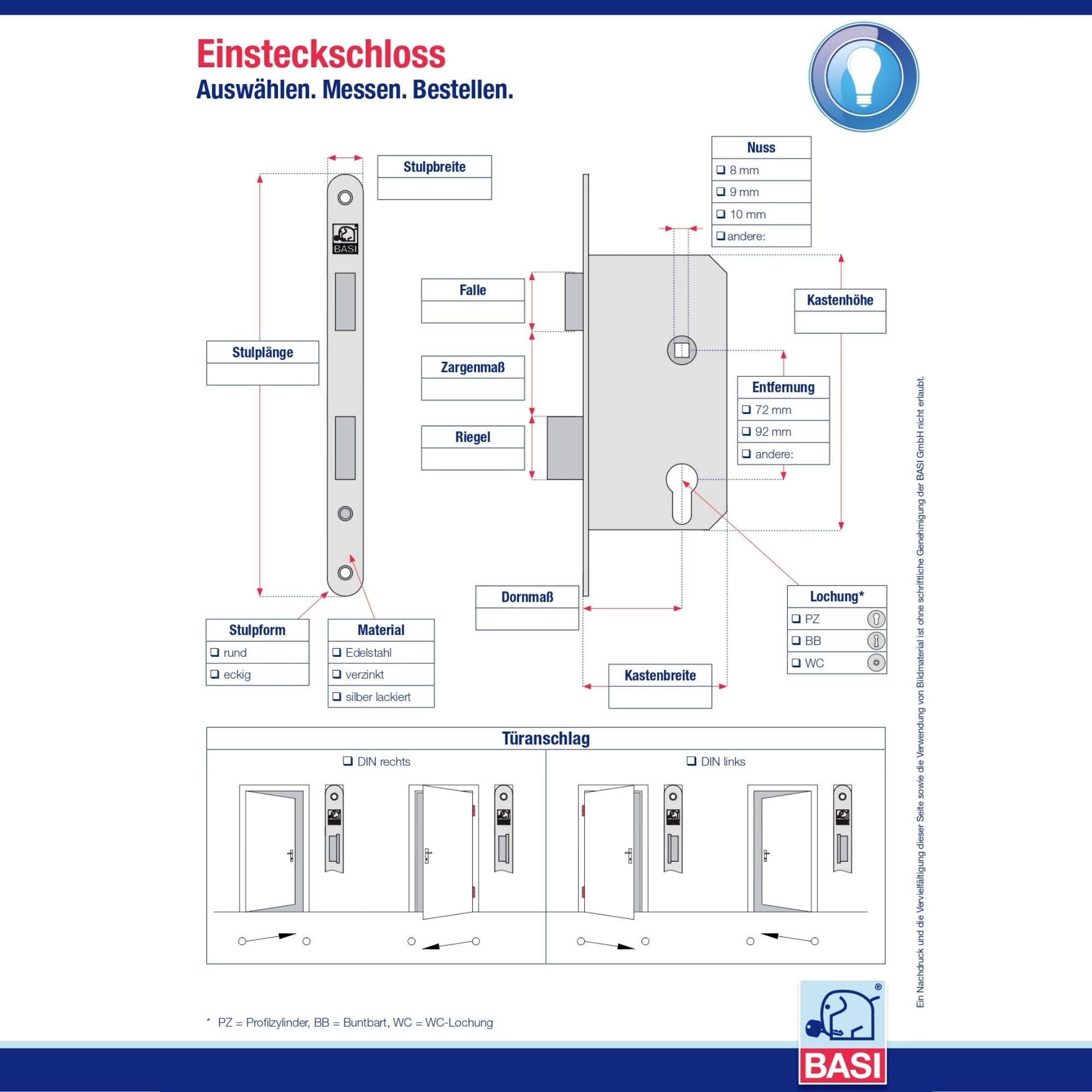

'Infographic showing the components and dimensions of a mortice lock: strike plate width, spindle measurement, case width, door frame stop variations.'
1/4
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Plug-in door-to-door lock

  • Push-in lock with PZ punching according to TGL dimension (formerly DDR)
  • Cuff: 20 mm round, nickel silver painted
  • Material trap/latch: Metal
  • Mandrel dimension 65 mm, distance: 92 mm, square: 10 mm
  • Optionally for DIN right / DIN left opening doors

Technical specifications

Product type

Room door lock

Dim

(L x W) 235 mm x 85 mm

Factory colour

Silver

Width

85 mm

Length

235 mm

Depth

20 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1929493 Basi 9770-6522 Room door lock Silver

Information

Information 1929493 Basi 9770-6522 Room door lock Silver

Description

BASI plug-in lock - IT 977 for front doors/entrance doors to the living room according to TGL-dimension (formerly DDR). The push-in lock has a profile cylinder hole. The trap/latch is made of metal. Available in DIN right or DIN left design

This text is machine translated.

Features

  • Case/latch metal
