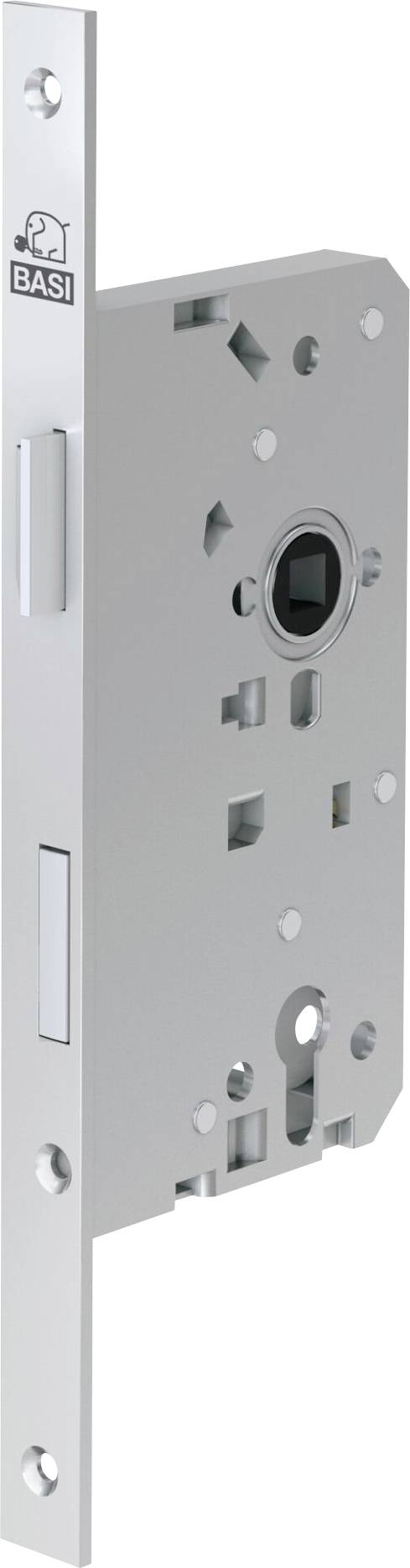

Basi 9780-6521 Room door lock Silver
EAN:
Part number:
Item no:
Highlights & Details
Plug-in door-to-door lock
- Push-in lock with PZ punching for front doors
- Optionally for DIN right / DIN left opening doors
- Cuff: 20 mm, nickel silver painted
- Material trap/latch: Metal

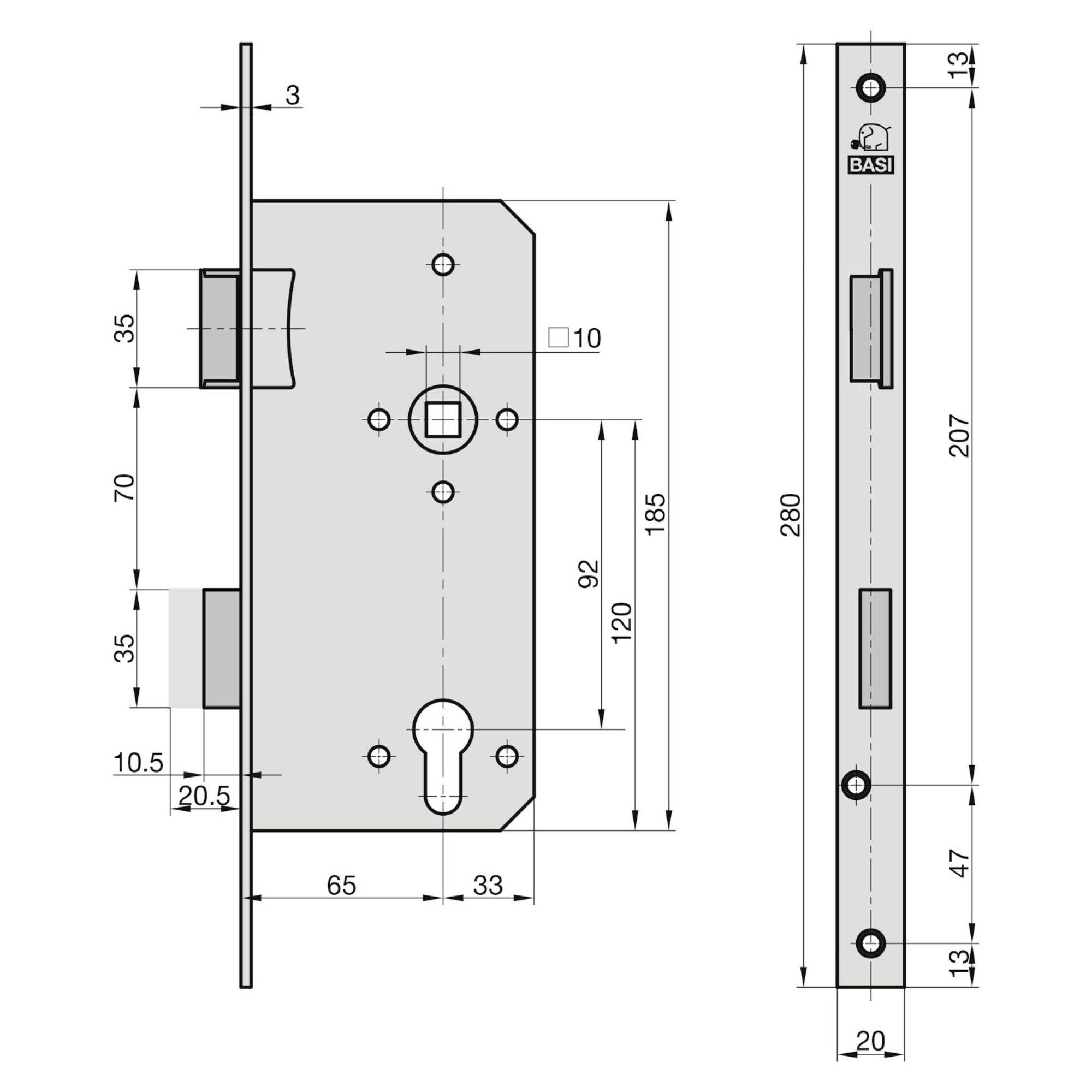

- Mandrel dimension 65 mm, distance: 92 mm, square: 10 mm
Technical specifications
- Product type
Room door lock
- Dim
(L x W) 235 mm x 85 mm
- Factory colour
Silver
- Width
85 mm
- Length
235 mm
- Depth
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1929494 Basi 9780-6521 Room door lock Silver
Information
Information 1929494 Basi 9780-6521 Room door lock Silver
Description
BASI plug-in lock - IT 978 for front doors/entrance doors. The push-in lock has a profile cylinder hole. The trap/latch are made of metal - tested according to DIN EN 12209
This text is machine translated.
This text is machine translated.
Features
- Case/latch metal
