Basi BM5000-0025 Euro profile cylinder 30 / 55mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Profile Double cylinder
- Different hazardous for simultaneous locking
- 3 key
Technical specifications
- Product type
Euro profile cylinder

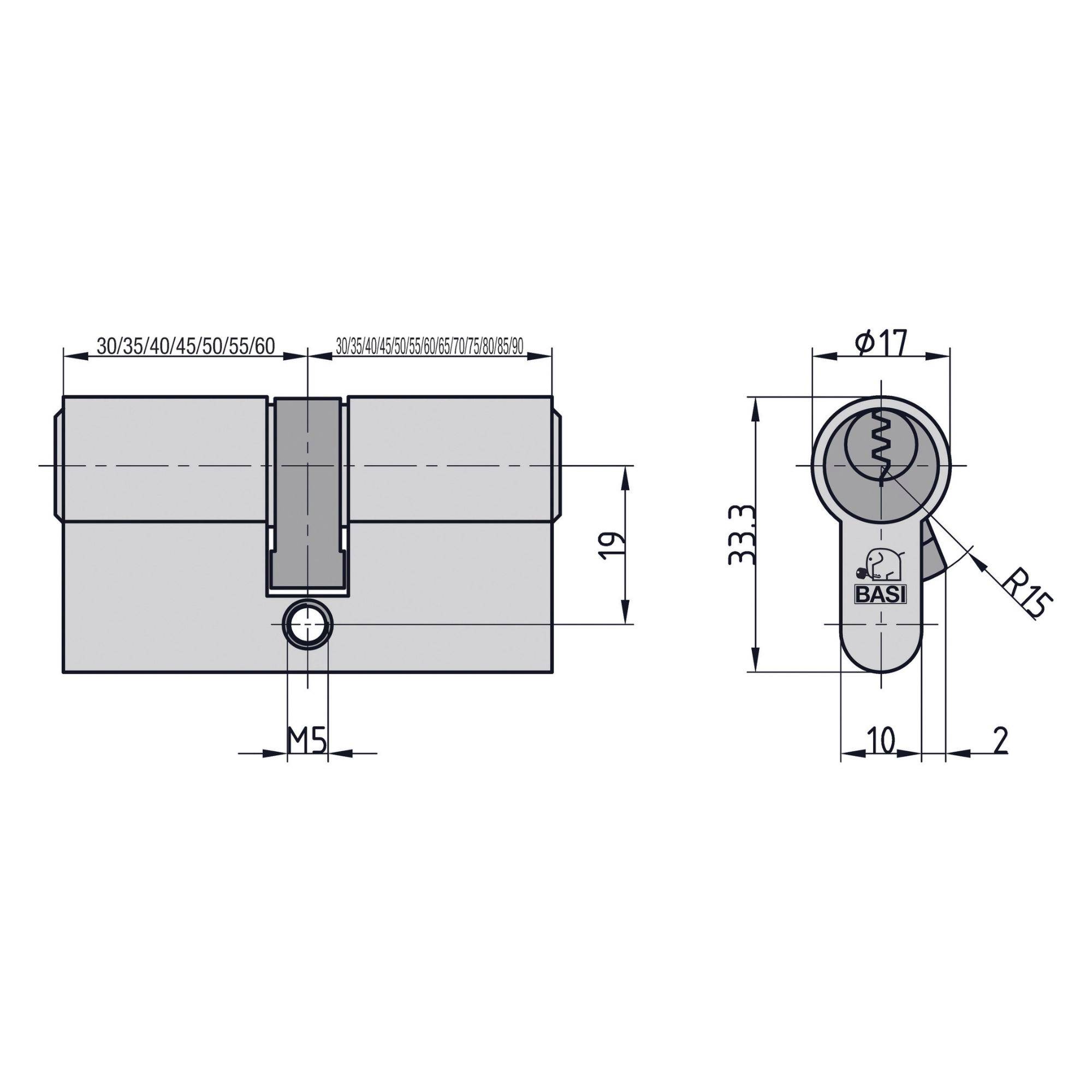

- Cylinder dimensions
30 / 55mm
- Cylinder inside diameter
30 mm
- Cylinder (outside diameter)
55 mm
- Size
30/55 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1928861 Basi BM5000-0025 Euro profile cylinder 30 / 55mm
User & Safety Instructions
User & Safety Instructions 1928861 Basi BM5000-0025 Euro profile cylinder 30 / 55mm
Information
Information 1928861 Basi BM5000-0025 Euro profile cylinder 30 / 55mm
Description

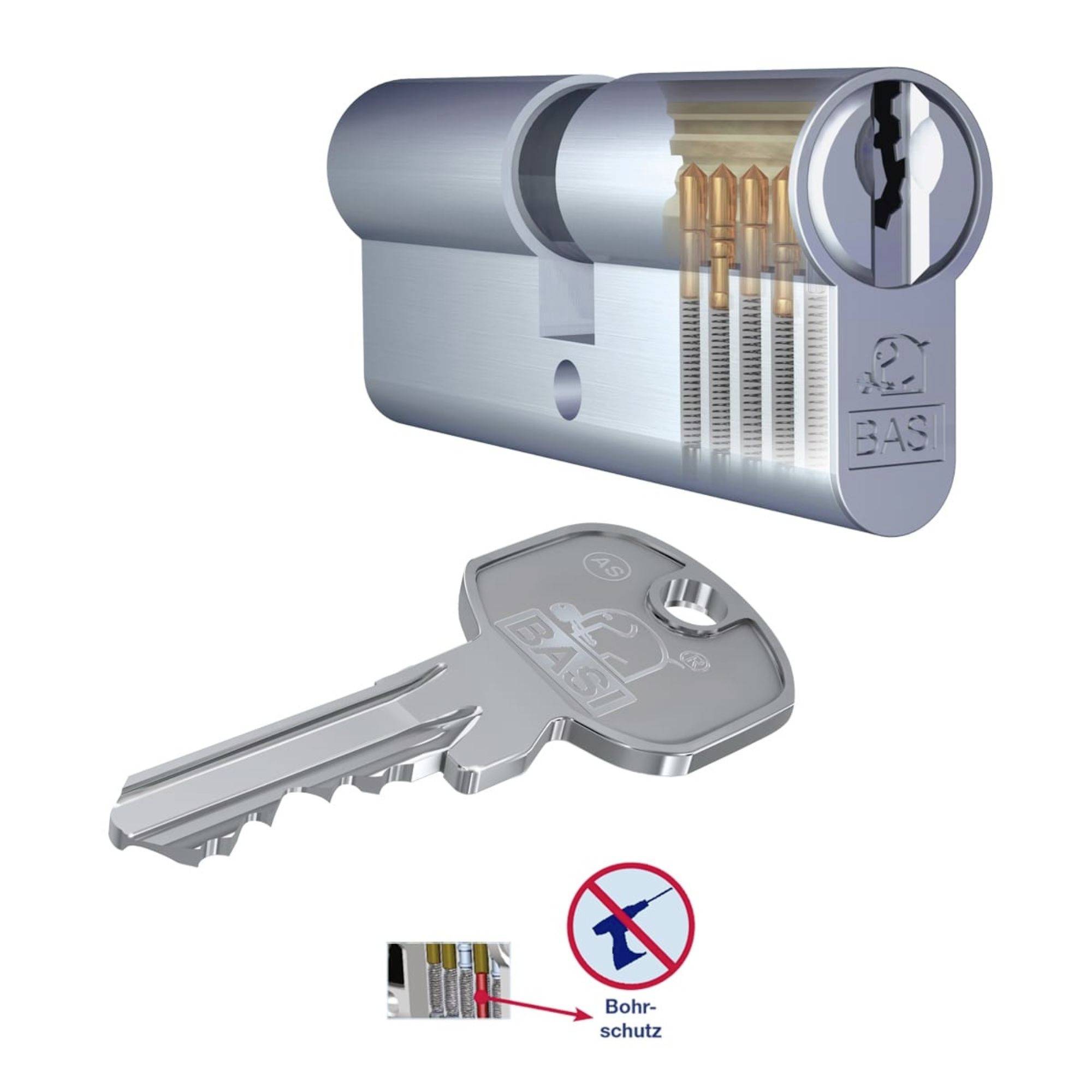

BM-30/55 mm profile double cylinder, VS, 3 drill molded key, key with code number, 8 direct blocking elements on 2 different levels, picking/Aufbohr/impact protection, matt nickel-plated brass, tested according to DIN 18252: 2006-12
This text is machine translated.
This text is machine translated.
Features
- Matt nickel-plated brass
Scope of delivery
- Profile cylinder
- 3 key
- Fit screw (fixing screws)
