Basi BM5001-0505-0040 Euro profile cylinder 35 / 35mm

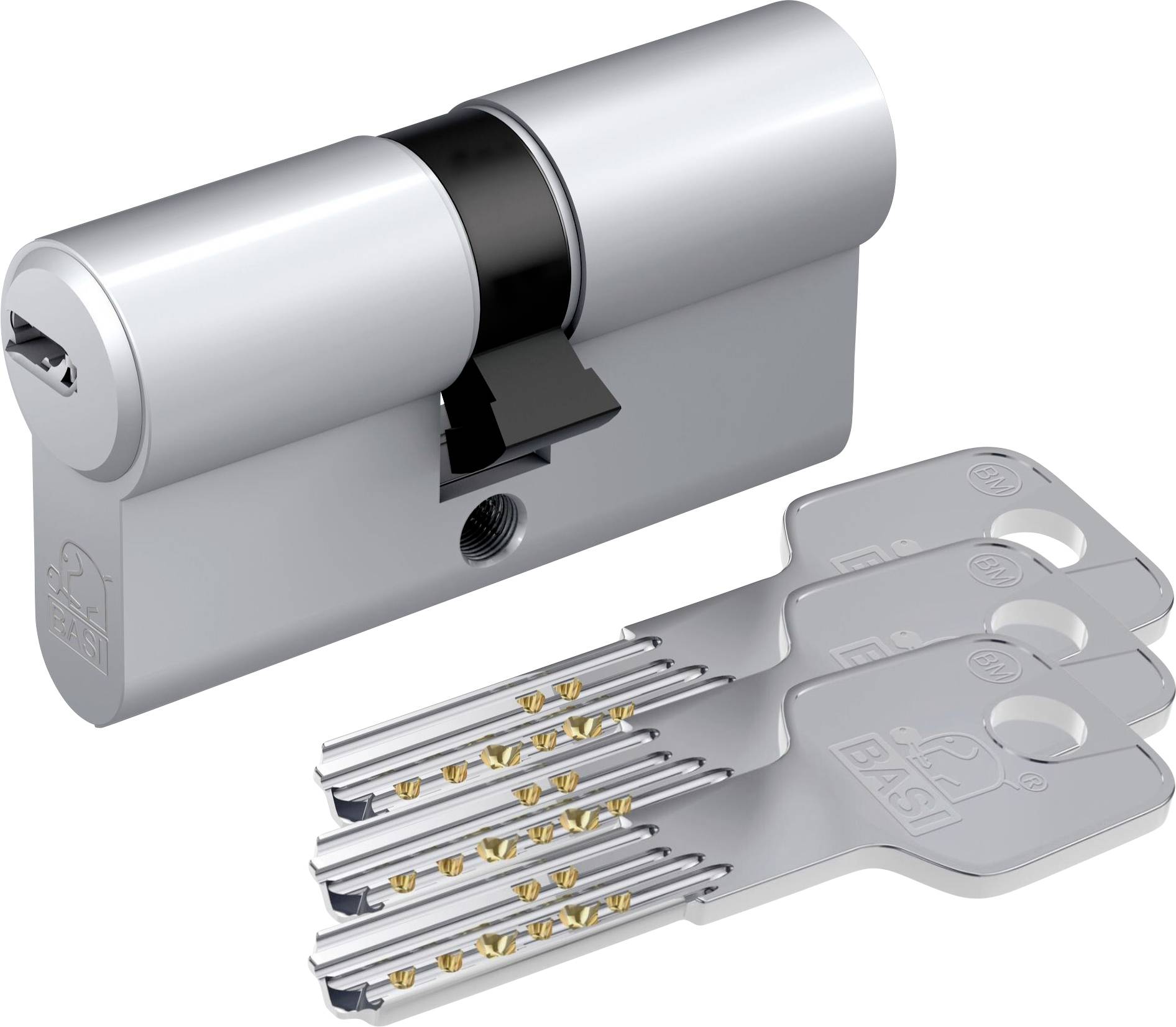

'A silver double-cylinder lock with a black middle, accompanied by three matching keys embossed with the brand logo.'
A key labeled 'BASI' is connected to five circular images: a shed, a padlocked gate, a door, a door handle, and a garage door.

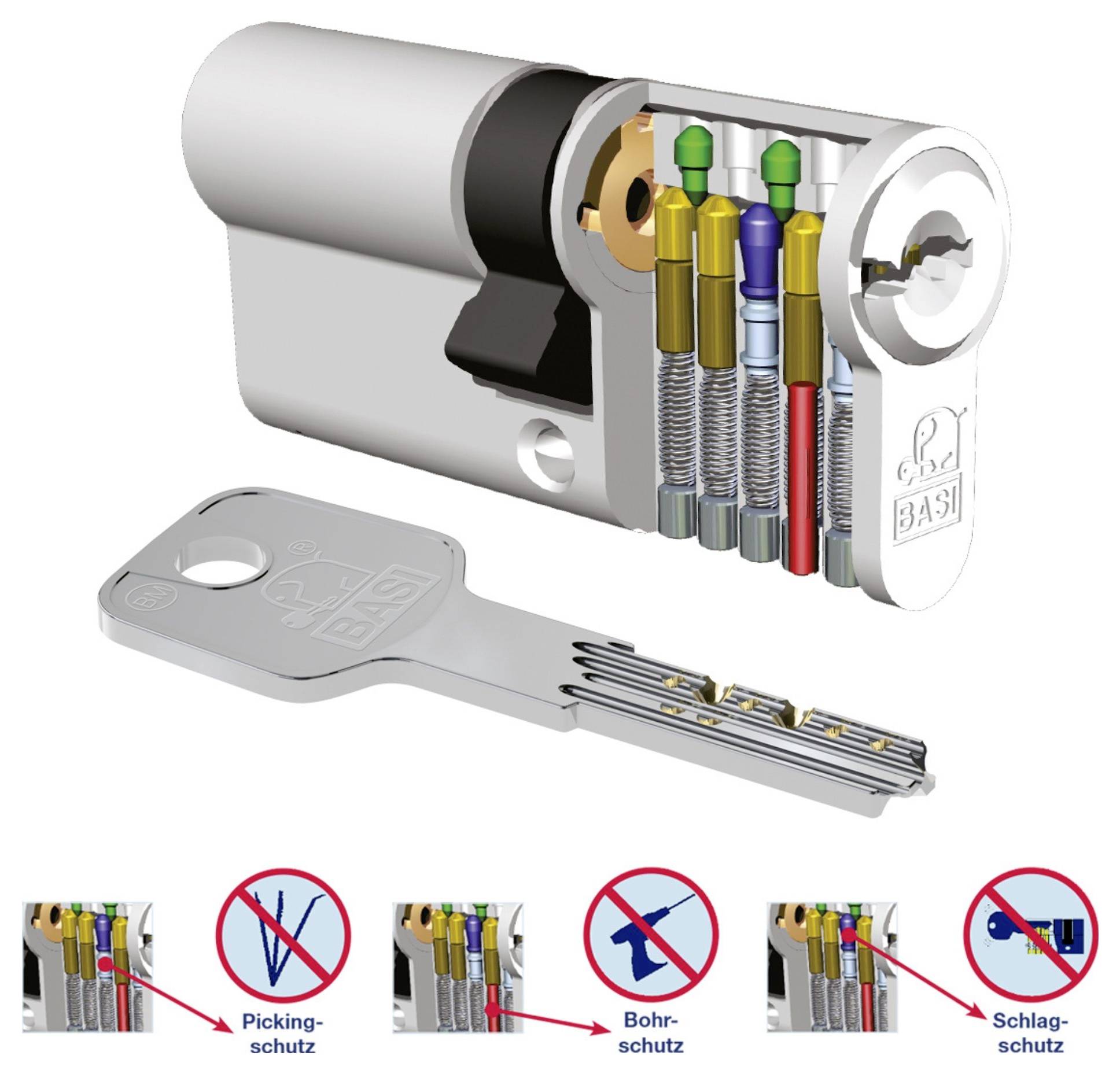

'Cross-section of a BASI lock and key system showing internal pins and mechanisms designed for enhanced security against picking and drilling.'

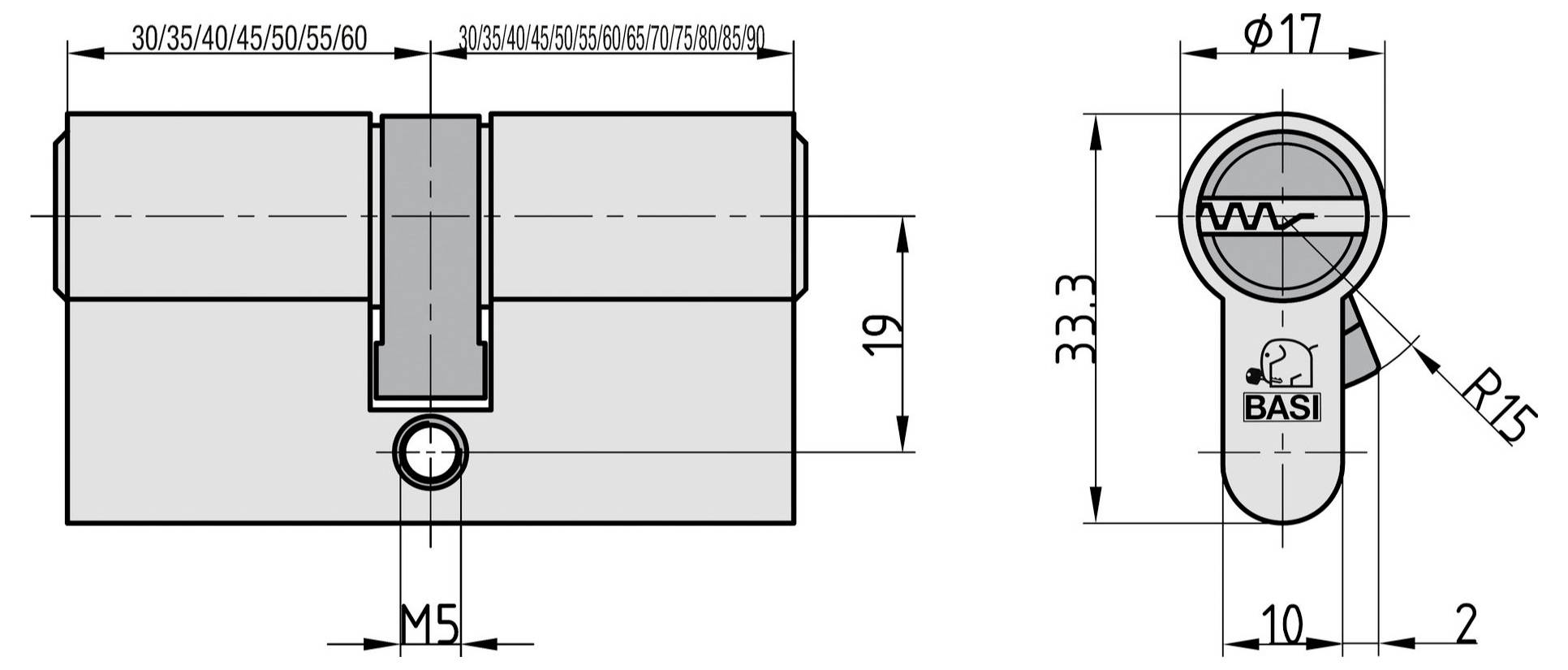

'Technical drawing of a cylinder lock with measurements. Top view shows lock dimensions, side view provides diameter and keyhole details.'
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Profile Double cylinder

  • Common key
  • 3 key

Technical specifications

Product type

Euro profile cylinder

Cylinder dimensions

35 / 35mm

Cylinder inside diameter

35 mm

Cylinder (outside diameter)

35 mm

Size

35/35 mm

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1928931 Basi BM5001-0505-0040 Euro profile cylinder 35 / 35mm

User & Safety Instructions

User & Safety Instructions 1928931 Basi BM5001-0505-0040 Euro profile cylinder 35 / 35mm

Information

Information 1928931 Basi BM5001-0505-0040 Euro profile cylinder 35 / 35mm

Description

BM-35/35 mm profile double cylinder, GL, 3 drill molded key, key with code number, 8 direct blocking elements on 2 different levels, picking/Aufbohr/impact protection, matt nickel-plated brass, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

  • Matt nickel-plated brass

Scope of delivery

  • Profile cylinder
  • 3 key
  • Fit screw (fixing screws)
