Basi BM5031-1505-0040 Euro cylinder with knob 45 / 35mm

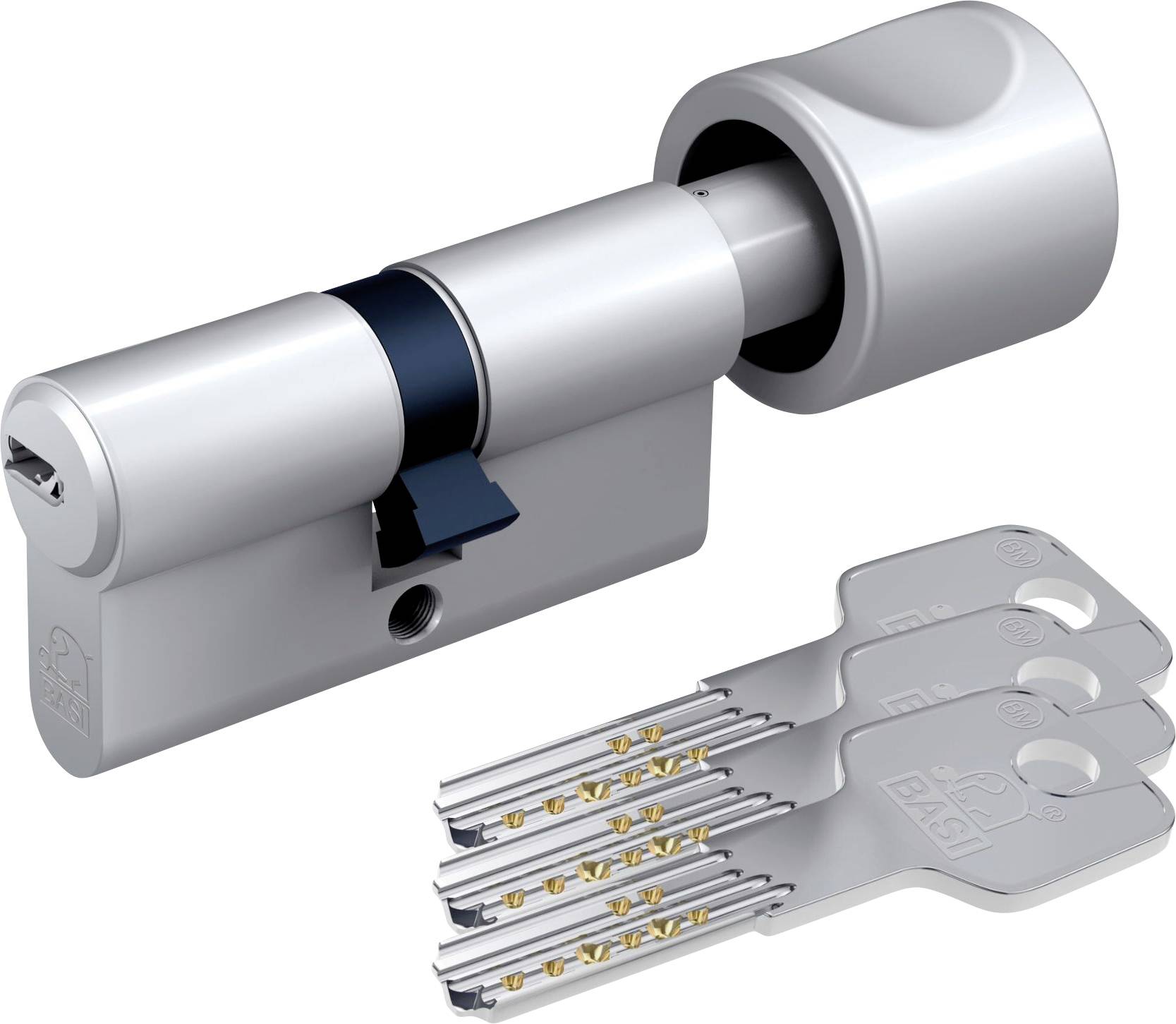

A cylindrical silver lock with a keyhole and three matching silver keys. The lock has a rotating knob, indicating a security device.
Keyring with a key and five circular images showing various doors and locks, illustrating security solutions for different entryways.

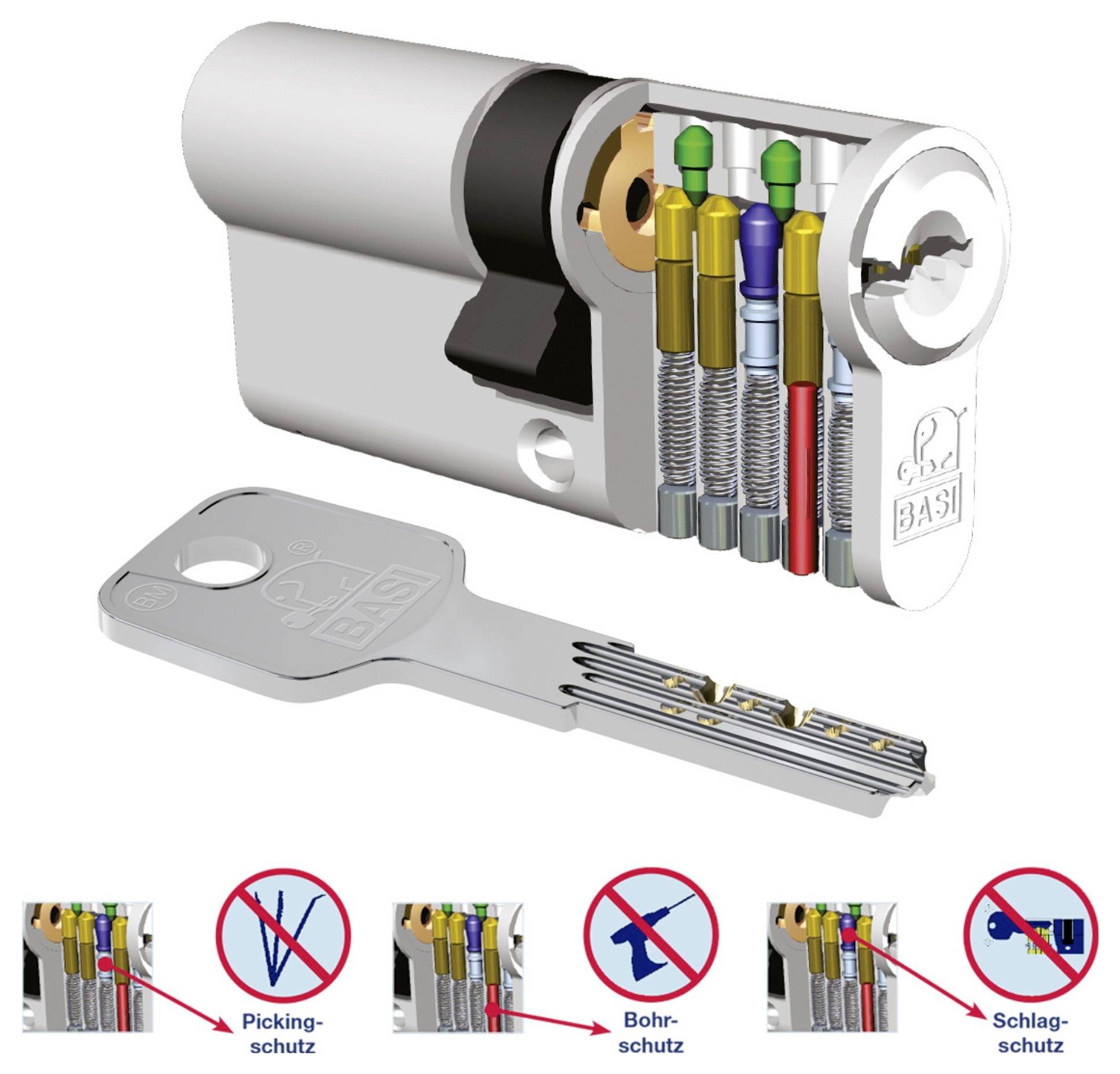

A lock cylinder cutaway shows internal mechanisms with a key inserted. Icons below indicate features: picking protection, drilling protection, and bumping protection.

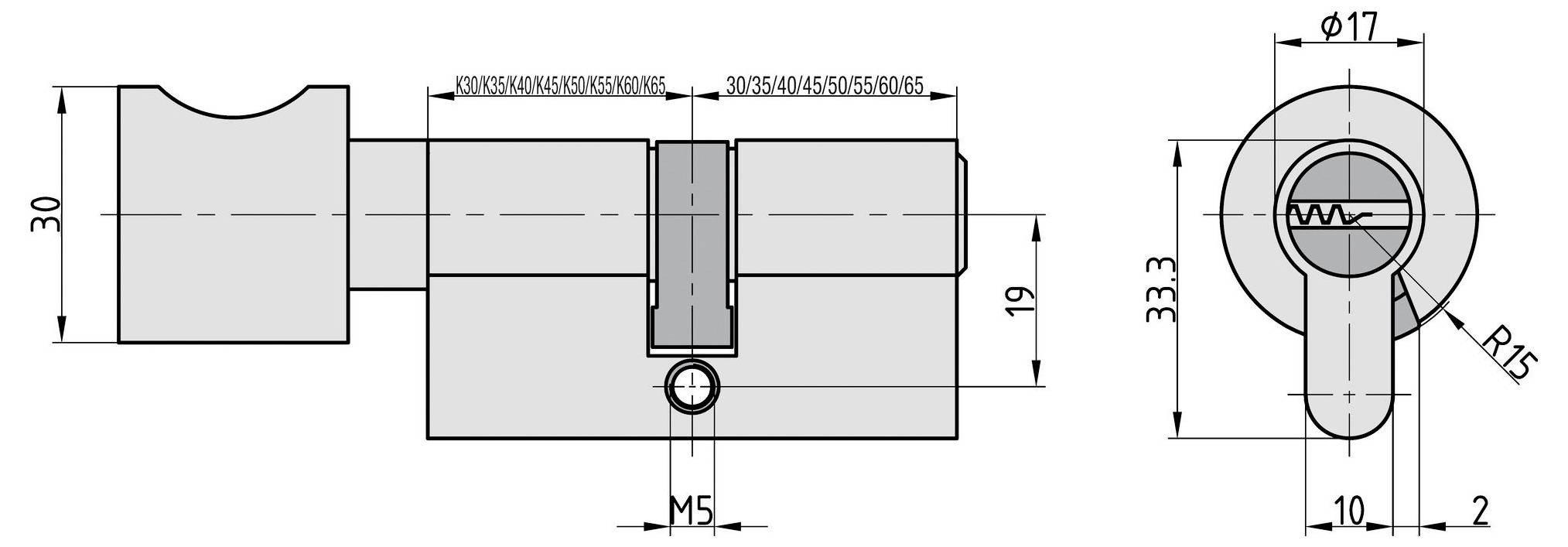

Technical drawing of a cylindrical lock with key dimensions labeled. Left side view shows a horizontal cylinder; right view shows a vertical cross-section.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Profile Knauf cylinder

  • Common key
  • One-sided Knauf
  • 3 key

Technical specifications

Product type

Euro cylinder with knob

Cylinder dimensions

45 / 35mm

Cylinder inside diameter

45 mm

Cylinder (outside diameter)

35 mm

Size

K 45/35 mm

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1929128 Basi BM5031-1505-0040 Euro cylinder with knob 45 / 35mm

User & Safety Instructions

User & Safety Instructions 1929128 Basi BM5031-1505-0040 Euro cylinder with knob 45 / 35mm

Information

Information 1929128 Basi BM5031-1505-0040 Euro cylinder with knob 45 / 35mm

Description

BM-K 45/35 mm profile Knauf cylinder, GL, 3 drill molded key, key with code number, 8 direct blocking elements on 2 different levels, picking/Aufbohr/impact protection, matt nickel-plated brass, tested according to DIN 18252: 2006-12

This text is machine translated.

Features

  • Matt nickel-plated brass

Scope of delivery

  • Profile cylinder
  • 3 key
  • Fit screw (fixing screws)
