Basi BM5200-1030 Euro profile cylinder 40 / 60mm

1/3
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

Profile Double cylinder

  • High-quality profile double cylinder - for front doors / entrance doors

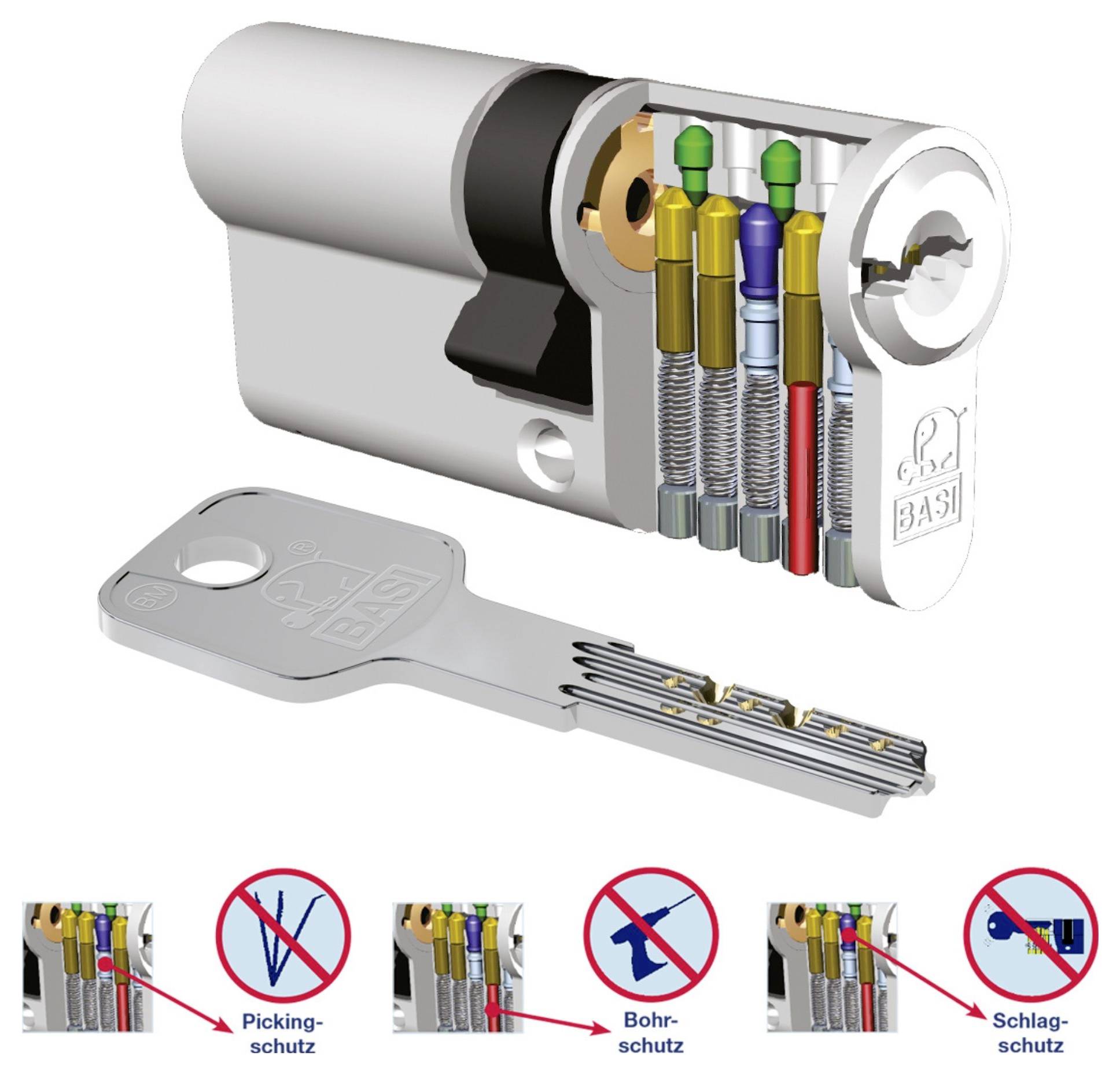

  • With drill-out protection, pick-up protection and impact protection, makes breaking or opening of the cylinder difficult
  • Supplied with 3 drill bit wrenches / reversible wrenches
  • Moving system, with emergency and danger function
  • Material: Nickel-plated brass

Technical specifications

Product type

Euro profile cylinder

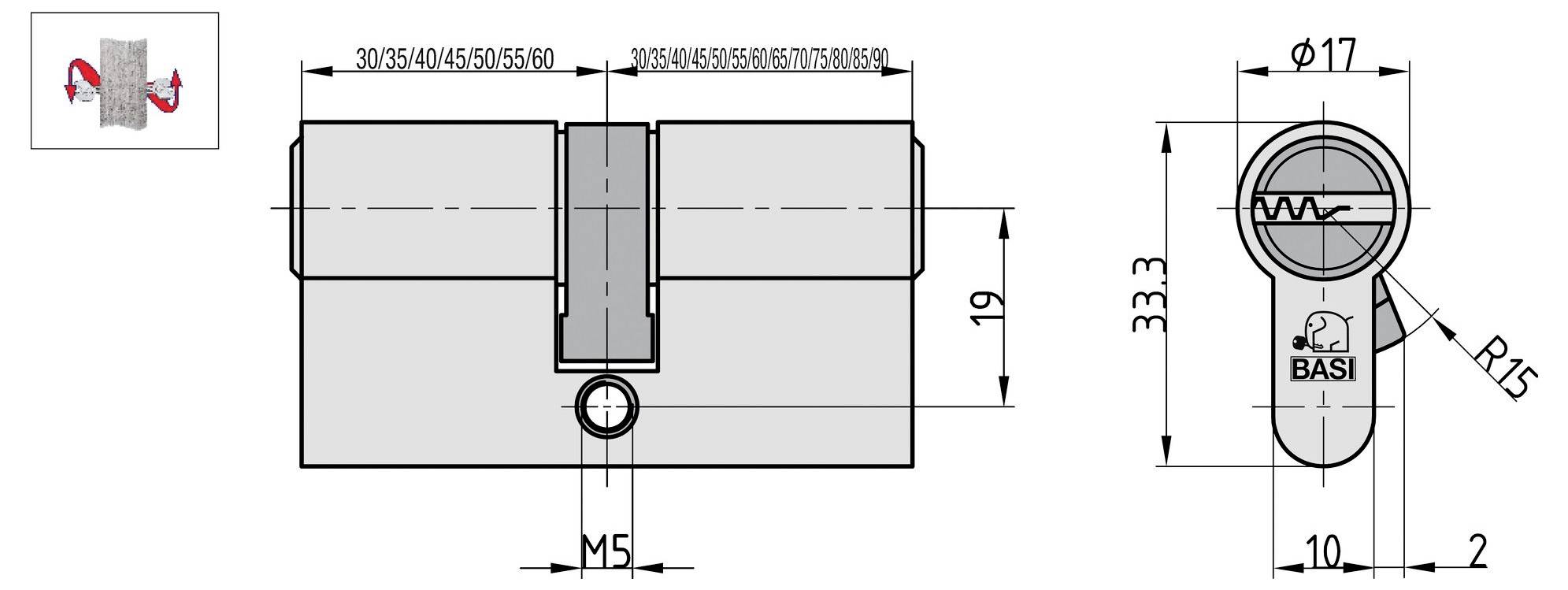

Cylinder dimensions

40 / 60mm

Cylinder inside diameter

40 mm

Cylinder (outside diameter)

60 mm

Size

40/60 mm

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1929205 Basi BM5200-1030 Euro profile cylinder 40 / 60mm

User & Safety Instructions

User & Safety Instructions 1929205 Basi BM5200-1030 Euro profile cylinder 40 / 60mm

Information

Information 1929205 Basi BM5200-1030 Euro profile cylinder 40 / 60mm

Description

The high-quality double profile cylinder of the BASI brand with turning key serves as a secure door lock for your house or living entrance door. The Kern drill hollow cylinder consists of 8 direct locking elements on 2 different levels and thus provides for more safety. The double cylinder provides the best protection through the additional pick-up, drill-up and impact protection and makes it difficult for break-in breakers to break or crack the lock violently. The profile cylinder is equipped with a different closing system. This means that only the 3 enclosed turning keys are suitable. With the emergency and danger function, the door can be opened from outside even if a key is already inserted on the inside of the profile cylinder. The code on the key can be used to make replacement keys at any time from your local key service. In the production of the robust cylinder, particular attention is paid to the highest quality. The precise production and testing is done according to DIN Standard 18252:2006-12 / DIN 18252-10 / DIN EN 1303:2005-04 Reg. No. 34v05.

This text is machine translated.

Features

  • Matt nickel-plated brass

Scope of delivery

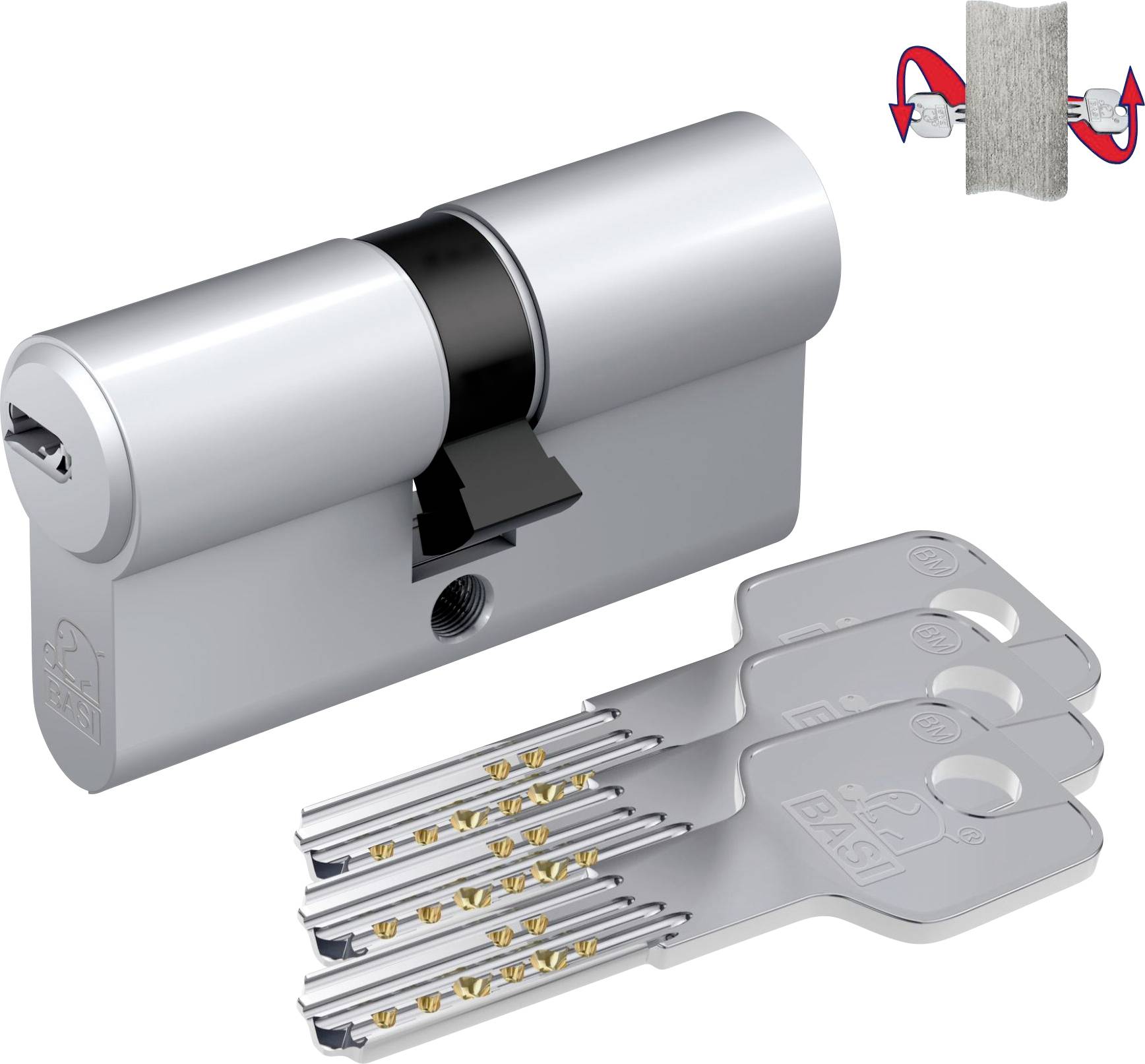

  • Profile cylinder
  • 3 key
  • Fit screw (fixing screws)
