1/6
Benning CM 11 Clamp meter, Handheld multimeter Digital CAT IV 300 V Display (counts): 6000
EAN:
Part number:
Item no:
Number
Total (€ 419.33 / piece)
€
Highlights & Details
TRUE RMS Milliampere Current Clamp Multimeter BENNING CM 11
- Ideal for troubleshooting in electrical installations, control systems, appliances and automotive electrical systems
- Precise measurements of low AC/DC currents with highest resolution of 0.1 mA
- Multifunctional use for voltage measurements (300 V AC/DC), resistance measurements (500 kΩ) and continuity tests
- Precise due to TRUE RMS measuring method
- Compact dimensions ((L x W x H: 206x76x33mm) with a clamp opening of 23 mm
- Measuring category: CAT IV 300 V
Technical specifications
- Display: 4-digit LCD, illuminated; Current (AC): 300.0 mA / 3.000 A / 20.00 A TRUE RMS; Max. resolution / accuracy: 0.1mA/±1% of the measured value + 5 digits; Current (DC): 300.0mA/3.000A/10.00A; Max. resolution / accuracy: 0.1mA / ± 1% of the measured value + 10 digits; Voltage (AC/DC): 50.00 V / 300.0 V TRUE RMS (AC); Max. resolution / accuracy: 0.01V / ± 1% of the measured value +2 digits; Resistance: 500.0Ω/5.000kΩ/50.00kΩ/500.0kΩ; Max. resolution / accuracy: 0.1 Ω/ ± 1 % of the measured value + 2 digits; Continuity test: up to 100 Ω (acoustic/visual); Measured value memory / null balance: HOLD, MIN/MAX memory / ZERO; Max. clamp opening: 23 mm; Automatic switch-off: 15 minutes, can be disabled; Battery low-voltage indication: yes; Dimensions (L x W x H):
- 206 x 76 x 33mm; Measuring category: CATIV300V.
- Voltage reading range DC (min.)
0.01 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.01 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 mA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 mA
- Amperage reading range AC (max.)
20 A
- Reading range - resistance
0.1 Ω - 500 kΩ
- Measurement type (details)
True RMS
- Power supply (details)
2 x 1.5 V Micro (AAA)
- Height
206 mm
- Width
76 mm
- Length
33 mm
- Weight
300 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
CM 11
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 33 x 76 x 206 mm
- Opening range of current clamps
23 mm
Variants(All information is without VAT, plus shipping costs)
Calibrated to
Benning CM 11 Clamp meter, Handheld multimeter Digital CAT IV 300 V Display (counts): 6000
This article
Manufacturer's standards (no certificate)
Minimum order quantity: 1
Multiple: 1
€ 419.33*
Benning CM 11 Clamp meter, Handheld multimeter Calibrated to (ISO standards) Digital CAT IV 300 V Display (counts): 6000
ISO standards
Minimum order quantity: 1
Multiple: 1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1343556 Benning CM 11 Clamp meter, Handheld multimeter Digital CAT IV 300 V Display (counts): 6000
Information
Information 1343556 Benning CM 11 Clamp meter, Handheld multimeter Digital CAT IV 300 V Display (counts): 6000
Description
The BENNING CM 11 is the ideal diagnostic tool for all qualified electricians, service technicians and maintenance technicians in electrical trade and industry. Due to its high accuracy in the AC/DC range, the BENNING CM 11 is designed particularly for troubleshooting in electrical installations, control systems, appliances and automotive electrical systems. Precise measurements of low AC/DC currents with highest resolution of 0.1 mA. Multifunctional use for voltage measurements (300 V AC/DC), resistance measurements (500 kΩ) and continuity tests. TRUE RMS measuring method indicates the actual effective value of an alternating current correctly – irrespective of whether the signal waveform of the current is sinusoidal or distorted. Measurements of process signals from 4 mA to 20 mA without interruption of the current loop as well as of load currents of up to 20 A AC / 10 A DC. Measurement of stand-by current on automotive batteries for testing with regard to battery discharge due to leakage. Compact dimensions ((L x W x H: 206x76x33mm) with a clamp opening of 23 mm. Highest measurement method CAT IV 300 V allows measurements directly at the source of low voltage installation
Scope of delivery
- Bag
- Batteries
- Measuring leads
- Operating instructions.
Frequently Bought Together
(*All information is plus legal VAT) This article
Benning CM 11 Clamp meter, Handheld multimeter Digital CAT IV 300 V Display (counts): 6000
Conrad Electronic
€ 419.33*
VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)
Conrad Electronic
€ 0.34*
-33%
VOLTCRAFT MS-4S Test lead adapter Connector blade-type mini fuse - Banana jack 4 mm Black, Red
Conrad Electronic
€ 12.60
€ 8.39*

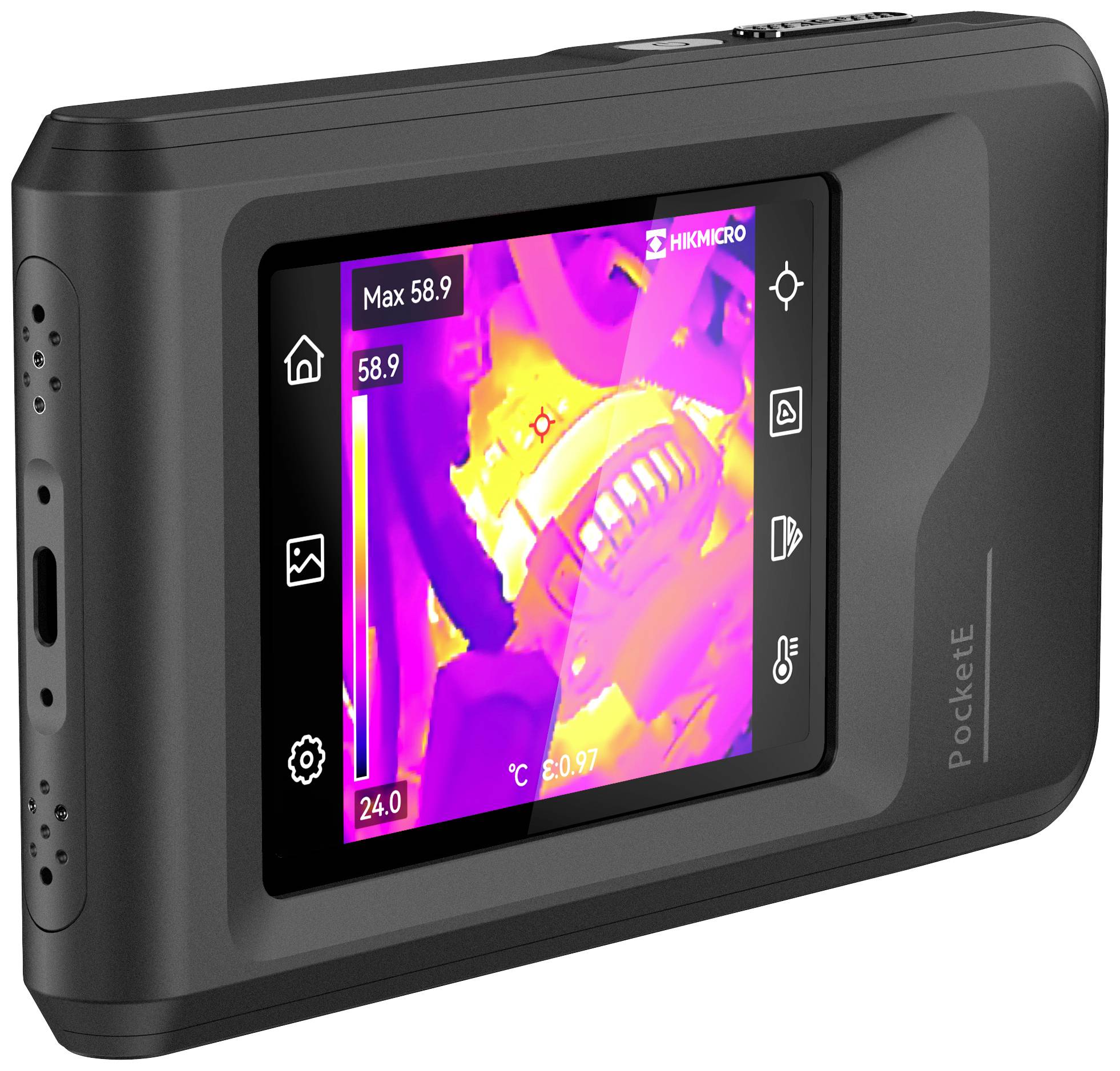

HIKMICRO PocketE IR camera -20 up to 350 °C 96 x 96 Pixel 25 Hz Built-in LED light, Wi-Fi
