Benning CM 10-PV Clamp meter Digital Data logger CAT IV 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Number
Total (€ 419.33 / piece)
€
Only 9 Piece(s) available
Highlights & Details
Clamp-on ammeter CM 10-PV
- CAT IV 600 V
- Voltage measurement up to 1500 V AC/2000 V DC via measuring adapter TA PV
- Microampere and temperature measurement range for heating, ventilation and air conditioning technology
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 µA
- A DC reading range (max.)
600 A
- A AC reading range (min.)
0.1 µA
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
0.1 Ω - 600 kΩ
- Reading range - capacity
0.1 µF - 1 mF
- Frequency reading range
0.01 Hz - 10 kHz
- Temperature
-40 to +400 °C
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Interfaces
Bluetooth®
- Power supply (details)
2x 1.5 V AA batteries
- Height
130.0000 mm
- Width
270.0000 mm
- Weight
0.8500 kg
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
CM 10-PV
- Display
Digital
- Display (counts)
6000
- Dim
(W x H) 270.0000 mm x 130.0000 mm
- Features
Data logger
- Opening range of current clamps
37 mm
Variants(All information is without VAT, plus shipping costs)
Type
Amperage reading range AC (max.)
Voltage DC reading range (max.)
Calibrated to
Reading category
Current reading
Voltage metering
V AC reading range (max.)
Benning CM 10-PV Clamp meter Digital Data logger CAT IV 600 V Display (counts): 6000
This article
CM 10-PV
600 A
1000 V
Manufacturer's standards (no certificate)
CAT IV 600 V
AC/DC
AC/DC
1000 V
Minimum order quantity: 1
Multiple: 1
€ 419.33*
Benning CM 9-1 Clamp meter Digital CAT IV 300 V Display (counts): 6000
CM 9-1
60 A
600 V
Manufacturer's standards (no certificate)
CAT IV 300 V
AC
AC/DC
600 V
Minimum order quantity: 1
Multiple: 1
€ 452.94*
Benning CM 9-2 Clamp meter Digital Data logger CAT IV 300 V Display (counts): 6000
CM 9-2
60 A
Manufacturer's standards (no certificate)
CAT IV 300 V
AC
Minimum order quantity: 1
Multiple: 1
€ 570.59*
Benning CM 1-4 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
CM 1-4
200 A
1000 V
Manufacturer's standards (no certificate)
CAT III 1000 V
AC
AC/DC
1000 V
Minimum order quantity: 1
Multiple: 1
€ 231.09*
Benning CM 10-1 Clamp meter Digital Data logger CAT IV 600 V Display (counts): 6000
CM 10-1
1500 A
1000 V
Manufacturer's standards (no certificate)
CAT IV 600 V
AC/DC
AC/DC
1000 V
Minimum order quantity: 1
Multiple: 1
€ 390.76*
Benning CM 10-1 Clamp meter Calibrated to (ISO standards) Digital Data logger CAT IV 600 V Display (counts): 6000
CM 10-1
1500 A
1000 V
ISO standards
CAT IV 600 V
AC/DC
AC/DC
1000 V
Minimum order quantity: 1
Multiple: 1
Benning CM 10-PV Clamp meter Calibrated to (ISO standards) Digital Data logger CAT IV 600 V Display (counts): 6000
CM 10-PV
600 A
1000 V
ISO standards
CAT IV 600 V
AC/DC
AC/DC
1000 V
Minimum order quantity: 1
Multiple: 1
Benning CM 1-4 Clamp meter Calibrated to (ISO standards) Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
CM 1-4
200 A
1000 V
ISO standards
CAT III 1000 V
AC
AC/DC
1000 V
Minimum order quantity: 1
Multiple: 1
Benning CM 9-1 Clamp meter Calibrated to (ISO standards) Digital CAT IV 300 V Display (counts): 6000
CM 9-1
60 A
600 V
ISO standards
CAT IV 300 V
AC
AC/DC
600 V
Minimum order quantity: 1
Multiple: 1
Benning CM 9-2 Clamp meter Calibrated to (ISO standards) Digital Data logger CAT IV 300 V Display (counts): 6000
CM 9-2
60 A
ISO standards
CAT IV 300 V
AC
Minimum order quantity: 1
Multiple: 1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2236940 Benning CM 10-PV Clamp meter Digital Data logger CAT IV 600 V Display (counts): 6000
Description
Digital clamp-on ammeter designed for photovoltaic systems as well as heating, ventilation and air conditioning systems
This text is machine translated.
This text is machine translated.
Features
- Data logger, memory function and Bluetooth® Low Energy 4.0 interface
- App BENNING MM-CM Link for downloading, storing and sharing measurements via smartphone/tablet
- Inrush function for measuring inrush currents (motors, etc.)
- Low pass filter (HFR high frequency suppression) for measurements on clocked motor drives
- Measuring input for flexible current transformer BENNING CFlex 1 to 3000 A AC (optional)
- Volt sensor for non-contact phase and cable break test (red LED)
- Handy and break-proof soft-grip casing
Scope of delivery
- Benning CM 10-PV
- Bag
- Batteries
- Measurement line rate
- Measuring adapter TA PV
- Alligator clips
- Wire temperature sensor
Frequently Bought Together
(*All information is plus legal VAT) This article
Benning CM 10-PV Clamp meter Digital Data logger CAT IV 600 V Display (counts): 6000
Conrad Electronic
€ 419.33*
VOLTCRAFT Industrial LR6 AA battery Alkali-manganese 3000 mAh 1.5 V 1 pc(s)
Conrad Electronic
€ 0.42*

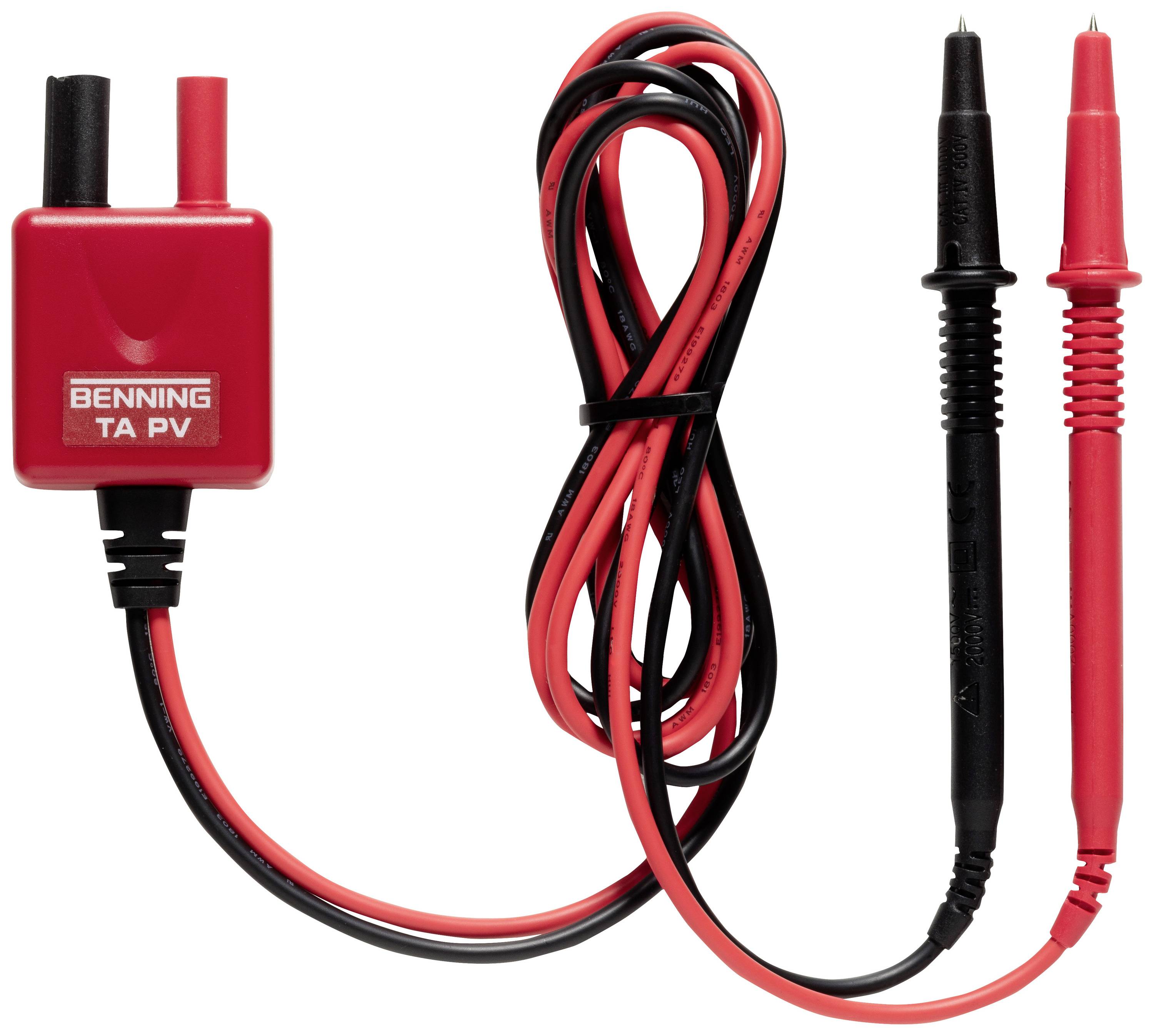

Benning 10217846 measurement cable 1 pc(s)
