Benning IT 200 Electrical tester Calibrated to (DAkkS standards) VDE standard 0100-600, 0105-100

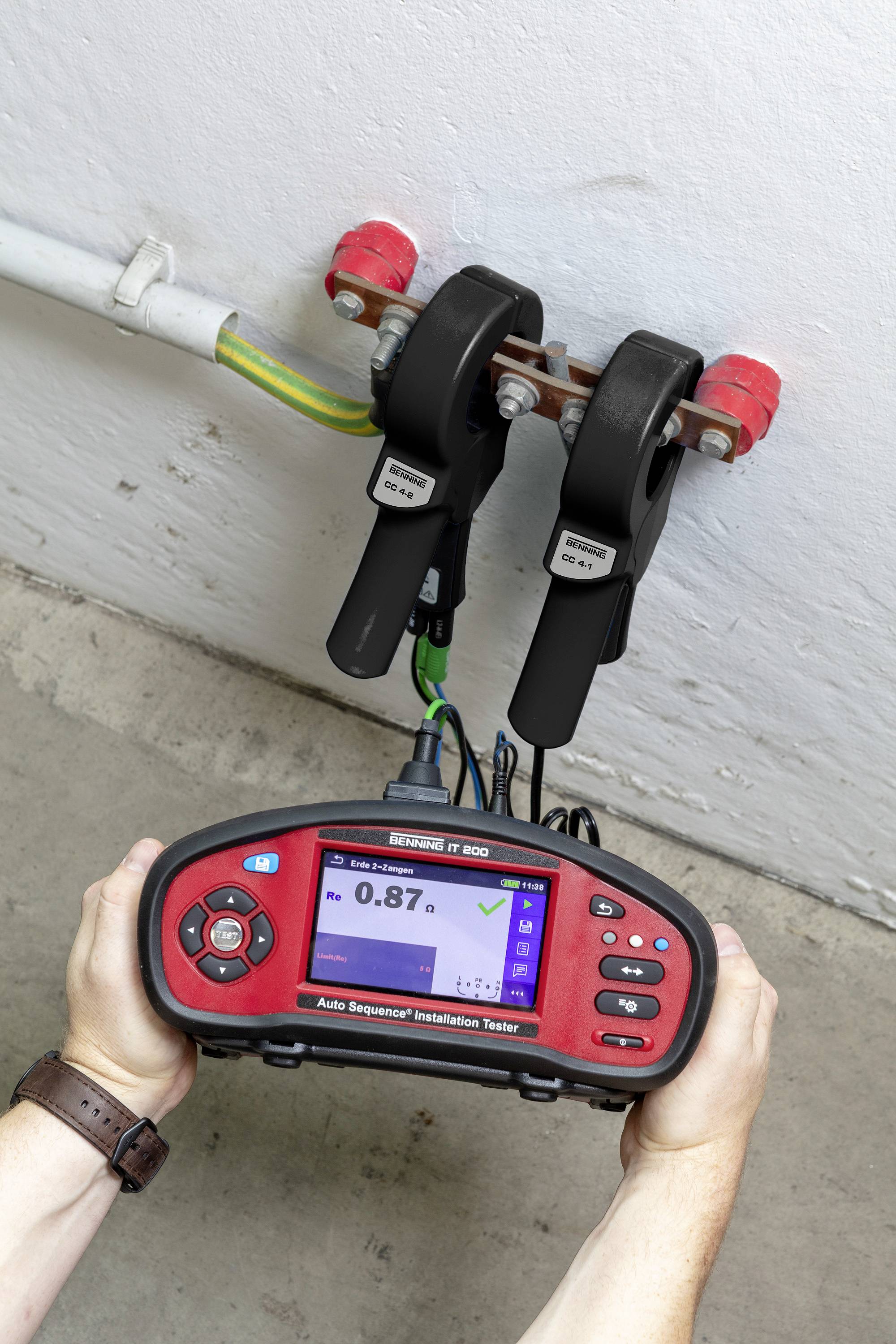

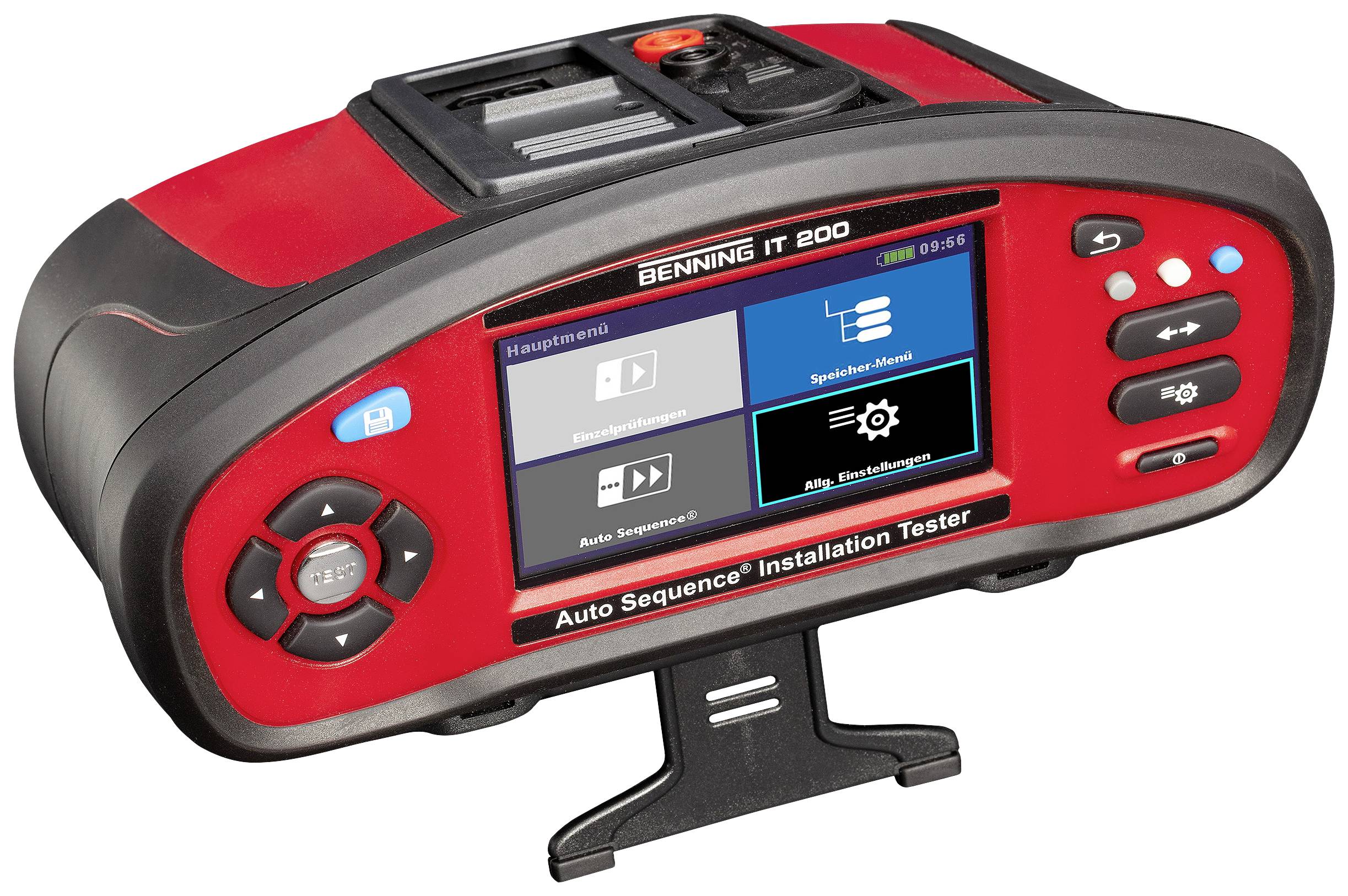

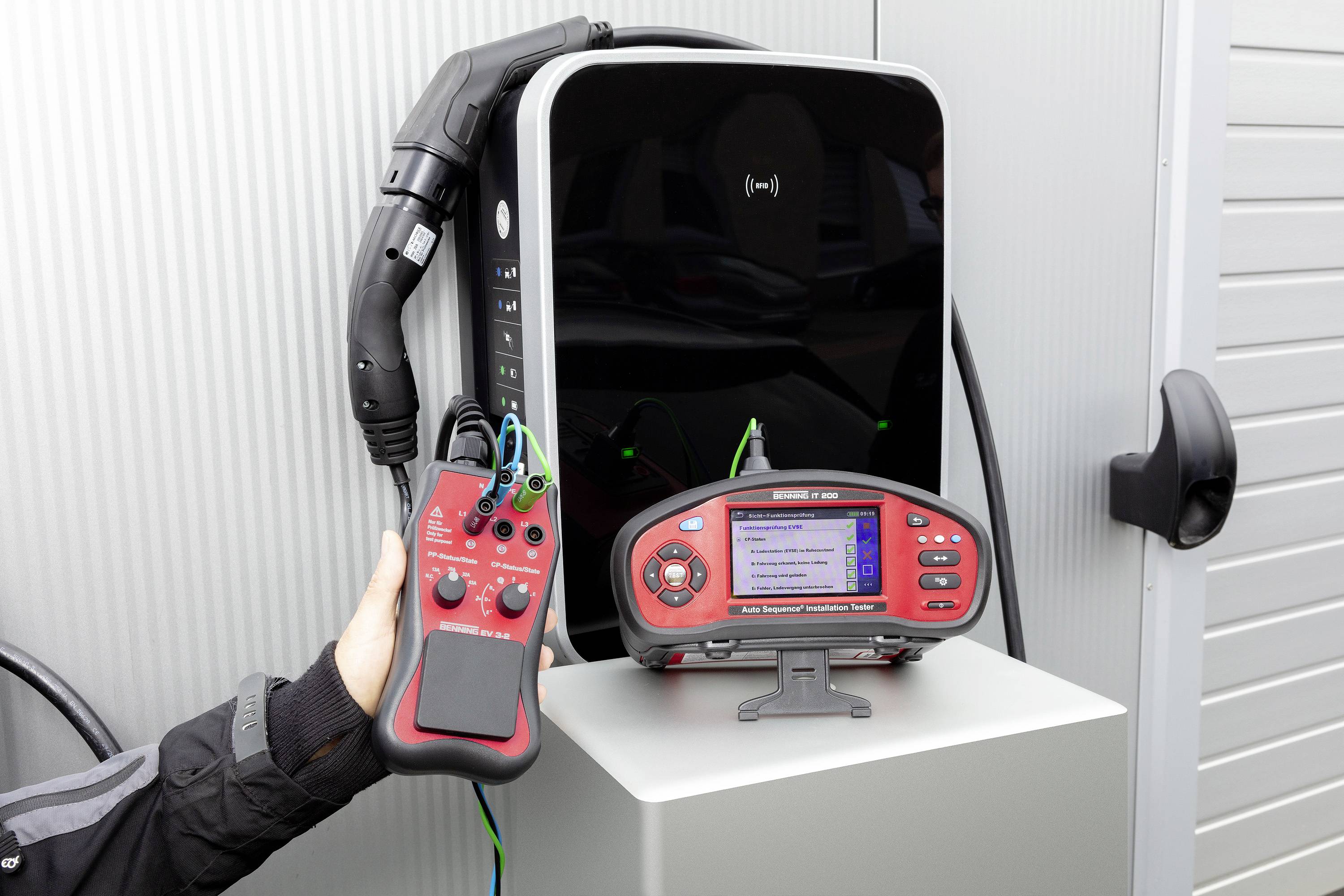

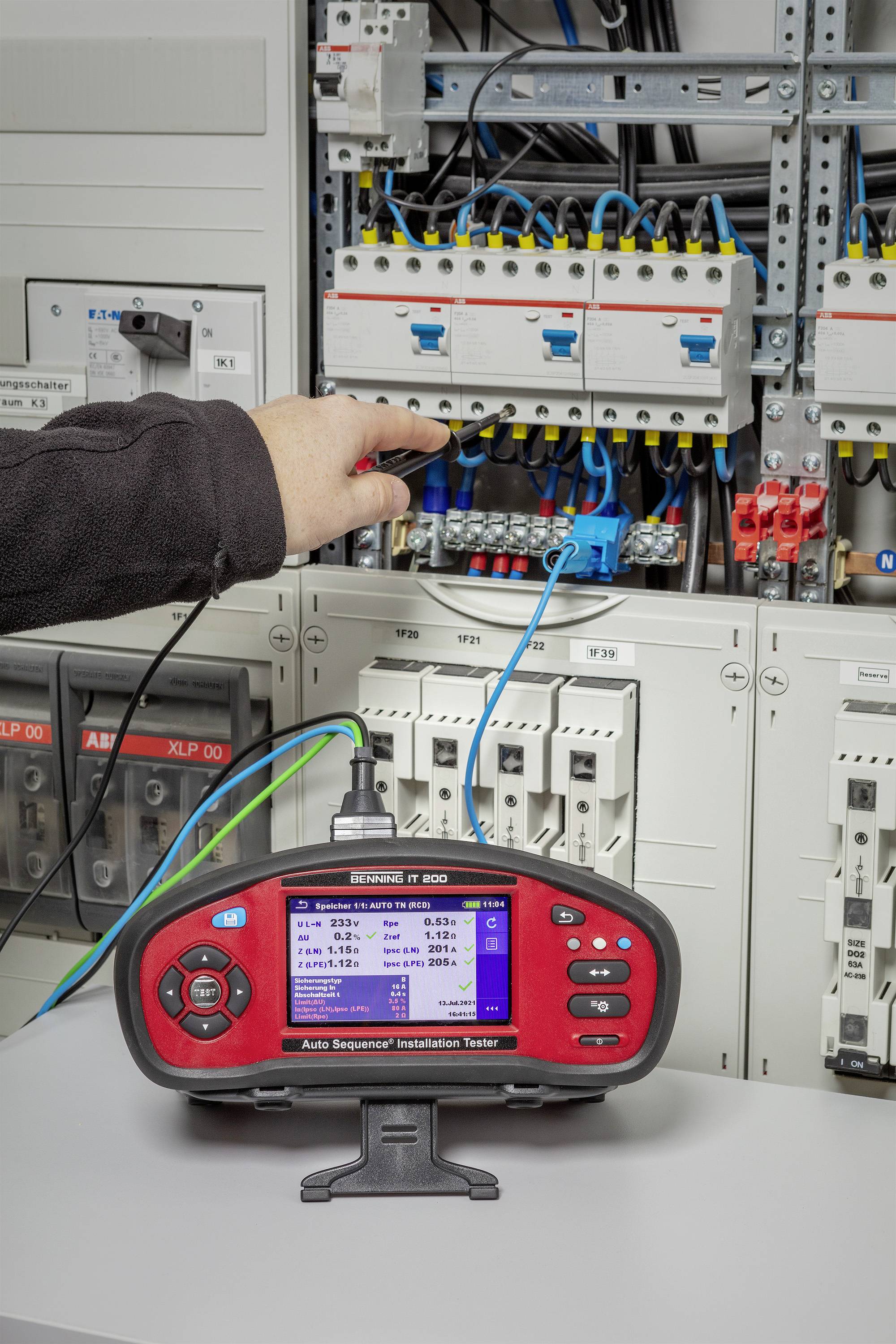

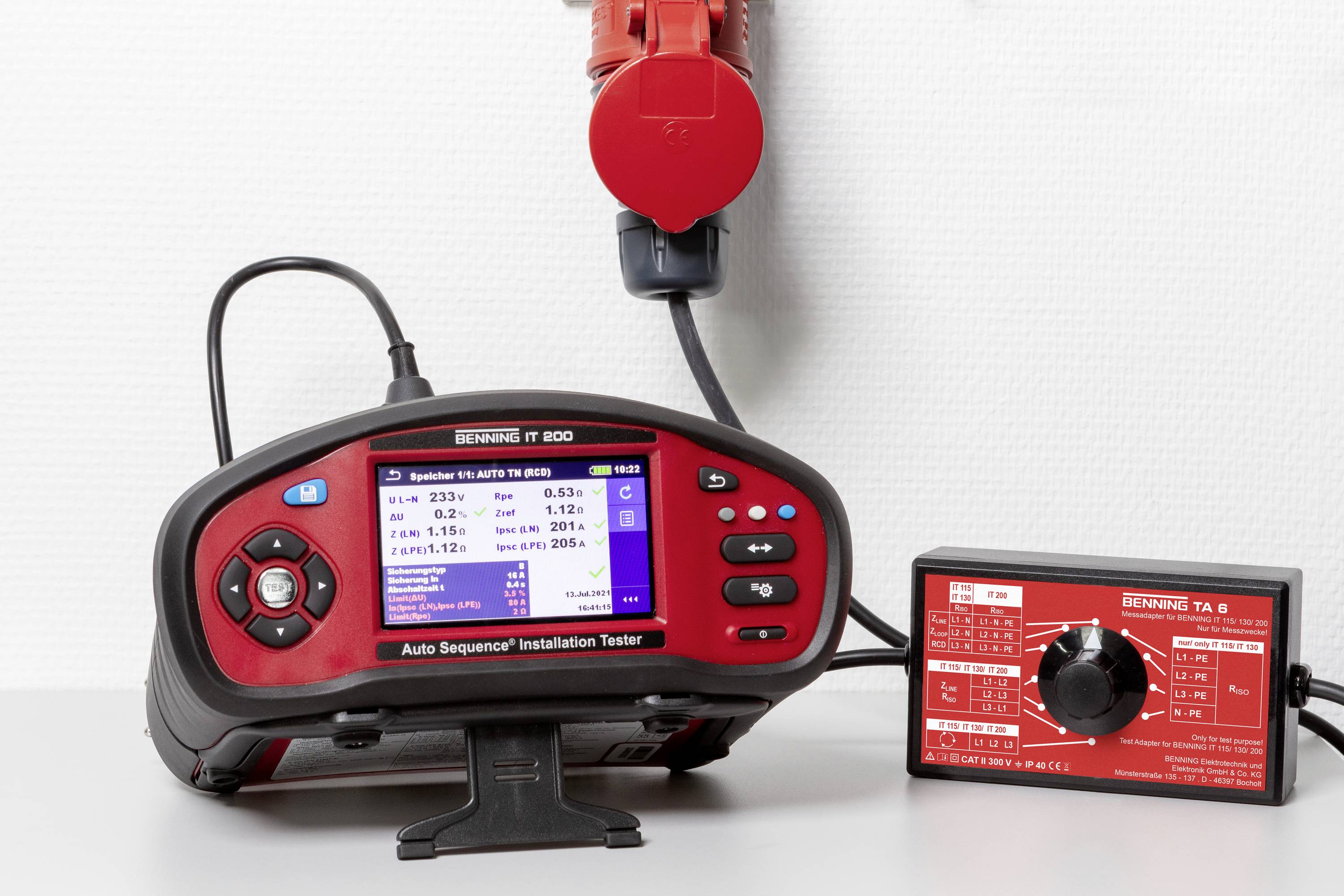

Auto Sequence® installation tester for testing electrical systems according to DIN VDE 0100-600 (IEC 60364-6) and DIN VDE 0105-100 (EN 50110), incl. Testing of FI/ RCD-protection switch type B/ B+ (all-current sensitive) and type AC, A, F (mixed frequencies) as well as testing of EV-charging stations (wall boxes) according to VDE 0122-1 (DIN EN/ IEC 61851-1) of the charging mode 3. Further measurements on optional accessories, such as TRUE RMS current, power and harmonics via current clamp adapter Benning CC 4-1 (044166) / Benning CC 4-2 (044167), earthing resistance using a 3-wire method via Benning earthing set (044113) or 2-clamp meter adapter Benning CC 4-1 (044166) / Benning CC 4-2 (044167), Illumination via Benning Luxmeter type B (044111) as well as the testing of EV charging stations (wall boxes) via the test adapter Benning EV 3-2 (044169) are possible. Especially for the testing of EV charging stations (Wallboxes) specially tuned Auto Sequences® and documentation are set up. The device is operated simply via the 4.3" color touch display and push-buttons. Many functions supplement the operating possibilities, like individual tests and pre-programmed auto-sequence® measurements, order manager for managing test orders, the creation of complex system structures, free firmware-up¬¬updates as well as a powerful 4400 mAh Li-ion battery pack.
