Name: Benning ST 725 Equipment tester Calibrated to (ISO standards) VDE standard 0701-0702
Brand: Benning
SKU: 1411709

Digital test device displaying values: 'Rpe 0.09 Ω', 'Riso 19.99 MΩ', 'ILeak 0.12 mA'. Result: 'PASS' stored under number 939.

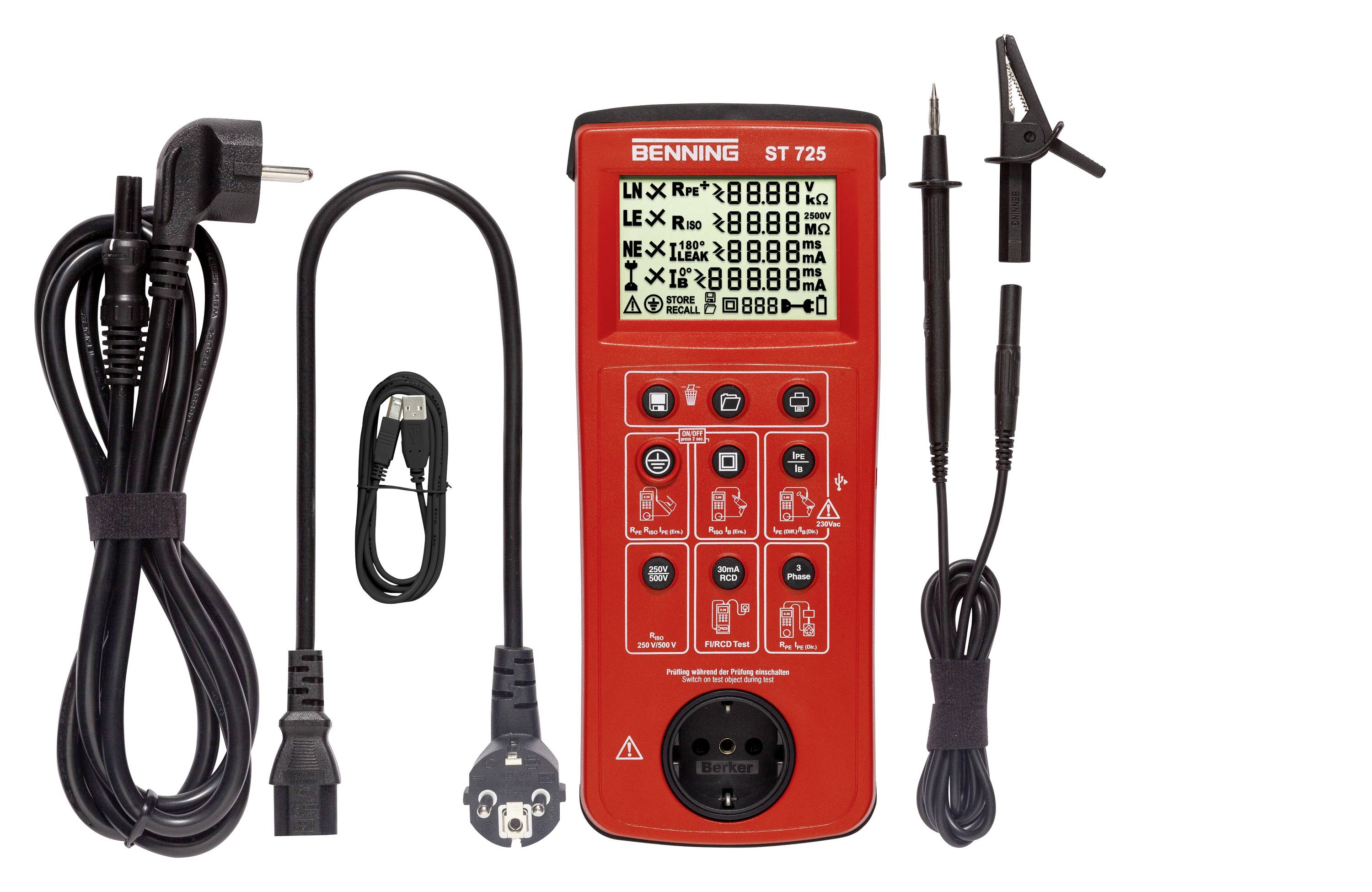

Red Benning ST 725 multimeter with LCD display, various cables and measuring leads for voltage and current measurement.

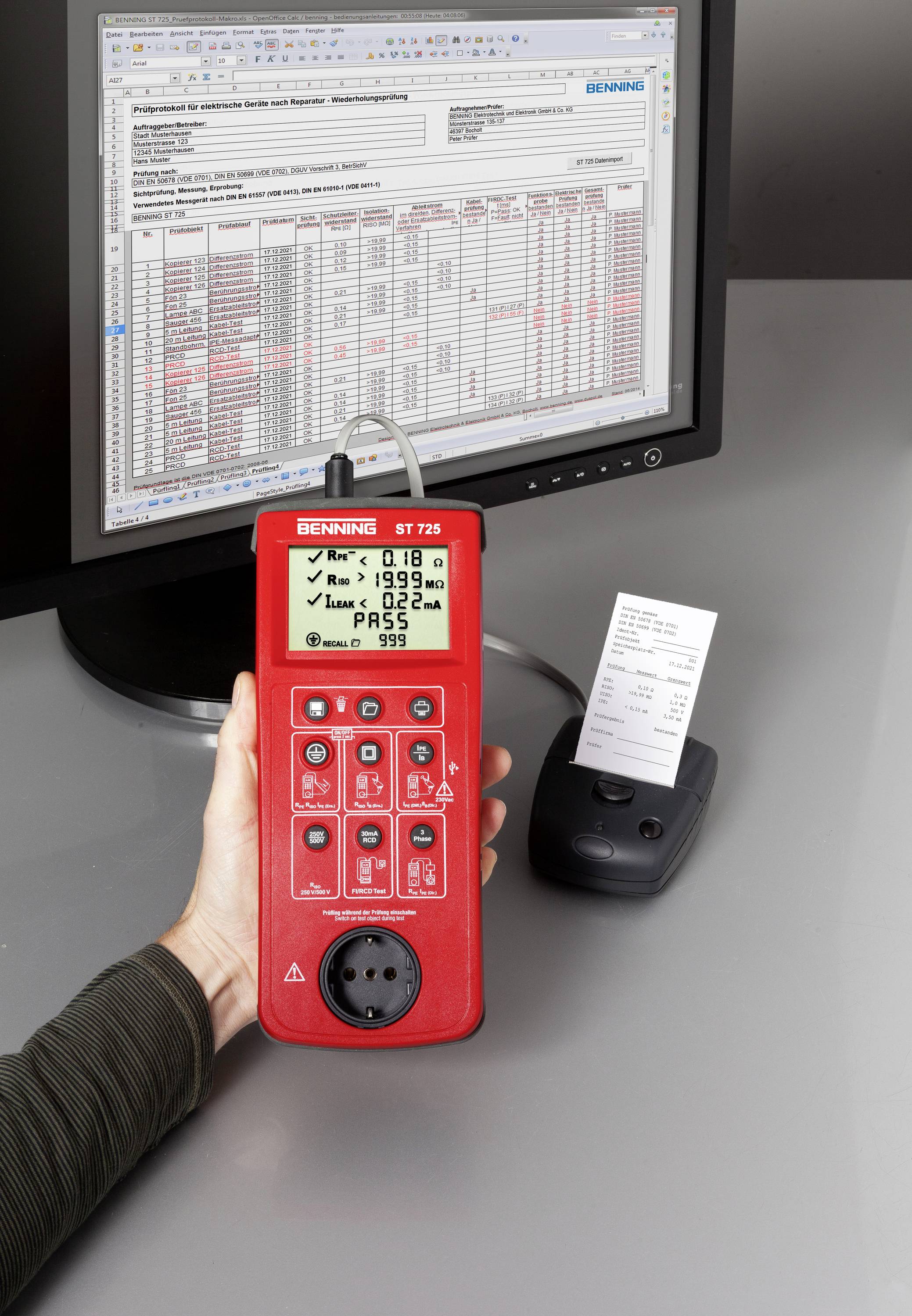

A person is holding a red testing device in front of a computer screen displaying a table. A printer is outputting a small paper protocol.

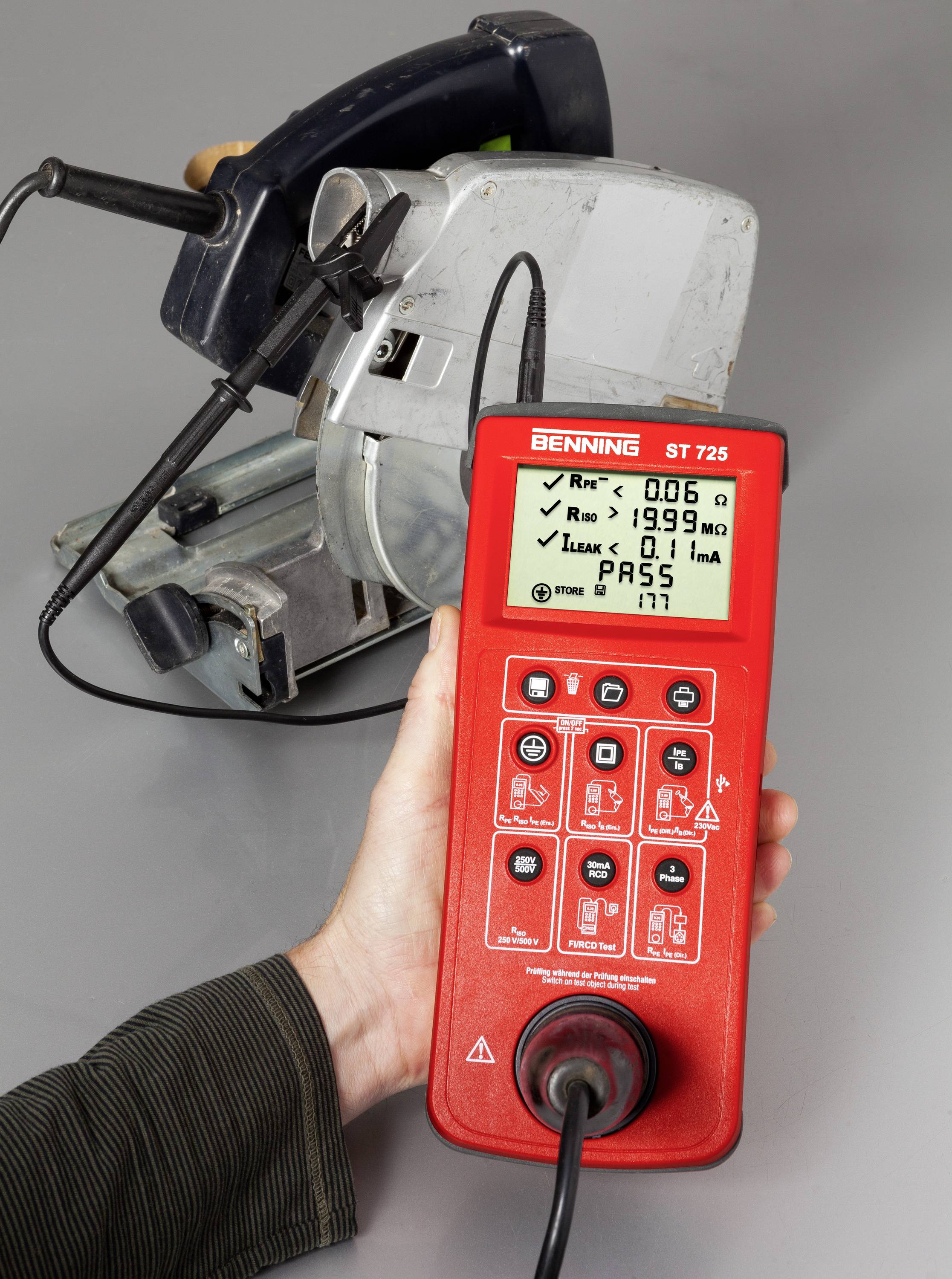

A hand is holding a red electrical testing device that is checking the safety of an electric saw. The display shows 'PASS'.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

VDE 0701-0702 device tester ST 725

Measured value memory for 999 measurements
Data download via USB
Testing FI/RCD circuit breaker
Testing 3-phase devices
With battery and mains operation

Technical specifications

Protective earthing conductor resistance (200 mA test current polarity reversal)
Insulation resistance (250/500 V Test voltage), ISO-test voltage can be reduced to 250 V for devices with discharge
Protective earthing conductor/touch current with mains mode (difference method / direct measurement)/battery mode (spare leakage current procedure)
Testing FI/RCD circuit breaker (30 mA) with measurement of release time
Mains voltage measurement via safety plug
Testing 3-phase devices (with optional measuring adapters) under functional conditions

Product type: Equipment tester

: ISO standards

Reading category: CAT II 300 V

Interfaces: USB

Dim: (L x W x H) 55 x 115 x 270 mm

Weight: 950 g

: IP40

Reading range (VDE): Earth leakage resistance
Insulation resistance
Leakage current
Earth leakage current
Touch voltage
Voltage

DIN standard: DIN EN 62638

Display type: Digital (LCD)

Width: 115 mm

Height: 270 mm

Length: 55 mm

Test procedure: automated

Voltage supply: Battery
230 V/AC

Memory (space): 999

Memory: Yes

Type: ST 725

VDE standard: 0701-0702

Features: RCD/FI testing

Display (details): LCD

Interfaces: USB

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1411709 Benning ST 725 Equipment tester Calibrated to (ISO standards) VDE standard 0701-0702

Information

Information 1411709 Benning ST 725 Equipment tester Calibrated to (ISO standards) VDE standard 0701-0702

Description

With the battery and mains-powered device tester ST 725, portable, simple and inexpensive testing of electrical equipment / work equipment according to DIN VDE 0701-0702, DGUV Rule 3 (BGV A3), ÖVE/ÖNORM E 8701, NEN 3140. Mains operation allows complete testing of devices with power supplies such as, electronically controlled equipment/tools, PC's, photocopiers, washing machines under operating conditions.

This text is machine translated.

Features

Measured value memory for 999 test objects, read out via Micro-USB interface
Integrated real-time clock for the storage of the measured values with date of test
Limiting values pre-set according to VDE-standard
Automatic test sequences for devices of Class I, II (III), low heat device conductors and cord reel with good / bad rating.

Scope of delivery

6 batteries (type AA)
Bag
Test lead with grip clip
Power supply cable
Cold unit lead
Micro USB cable
Software CD
User manual.

Description

Features

Measured value memory for 999 test objects, read out via Micro-USB interface
Integrated real-time clock for the storage of the measured values with date of test
Limiting values pre-set according to VDE-standard
Automatic test sequences for devices of Class I, II (III), low heat device conductors and cord reel with good / bad rating.
