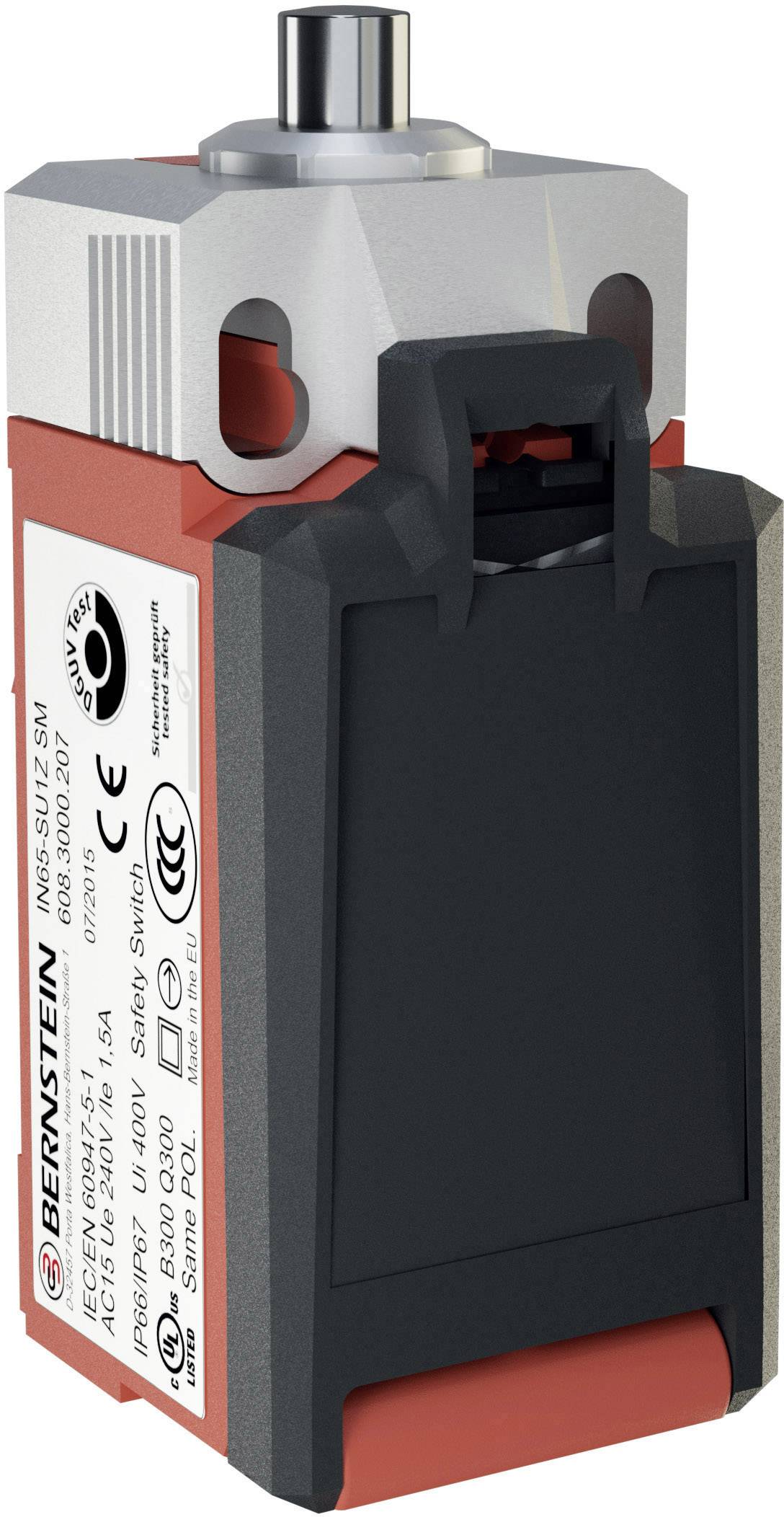

Image similar
BERNSTEIN 6083000305 IN65-E2 AHDM Door-operated switch 240 V AC 5 A Lever momentary IP66/IP67 5 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Insulated position switches
- Modular design
- Folding snap-in lid
- Protection class IP66 and IP67
- Metal actuator catch
- Metal fixing clamp
- Standard switch according to DIN EN 50047
- Highest reliability at low currents (1 mA)
- Tool-free rotation and Replacement Of the actuator
Technical specifications
- Product type
Door-operated switch
- Connection
Screws
- Operation type
Lever
- Switching voltage
240 V AC
- Switching current (max.)
5 A
- Contact type
1 breaker
1 maker
- Contact opening
Slow link with overlap
- Functions
momentary
- Min. temperature
-30 °C
- Max. temperature
+75 °C
IP66/IP67
- Durability
30 x 106 switching cycles
- Material
Thermoplastic
- Width
31 mm
- Type
IN65-E2 AHDM
- Content
5 pc(s)
- Dim
(L x W x H) 260 x 31 x 37.9 mm
- Height
37.9 mm
- Length
260 mm
Documents & Downloads
Datasheet
Datasheet 2179785 BERNSTEIN 6083000305 IN65-E2 AHDM Door-operated switch 240 V AC 5 A Lever momentary IP66/IP67 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2179785 BERNSTEIN 6083000305 IN65-E2 AHDM Door-operated switch 240 V AC 5 A Lever momentary IP66/IP67 5 pc(s)
Description
The IN62 and IN65 series are standard switches according to DIN EN 50047. Due to their dimensions as well as the variety of contacts and actuators, the switches can be used in almost any industrial application for safe position monitoring. The metal actuator catch and mounting clamp make the product particularly robust and powerful. The series optimally combines the economic advantages of a plastic switch with the robustness of a metal switch.
