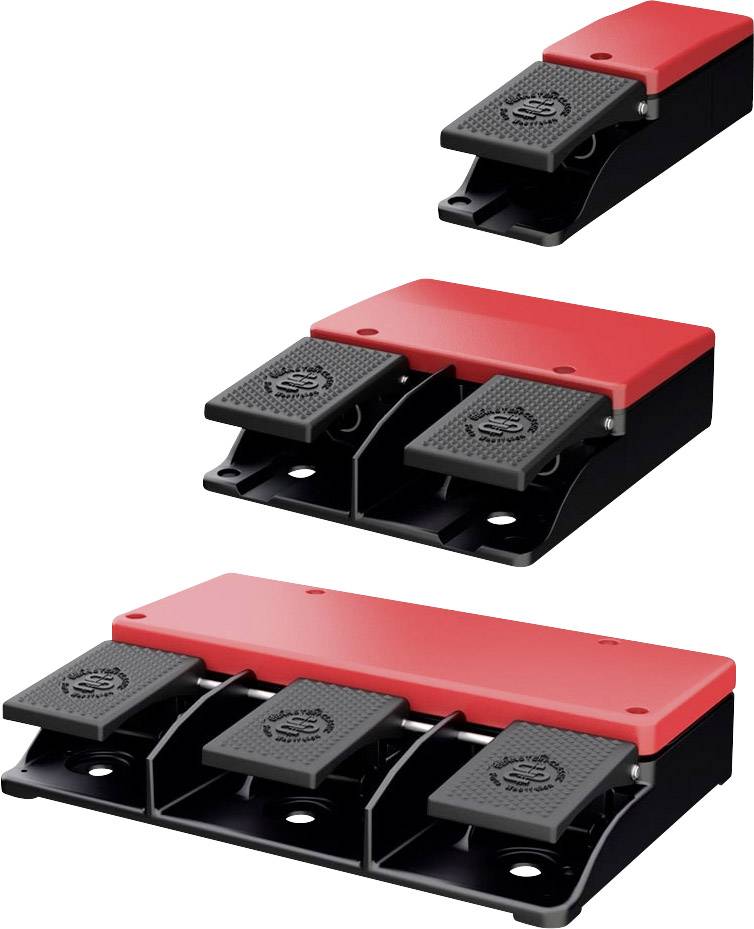

BERNSTEIN F2-ZSP3D/ZSP3D UN Foot switch 5 A 2-pedal + protective cover 1 breaker, 2 makers IP67 1 pc(s) Piece
Packaging type
Piece
Product type
Foot switch
Functions
momentary
Operation type
2-pedal
Switching current (max.)
5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Protection class: I
- Rated surge voltage strength: 2.5 KV
- Rated operating voltage: 240 V AC and 24 V DC
- Forced opening: According to IEC/EN 60947-5-1, Appendix K (pedal stop)
- Mounting: 2 screws M8
- Connection type: Contact screws M3.5
- conductor cross-sections 1: Wire-end sleeve 0.25 – 1 mm2
- conductor cross-sections 2: Wire-end sleeve with plastic sleeve 0.25 – 1.5 mm2
- Cable entry: 1 x M20 x 1.5
- Rated operating voltage range: 10-39 V/DC
- Reverse polarity protection: Yes
- Switching element function: PNP, closer
- Voltage drop:< 3 V
- Actuators: Foot lever (PA)
- Switching force (middle of pedal) (per pedal) 1.Position: 10 N
- Switching force (middle of pedal) (per pedal) 2.Position: 25 N
- Pressure point (per pedal): ≈200N
- Switching frequency: Max. 30/min
- Contact type (per pedal): 1 NC contact, 2 NO contacts (e.g.)
- Weight with accident protection cover: ≈ 2.3 kg
- Rated insulation voltage: 250 V
- Gebrauchskategorie1: 24 V DC/ 1.0 A
- Short-circuit protection device: D-fuse 4 A GG
- Protective conductor connections: 2 x M4
- Switching current: 400 mA
- Operating current<: 20 mA
- Packaging type
Piece
- Product type
Foot switch
- Switch/button features
+ protective cover
- Functions
momentary
- Operation type
2-pedal
- Contact type
1 breaker
2 makers
- Material
Aluminium (die-cast)
- Connection
Screws
- Switching current (max.)
5 A
- Min. temperature
+50 °C
- Max. temperature
-10 °C
- Thread size
M20 x 1.5
- Length
250 mm
- Width
277 mm
- Height
145 mm
IP67
- Actuating force
10 N
- Content
1 pc(s)
- Dim
(L x W x H) 250 x 277 x 145 mm
- Switching current (inductive)
1.5 A
- Type
F2-ZSP3D/ZSP3D UN
- UKCA
not relevant
