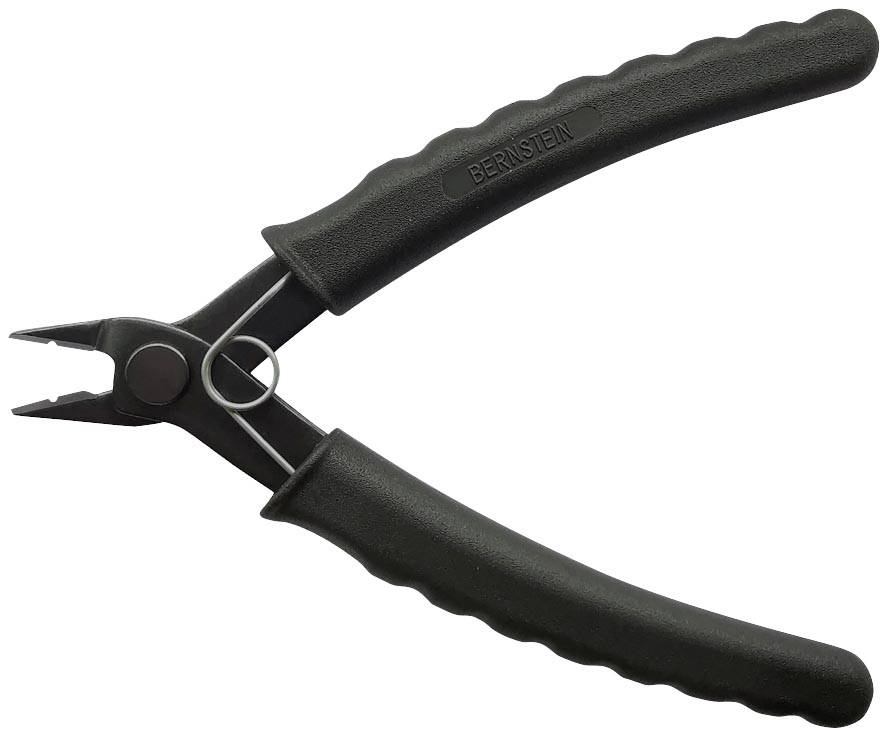

BERNSTEIN Tools for Electronics 3-0645-ESD ESD Stripper side cutter combo 26 up to 22 awg 0.8 mm (max)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Stripper side cutter combo
- Suitable for
CU cables
- Operating range (diameter)
0.8 mm (max)
- Operating range (diameter) (max.)
0.8 mm
- Operating range (AWG diameter)
26 up to 22 awg
- Range of use
ESD
- Operating range (AWG cross section) (min.)
22 awg
- Operating range (AWG cross section) (max.)
26 awg
- Edge hardness
58 HRC
- Material
Tool steel
- Material properties
burnished
- Length
135 mm
- Width
10 mm
- Weight
70 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2595711 BERNSTEIN Tools for Electronics 3-0645-ESD ESD Stripper side cutter combo 26 up to 22 awg 0.8 mm (max)
Description
Wire stripper side cutter standard, with spring, without wire wadding, for CU wires up to Ø 0.8 mm / 22-26 AWG.
This text is machine translated.
This text is machine translated.
Features
- Completely without facet (cut completely flush)Cutting value soft/medium/hard/piano Ø in mm: 0.8/0/0/0Head width 10 mmLength of cut: 8 mmMaterial tool steel (HRC 56-58)Gunmetal finishESD handle black 10^6 - 10^9 OhmTotal length 135 mm.Weight 70 g.
What kind of Cable Strippers are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
€ 51.99*
