Bessey GM16Z-2K Clamp Span width (max.):160 mm Product size (length): 235 mm Nosing length:80 mm

A Bessey G-clamp with a red handle. It holds workpieces firmly in place. Visible parts: spindle, handle, clamping arm.

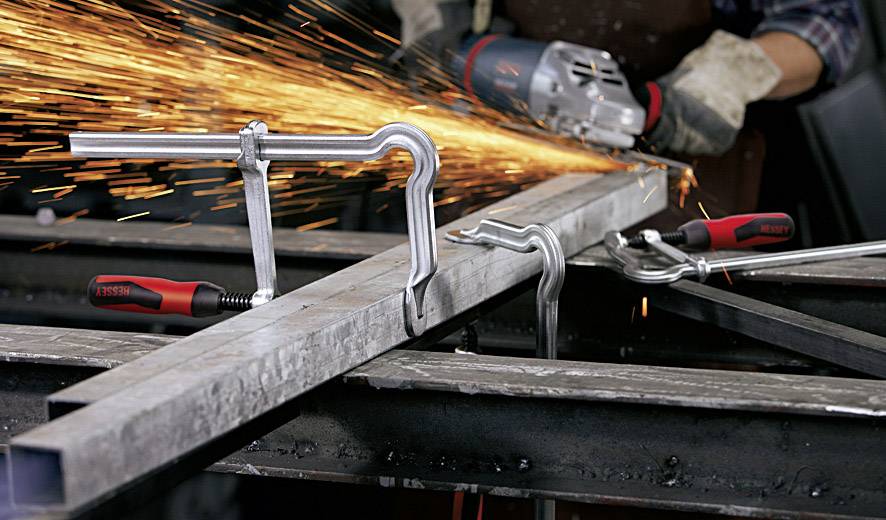

A person is working with an angle grinder on a piece of metal, with sparks flying into the air. Clamps are holding the metal stable.

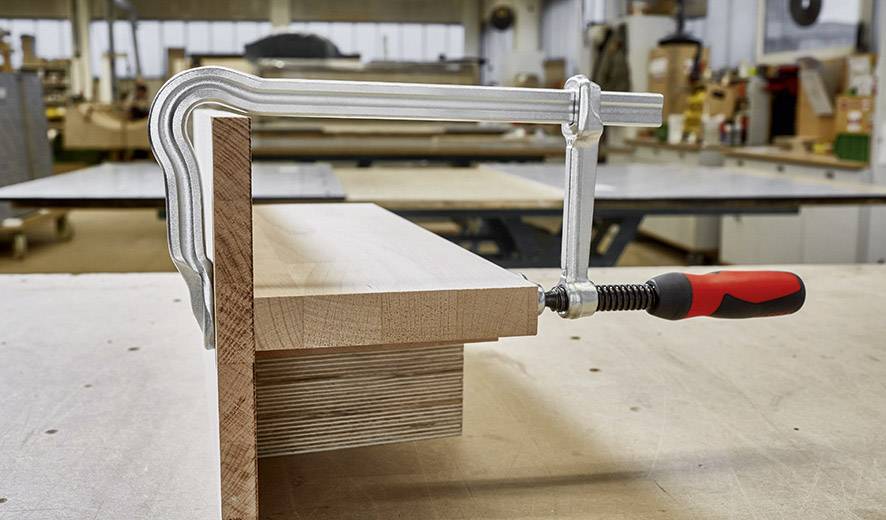

A G-clamp is holding two wooden boards together in a workshop environment. Tools and wooden furniture are visible in the background.

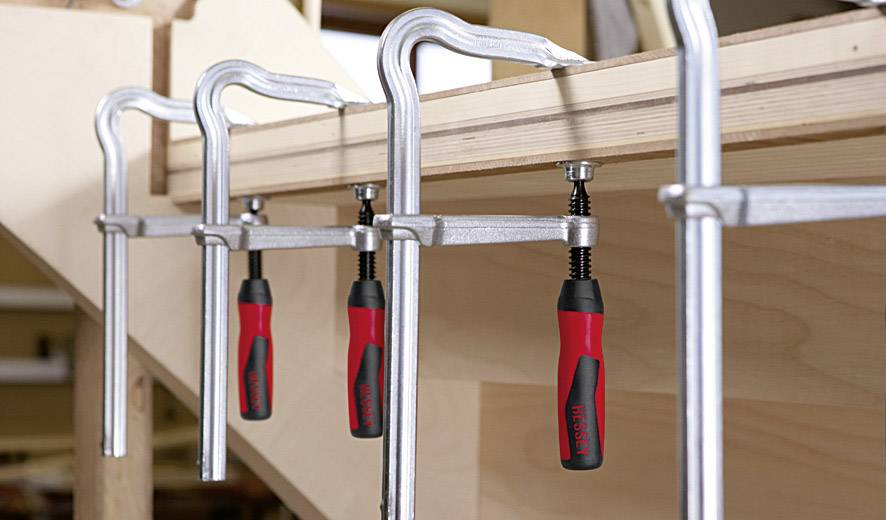

Several metal clamps secure wooden boards to a workbench. They have red handles and are used for carpentry work.

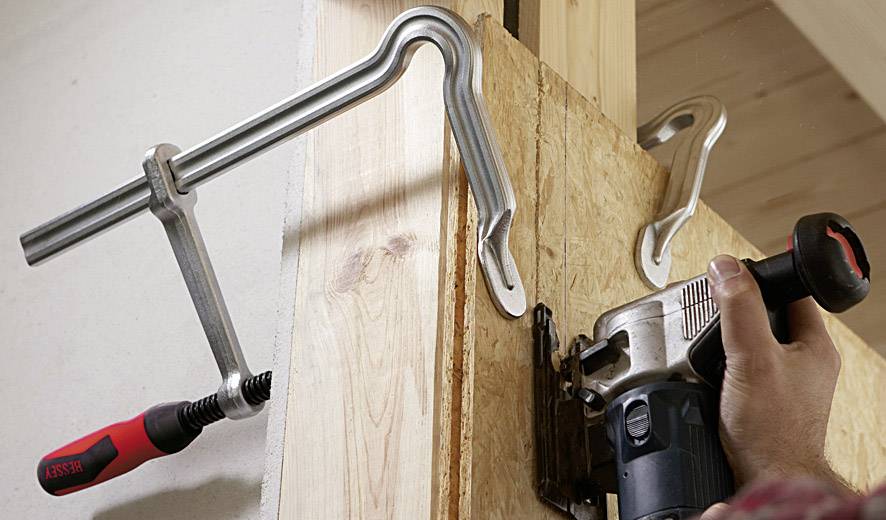

A person is using a router to create recesses in a wooden board that is secured to a frame with G-clamps.

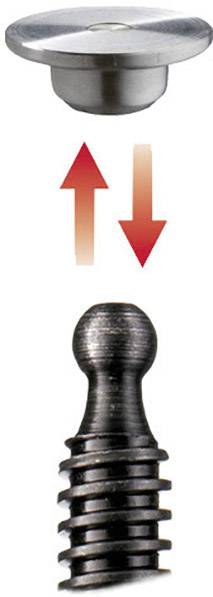

Metal screw and threaded insert with arrows; showing insertion and fastening from top to bottom.

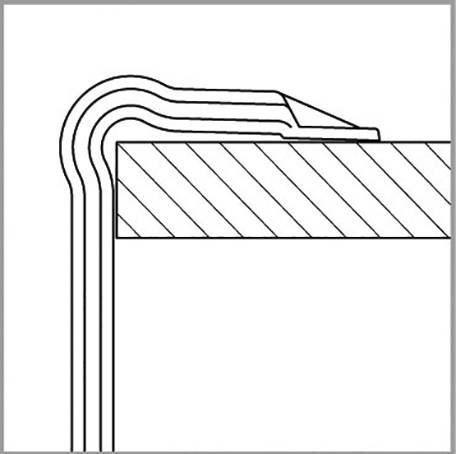

Cross-section of an L-shaped folding technique with three layers. The top layer is folded 90 degrees to cover the edge.
1/7
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

OMEGA 5117 GMT-2K 160/80

  • Clamping force up to 5,000 N
  • High-quality 2-component plastic handle
  • Pressure plates can be replaced with no need for tools
  • Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping
  • Universally applicable within the fields of wood

Technical specifications

  • Rail Profile width: 16 mm
  • rail profile thickness: 7.5 mm
Product type

Clamp

Span width (max.)

160 mm

Nosing

80 mm

Length

235 mm

Weight

570 g

Content

1 pc(s)

Width

120 mm

Tension

5000 N

Height

30 mm

Clamping range

160 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 814862 Bessey GM16Z-2K Clamp Span width (max.):160 mm Product size (length): 235 mm Nosing length:80 mm

Description

The clamping force of up to 5000 N. high-quality 2-component plastic handle. Manually changeable pressure discs. Tempered sliding and fixed bracket for elastic and elastic tension Universal application in wood and metal processing.
