BIGTREETECH Carrier board PI4B Adapter 1030000103
EAN:
Part number:
Item no:
Highlights & Details

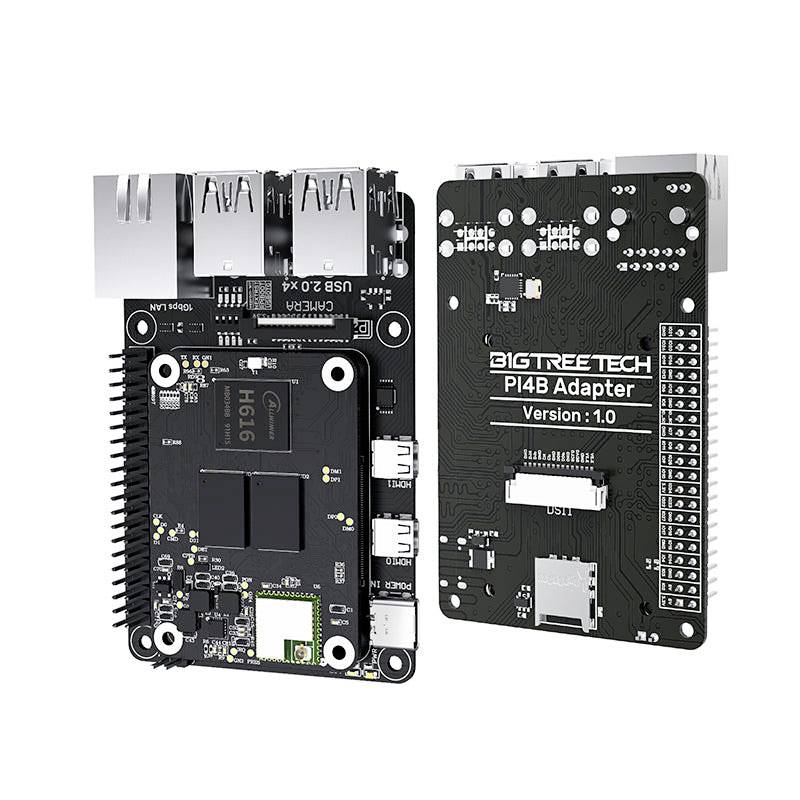

BIGTREETECH PI4B Adapter V1.0 for CM4 or CB1
- Uses the board dimensions of the Raspberry Pi 4B with the same mounting holes.
- Supports different versions of CM4 modules
- Has a Gigabit Ethernet interface, HDMI interface, HDMITM interface, CAM interface, CSI interface
- Equipped with ESD protection at the USB and network interfaces
- 40-pin double-row pin strip with the same function as the Raspberry Pi
- USB Type-C interface that can be used to write the CM4 with eMMC
Technical specifications
- Type
Carrier board
- Product type
Carrier board
- Width
85 mm
- Height
29 mm
- Depth
54 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3788529 BIGTREETECH Carrier board PI4B Adapter 1030000103
Description
Full Raspberry Pi 4 Power - Maximum flexibility!

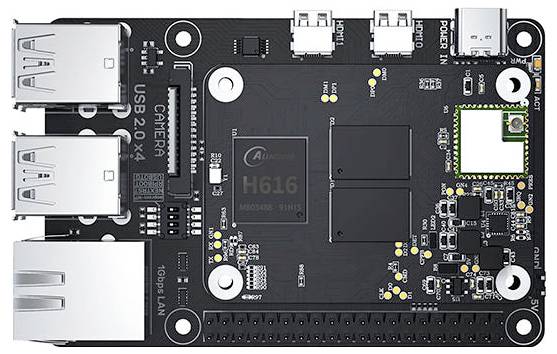

Get your computing module ready for everyday life: With the BIGTREETECH PI4B Adapter V1.0, you can quickly convert the Raspberry Pi Compute Module 4 (CM4) or the BIGTREETECH CB1 into a full-fledged Raspberry Pi 4.
This text is machine translated.
Get your computing module ready for everyday life: With the BIGTREETECH PI4B Adapter V1.0, you can quickly convert the Raspberry Pi Compute Module 4 (CM4) or the BIGTREETECH CB1 into a full-fledged Raspberry Pi 4.
This text is machine translated.
Features
- Form factor: Exactly like the Raspberry Pi 4B (85 x 56 mm).
- Video 2 x micro-HDMI (Dual display support).USB:
- 4 x USB 2.0 ports.
- Network:1 x Gigabit-Ethernet (RJ45).
- Power and data 1 x USB type C (power supply & eMMC flashing).

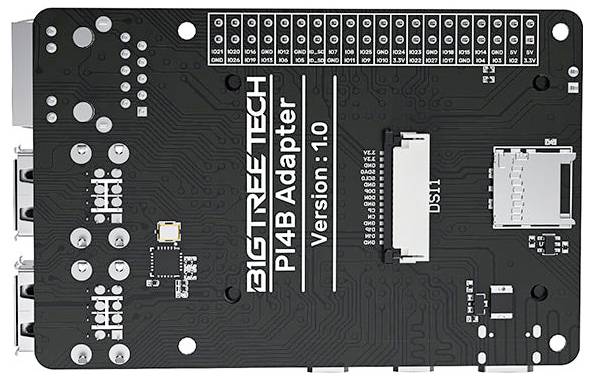

- Stores 1 x Micro SD card slot (under side)
- Extension: Standard 40-pin GPIO bar.
- 1 x CSI & 1 x DSI display/camera (can only be used with the original CM4).
- Cooling: 1 x dedicated 5V fan connector.
- Protection: Built-in ESD protection to USB and network ports
Scope of delivery
- 1 x BIGTRETECH PI4B Adapter V1.0 conducting board
Hints
No CPU: A Raspberry Pi Compute Module 4 (CM4) or BIGTREETECH CB1 is not included in the standard scope of delivery
No accessories: Power supply (USB-C), connecting cable (Micro-HDMI) or cooling element are not included as standard.
A micro-SD card for the operating system must be provided separately.
