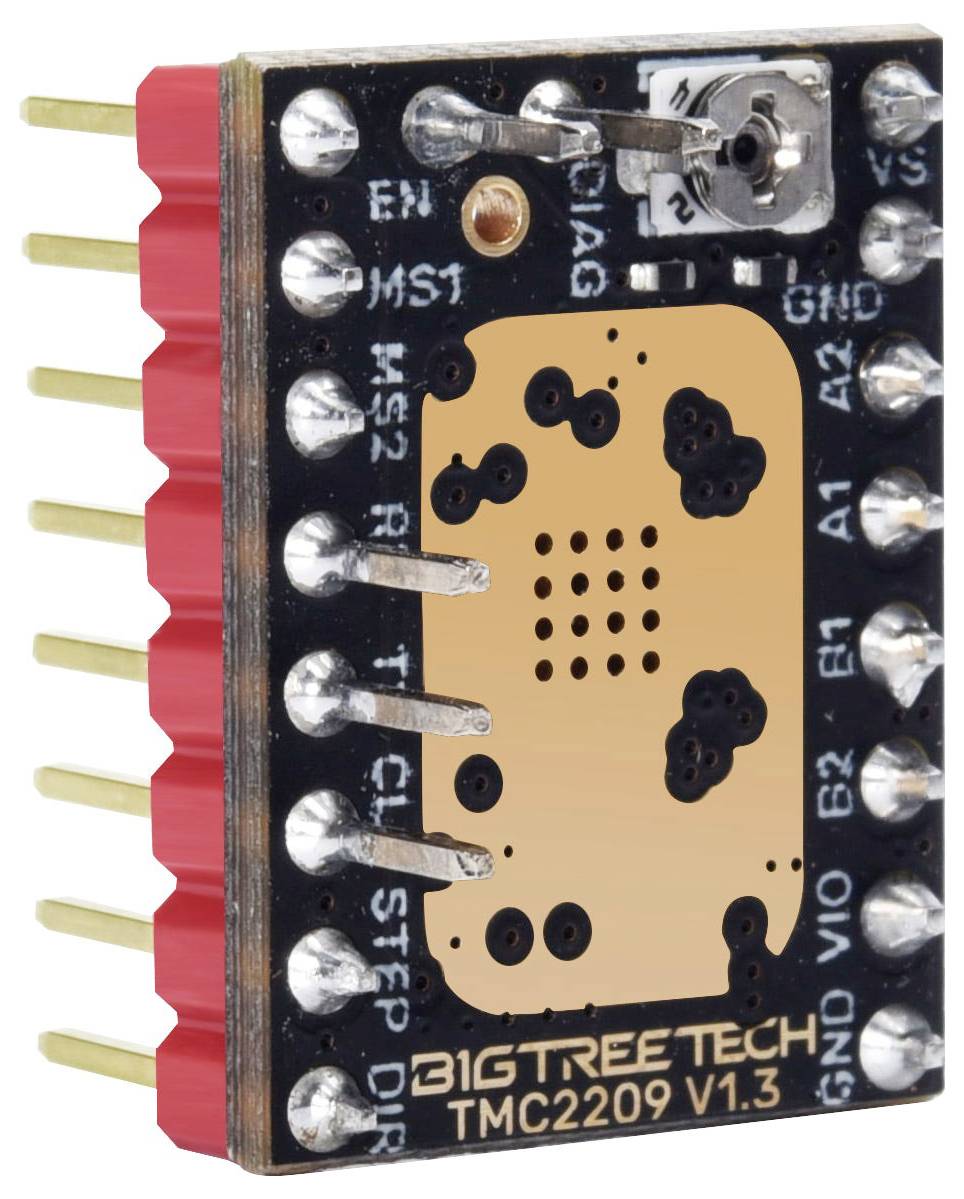

BIGTREETECH Motor driver Stepper TMC2209 V1.3 1050000057

The Big Tree Tech TMC 2209 is an extremely quiet motor driver for two-phase stepper motors.

Its permanent current consumption is 2 A and peak current is 2.8 A.
As compared to the TMC2208, the drive current of this IC is improved by 0.6 A to 0.8 A, it also offers an improved monitoring of the stepper motor.

Operating voltage : 4.75V - 28V DC

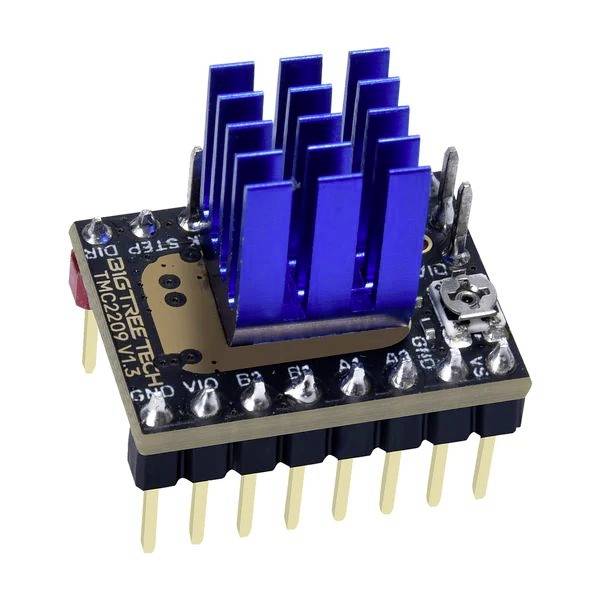

Delivery scope: TMC 2209 V1.3 incl. cooling body

This IC used some patented technologies:
SpreadCycle™ (high-dynamic motor control)
StealthChop2™ (ultra-quiet technology - widely used in 3D printing)
MicroPlayer™ (Micro Step Control) - 256 microsteps can be provided through the flexible MicroPlayer interpolation.
Stall Guard4™ If the engine is blocked or not moving smoothly, a signal is generated that can be evaluated.
CoolStep™ The current dynamic control system can save 75% energy.

The design of this driver is compatible with existing 3D printers and reduces additional investment.
The module has a standard step/dir interface that is easy to operate .
Product parameters

Dimensions：15.24mm * 20.32mm
OPERATING VOLTAGE（VM）：4.75V--28V DC
Peak current：2.8A
Current consumption Continuous operation：2A
Micro steps：2、4、8（16、can be divided into 256 parts）
Max microsteps：256
Operating modes： STEP/DIR or UART
